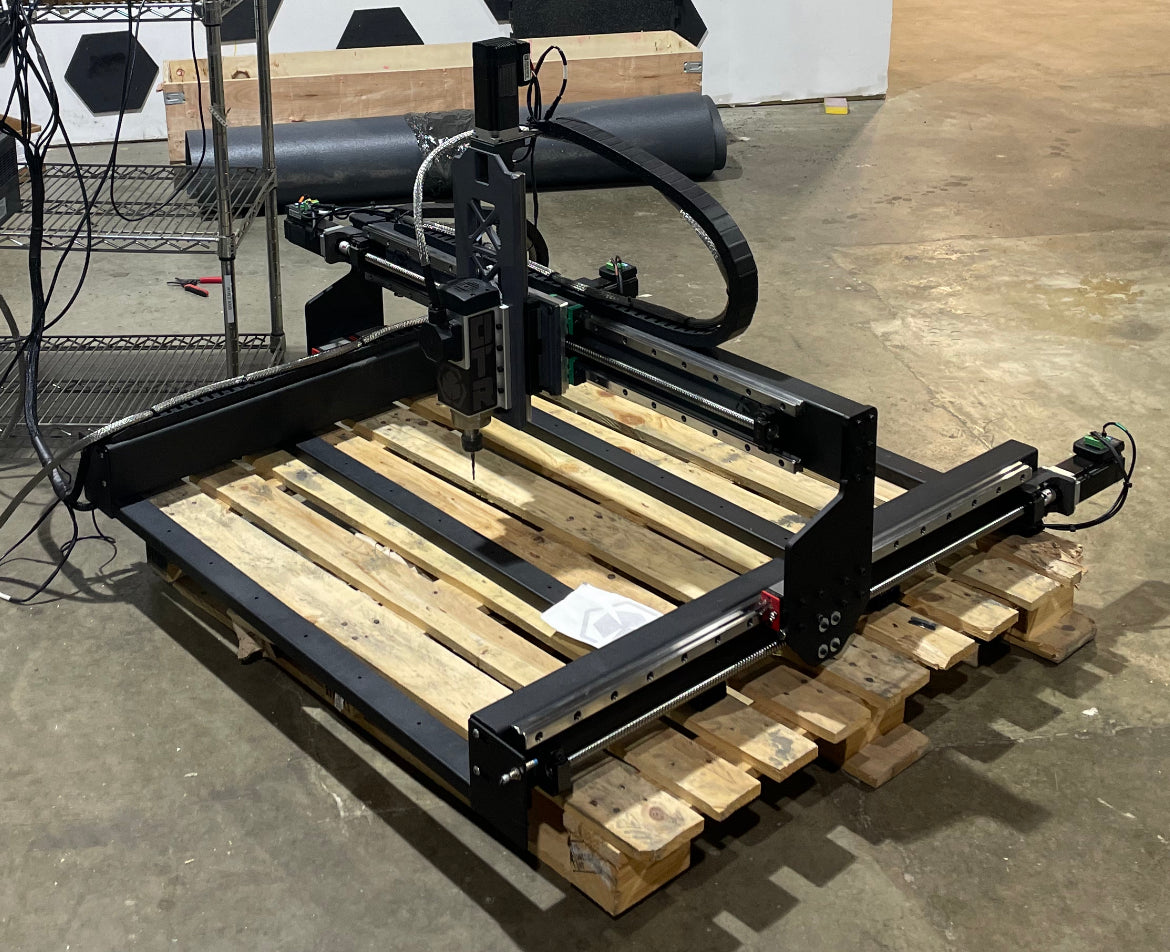

RTR Kit
Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.
RTR PRO Series
Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.
DTR Series
Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.

Introducing the new CNC Router line from Spark Robotic: the RTR-Kit, the RTR-PRO & the DTR!

Known for making well-built machines at affordable prices, Spark Robotic makes all its products in America and supplies them directly to the consumer.

At base, our RTR Routers share a proven design foundation with our light industrial XR Plasma Series. However, the RTR Routers also integrate several key features that we wanted to see in an industry-leading router platform. Our goal was to design and engineer a CNC router that would work all day long with precision, speed, and reliability, all without breaking the bank. The result is the RTR Series of CNC Routers that outperform the competition while saving you $5,000 to $20,000 when compared to other router companies.

After more than a year of highly focused prototyping, research, and testing, the RTR Routers have proven accuracy in cutting wood, foam, composites, and non-ferrous metals (i.e., aluminum and brass). You can find more info below on what the RTR Routers can do, including how they can improve your workflow and bring value to your shop.

RTR-44 ROUTER TABLE
Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.
Shop Now
RTR-84 ROUTER TABLE
Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.
Shop Now
RTR-51 ROUTER TABLE
Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.
Shop Now

The Table

• Modular design that, while incredibly rigid, is still simple enough that you can assemble the base table in under 30 minutes.

• Laser-cut steel tubing with oversized "tab and slot" plates welded on each end. These plates make for large, flat mating surfaces that join together perfectly, thus allowing for a massive amount of clamping force.

• Laser-cut steel tubes are powder coated (in-house) to make sure they're perfectly aligned.

• Unlike many of our competitors, we use American-made steel in the structural components of our tables instead of extruded aluminum.

Drive System

• The RTR Routers use HG-23 linear bearings, as well as a rack-and-pinion drive with gear reductions on the X and Y motors for motion.

• The Z axis uses a 16mm ball screw for maximum rigidity.

• Our Z axis is reverse-mounted to keep dust and debris off the ball screw and bearings, as well as to maintain maximum rigidity near the bit--exactly where you want it.

2.2kw (3HP) Spindle and VFD

• The RTR Routers use an air-cooled 3 horsepower spindle controlled by a VFD (variable frequency drive) with an RPM range of 8k to 24k.

• We tested air-cooled vs water-cooled and found that air-cooled heat dissipation was as good, if not better, than water-cooled at 8000+ RPM. This allows our machines to operate without a liquid cooling system, meaning you don't need to worry about leaks, evaporation, maintenance, or mold growing in the spindle.

• The spindle uses ER-20 to hold cutters up to 1/2" and comes with a 14-piece collet set from 1/2" all the way down to 1/16".

• The VFD is completely controlled by the integrated software. Your g-code will automatically set the spindle RPM, so you won't need to turn the spindle on or off or set the RPM before each cut.

Planet CNC Controller and Software

• We tested over a dozen different software packages and chose Planet CNC because it supported the many different needs of our customers while also being comprehensive, customizable, and user
friendly.

• Planet CNC is capable of 9-axis control with 8 digital outputs and 3 PWM outputs.

High-Power Servo Motors

• The accuracy and speed of high-power, closed-loop servo motors are without comparison. We have run these machines at over 3000 in/min without losing any steps.

• This combination of performance and reliability is what our customers expect from Spark Robotic. On top of all the other design and engineering choices we made, we're excited to be able to feature these servo motors on all of our routers while managing to keep our prices lower than the competition.

Hardware Specs

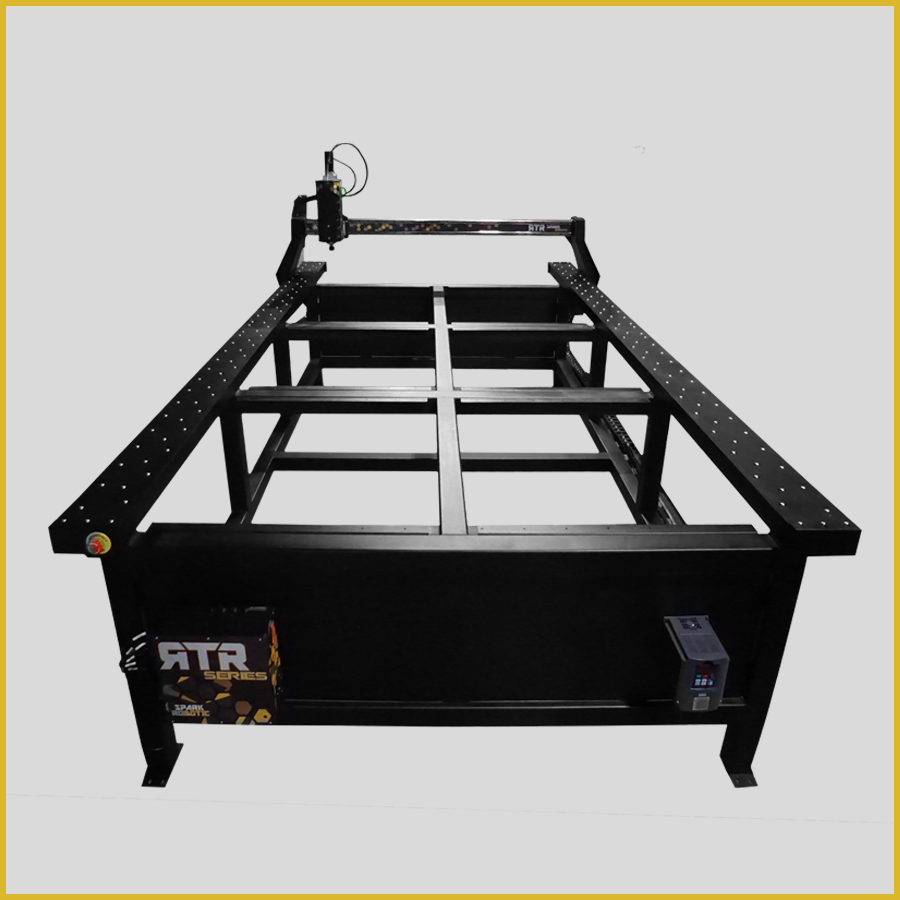

Modular design with a fully-welded gantry and 3 fully-welded leg sections fabricated from American-made, laser-cut steel tubing
60 holes for mounting a table board
Heavy-duty, hardened, precision 23mm linear rails
10 oversized linear bearings
Gear and rack drives on both the X and Y axes
Precision mechanical gear reductions on both the X and Y axes
High-Power Servo motors on all axes
2.2 kw (3HP) spindle with VFD control (110 or 220V)
Laptop included
Automotive-style wiring harness

Additional Specs

Travel and Size:

X-Axis travel: 51"
Y-Axis travel: 99"
Z-Axis travel: 8" (7" work area minus spoil board thickness)
Z Clearance (from table to gantry): 10"
Machine Width (at widest part of the gantry): 73"
Machine Depth: 111"

Spindle

RPM: 8000 - 24000 (+/- 5%)
Power: 2.2kW (220v)
Tooling: ER-20 collets

Feed Rates

Rapid traverse (X/Y/Z): 3000 in/min (software limit set to 500 in/min, but this can be changed by the customer)
Max cutting feed rate (X/Y/Z): 3000 in/min (software limit set to 500 in/min, but this can be changed by the customer)
