AMS-134 8-Pc General Purpose CNC Router Bit Collection, 1/4 Inch Shank

AMS-134 8-Pc General Purpose CNC Router Bit Collection, 1/4 Inch Shank

Regular price $274.30 USD
Regular price Sale price $274.30 USD
Sale Sold out
Shipping calculated at checkout.

Designed specifically for a wide variety of applications. Also perfect for signmaking. Each router bit is manufactured from Amana’s exclusive grade carbide according to stringent quality standards.

Designed for cutting:

  • Aluminum, Brass, Bronze,
    Copper & Titanium
  • Aluminum Composite Material (ACM)
  • Composite
  • Fiberglass
  • Fiberglass PCB Board
  • Graphite
  • MDF/HDF
  • Phenolic Composites
  • Plastic, PVC & Acrylic
  • Plexiglas®
  • Sign Foam, Sign Board & HDU
  • Wood
  • Durabond**

**Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side pre-finished requiring no decoration.

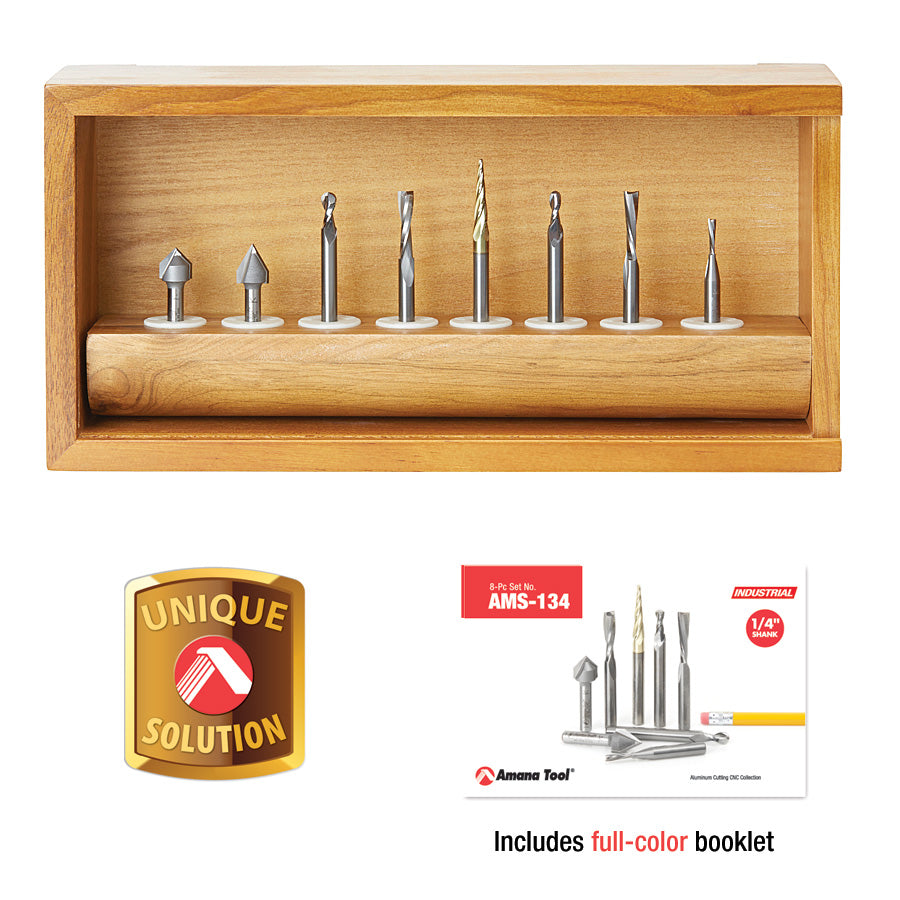

Stored in a solid wood showcase storage box with a Plexiglas® clear lid.

See below for set contents.

Wood Storage Box Dimensions
12" L x 6" W x 3" H

Vectric compatible tool file for AMS-134 available for download, click here.

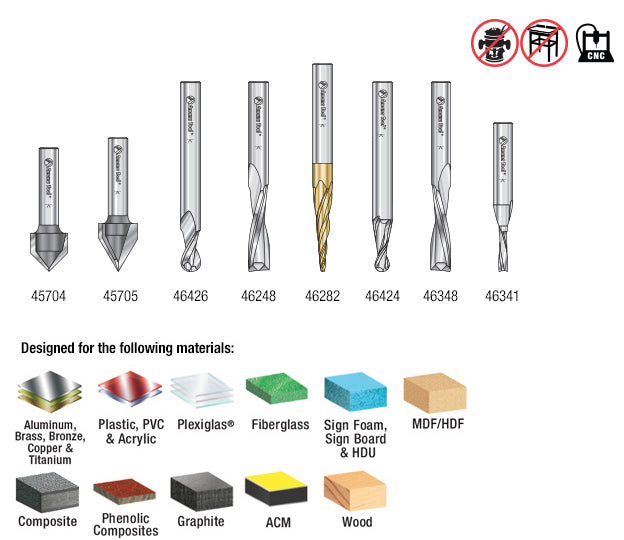

AMS-134 Set Includes:

TOOL NO. PRODUCT NAME QTY
46348 Solid Carbide Spiral Plunge for Solid Wood 1/4 Dia x 1 Inch x 1/4 Shank Down-Cut 1
46341 Solid Carbide Spiral Plunge for Solid Wood 1/8 Dia x 1/2 x 1/4 Inch Shank Down-Cut 1
46424 Solid Carbide Up-Cut Spiral Ball Nose 3/32 Radius x 3/16 Dia x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit 1
46426 Solid Carbide Up-Cut Spiral Ball Nose 1/8 Radius x 1/4 Dia x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit 1
46282 CNC 2D and 3D Carving 5.4 Deg Tapered Angle Ball Tip 1/16 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long x 4 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit 1
46248 Solid Carbide Spiral Plunge for Solid Wood 1/4 Dia x 1 Inch x 1/4 Shank Up-Cut 1
45704 Carbide Tipped V-Groove 90 Deg x 1/2 Dia x 1/4 x 1/4 Inch Shank 1
45705 Carbide Tipped V-Groove 60 Deg x 1/2 Dia x 7/16 x 1/4 Inch Shank 1
