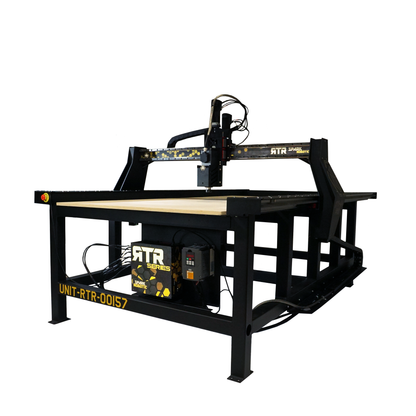

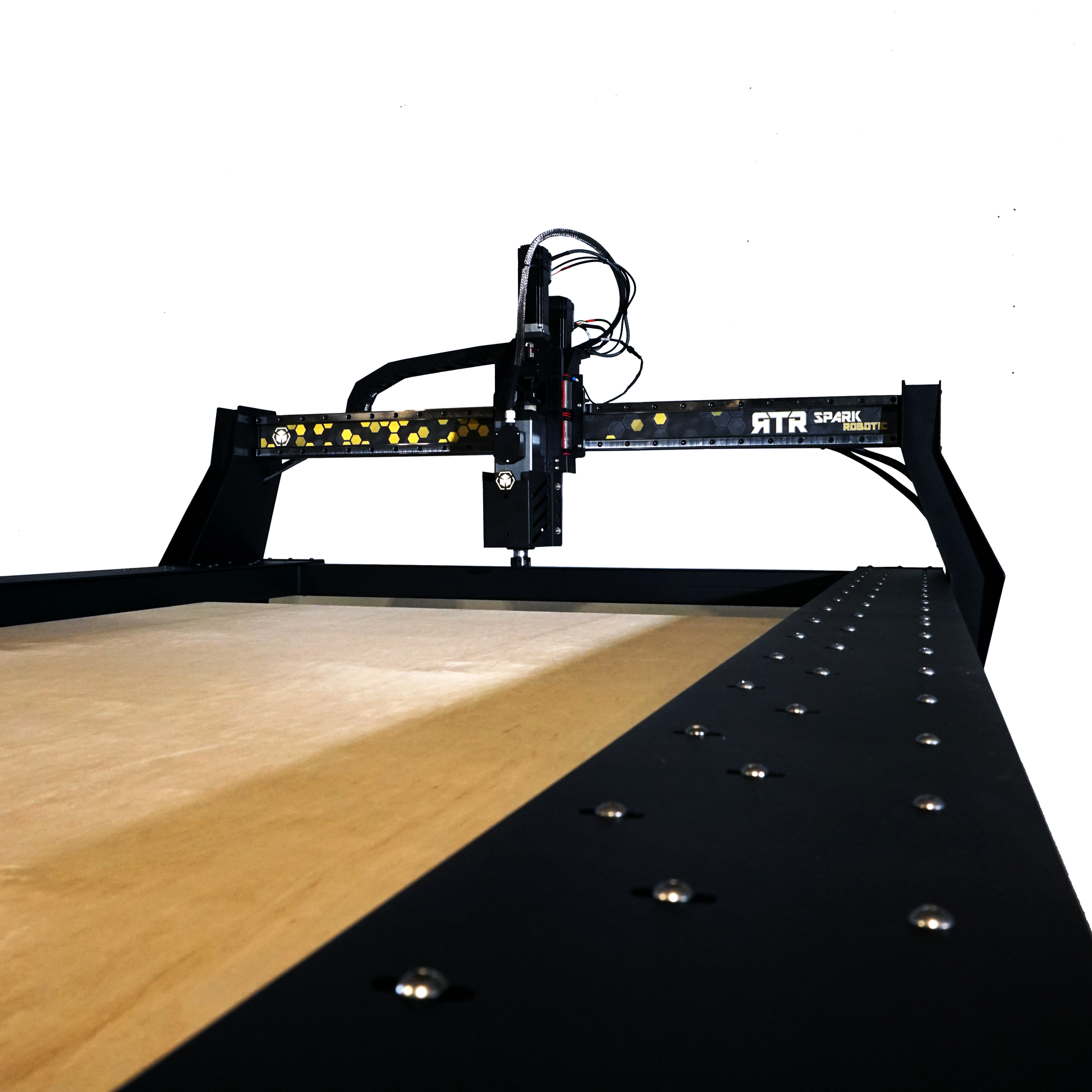

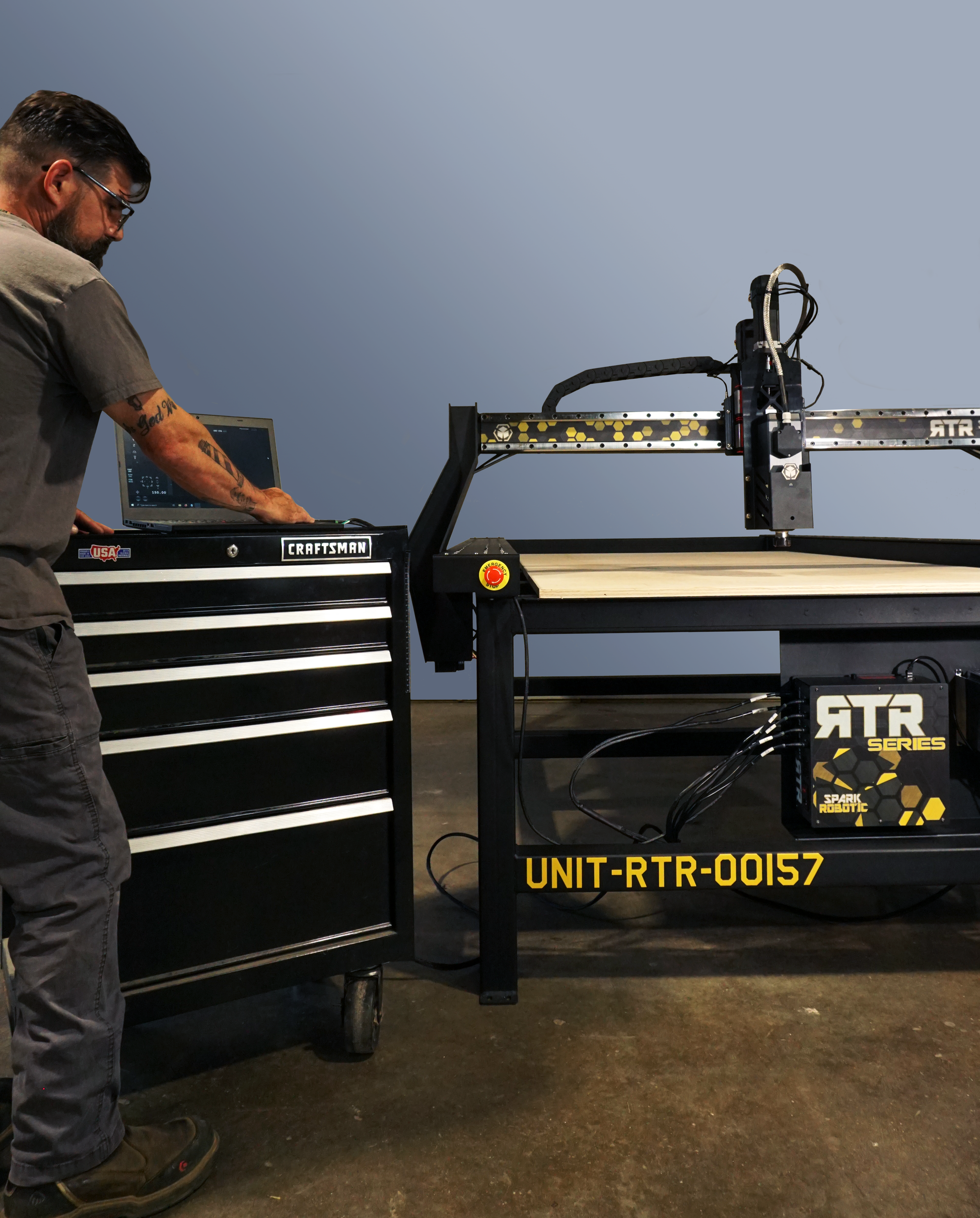

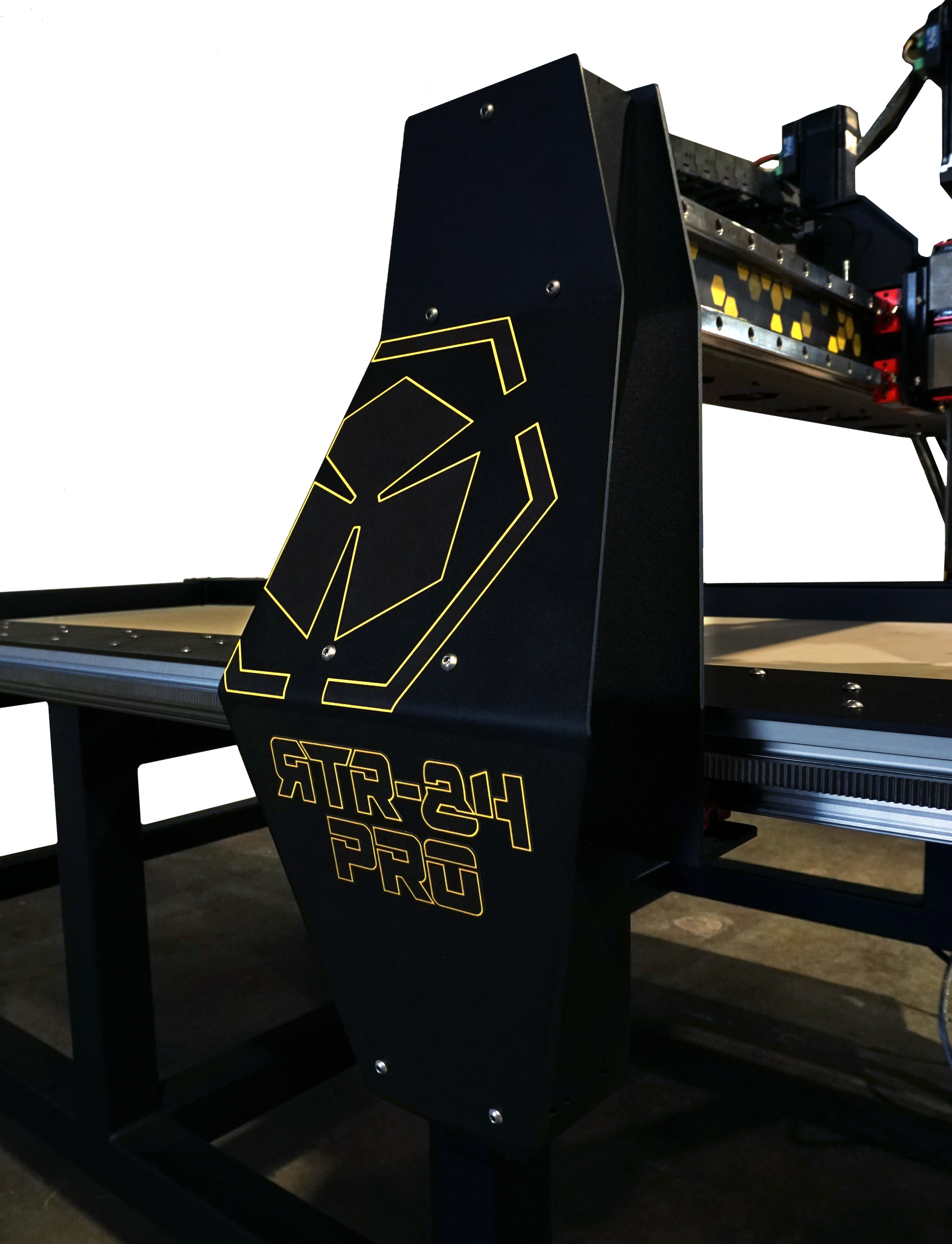

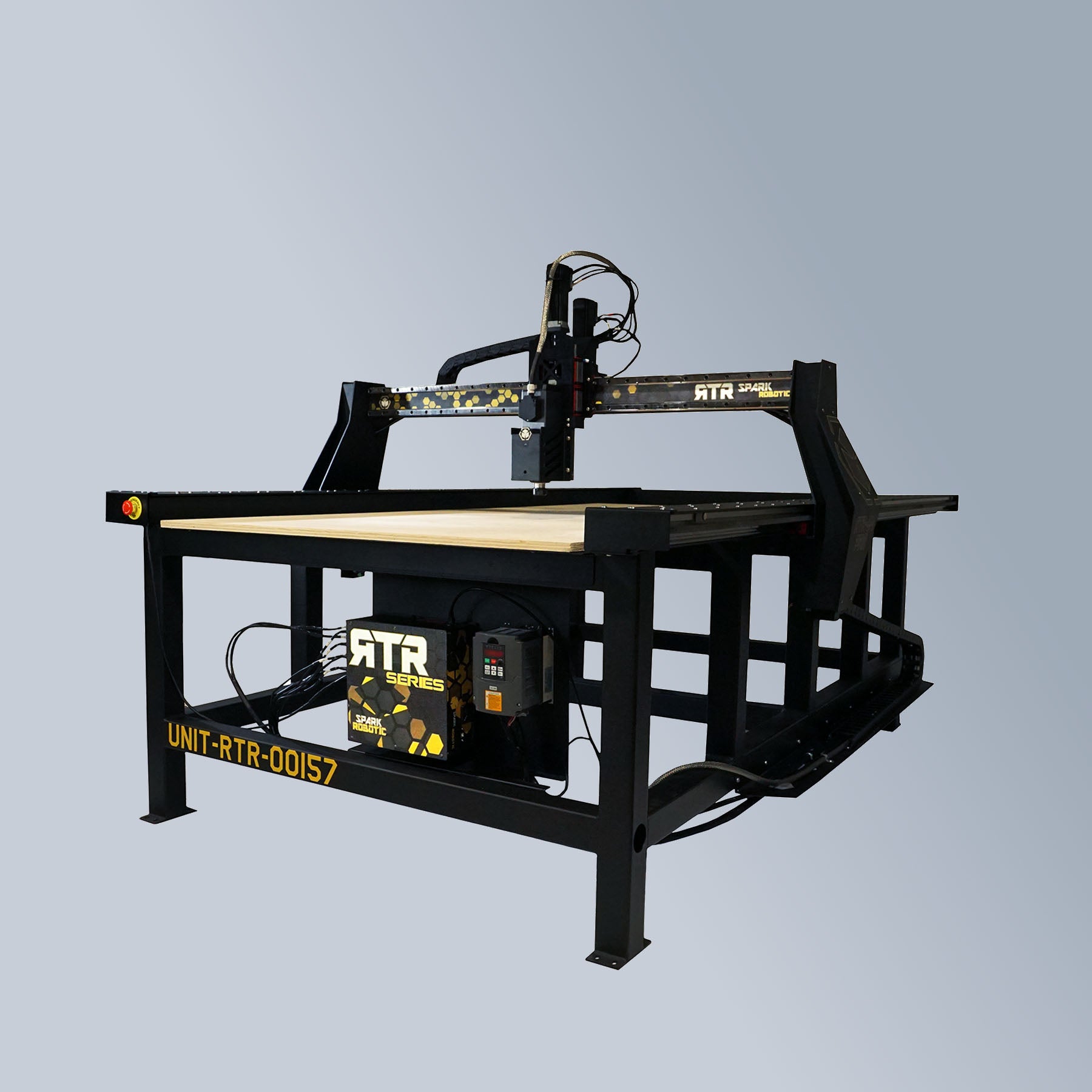

RTR Router Pro

The RTR PRO is Spark Robotic's flagship manual-tool CNC router, built for shops that demand industrial performance, precision, and long-term reliability. Featuring a fully welded steel frame, closed-loop servo technology, and premium motion components, the RTR PRO is engineered to deliver exceptional accuracy across a wide range of routing applications. Whether producing custom projects, cabinetry, signs, composites, or production parts, it provides the rigidity, speed, and repeatability professionals depend on every day.

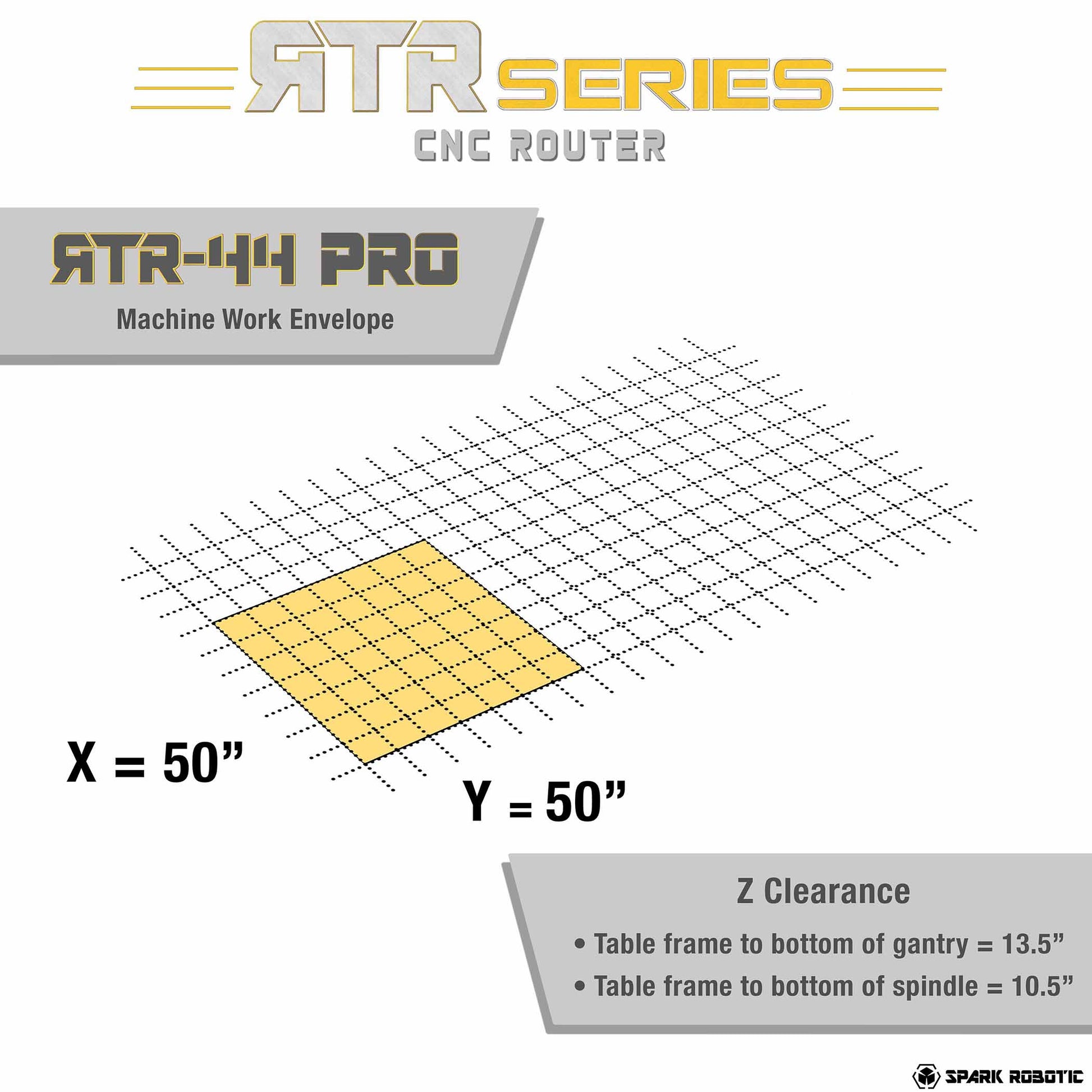

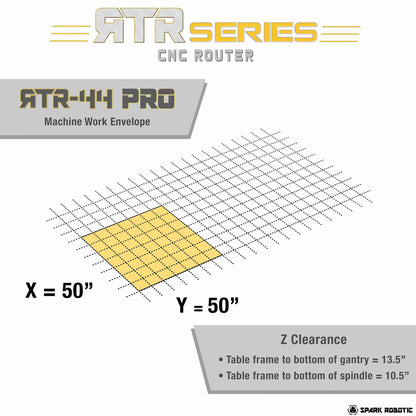

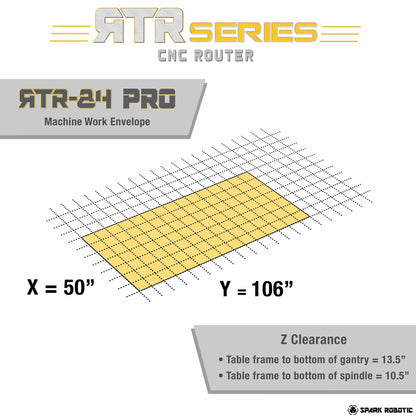

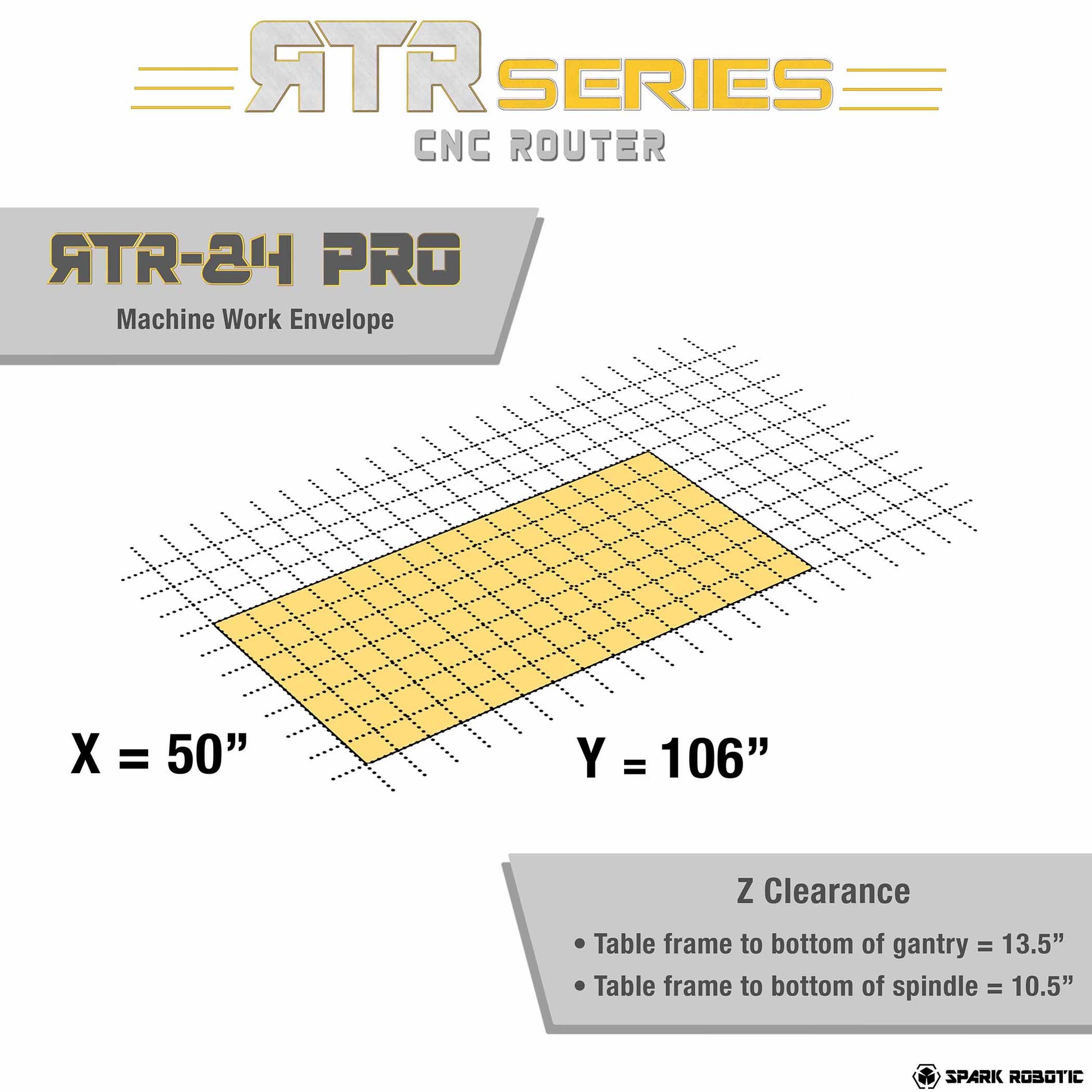

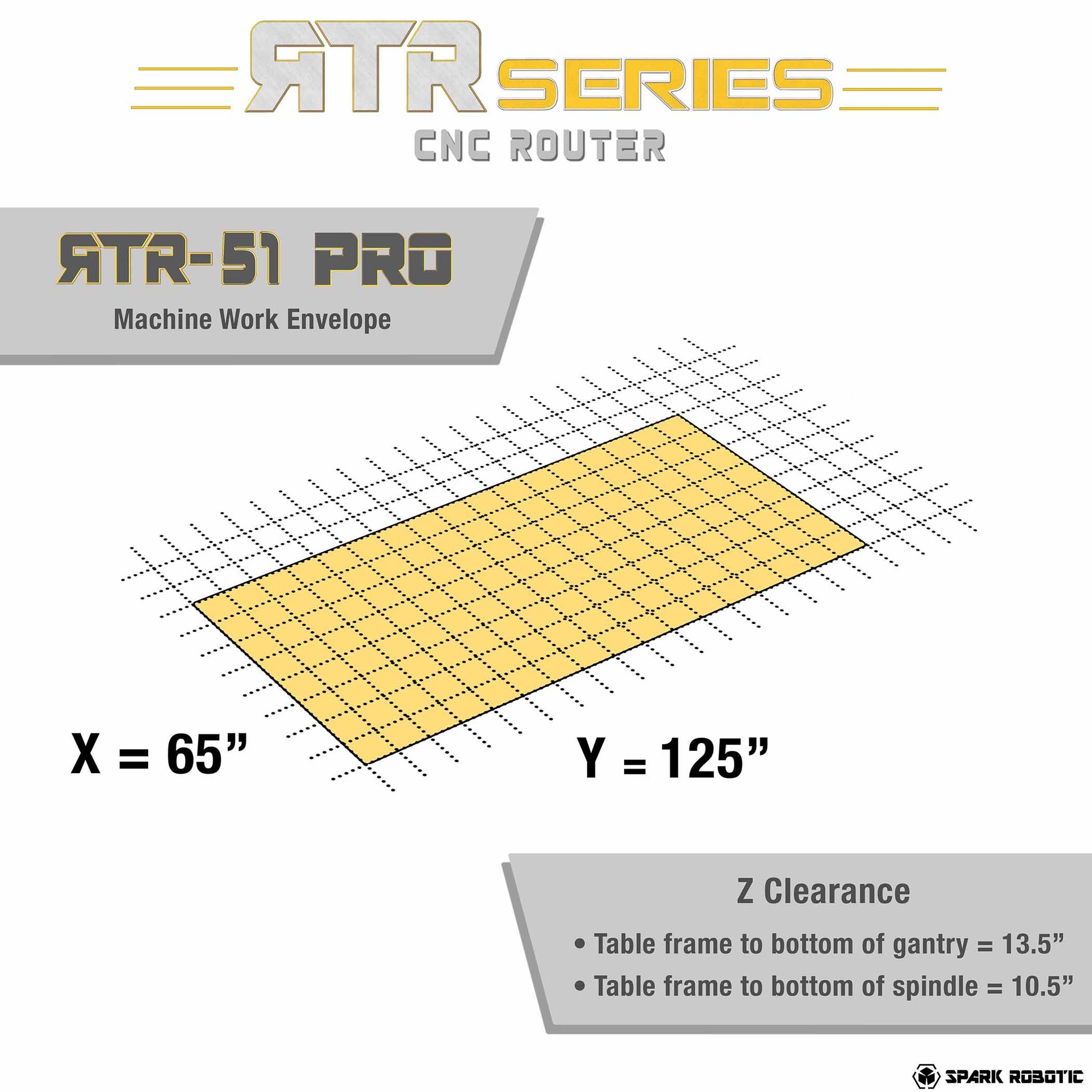

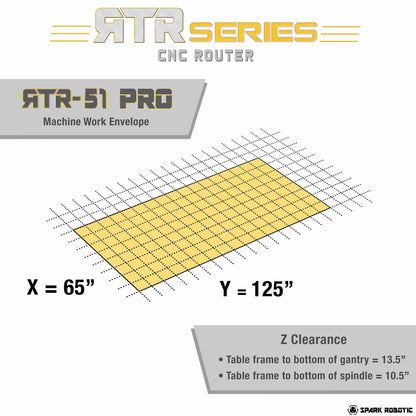

Available Sizes

• 4' × 4'
• 4' × 8'
• 5' × 10'
• 4' × 12'
• 6' × 12'

Standard Features

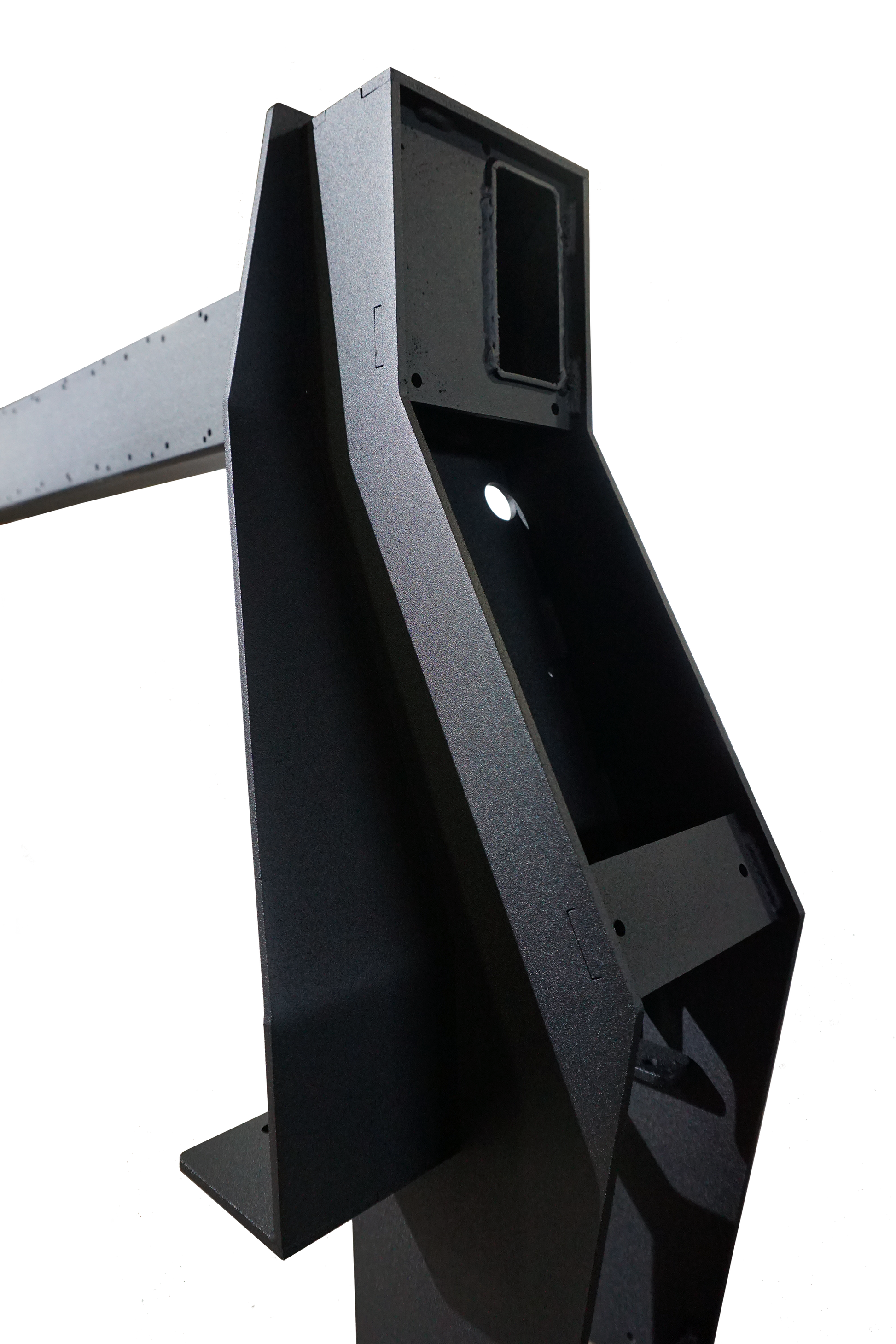

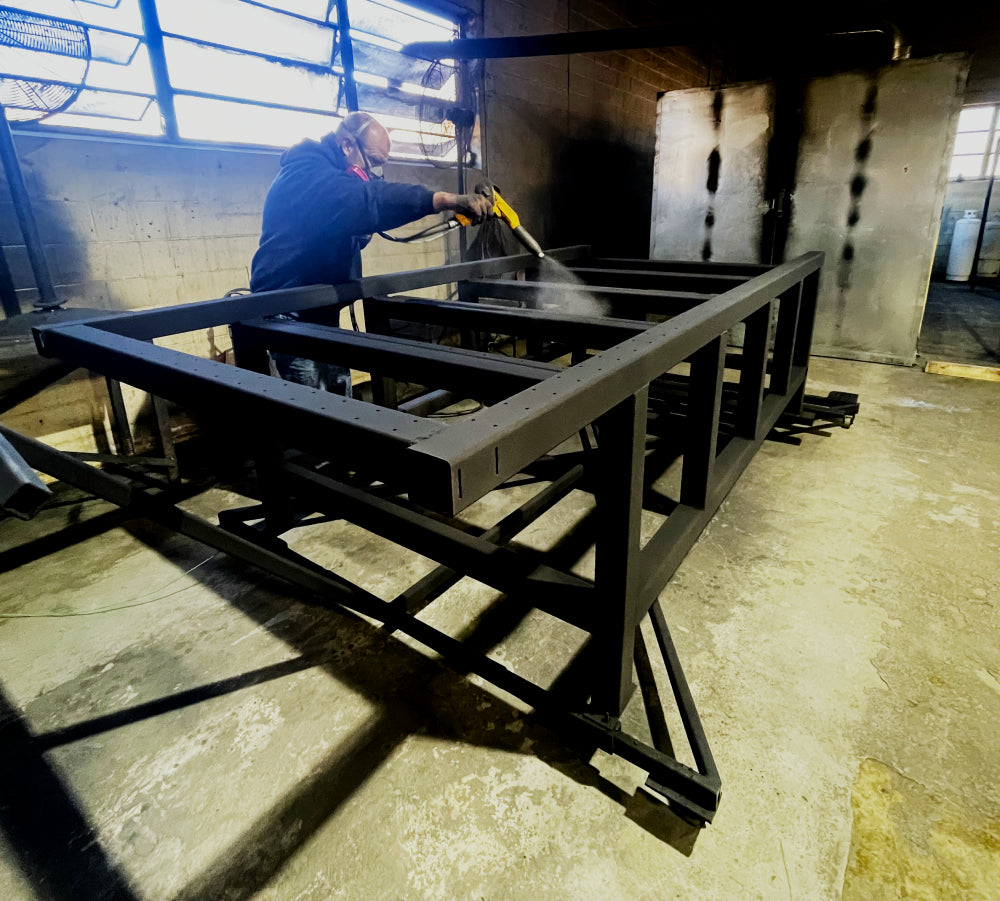

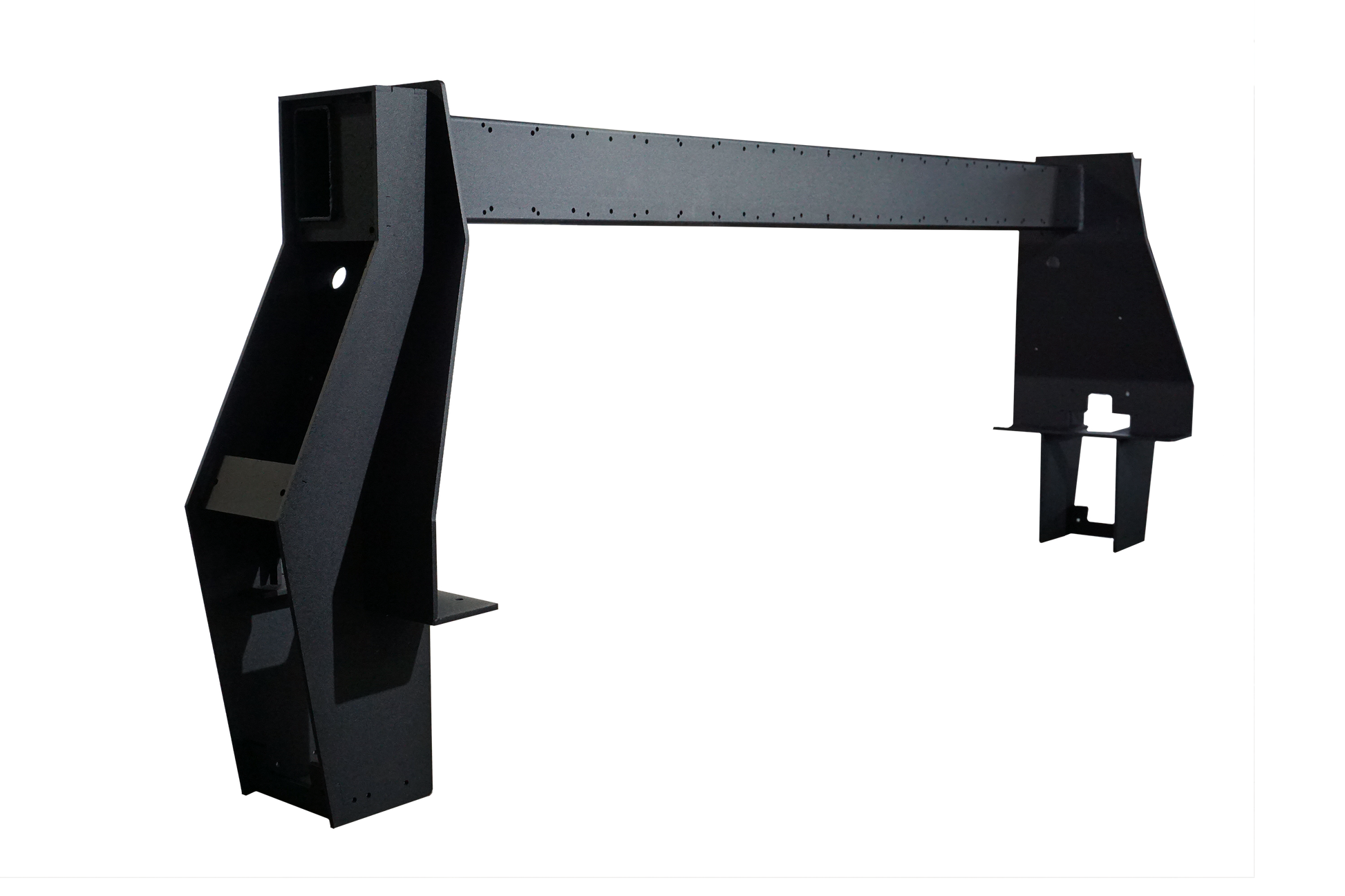

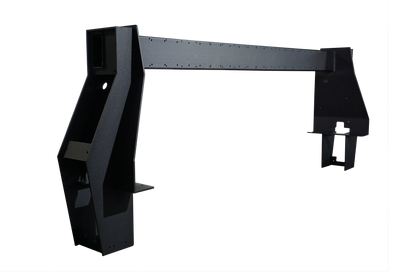

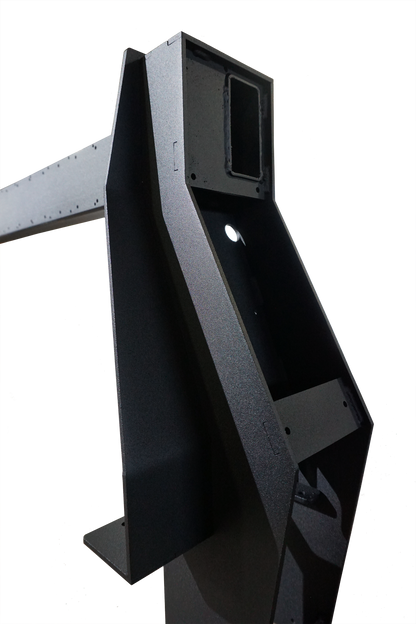

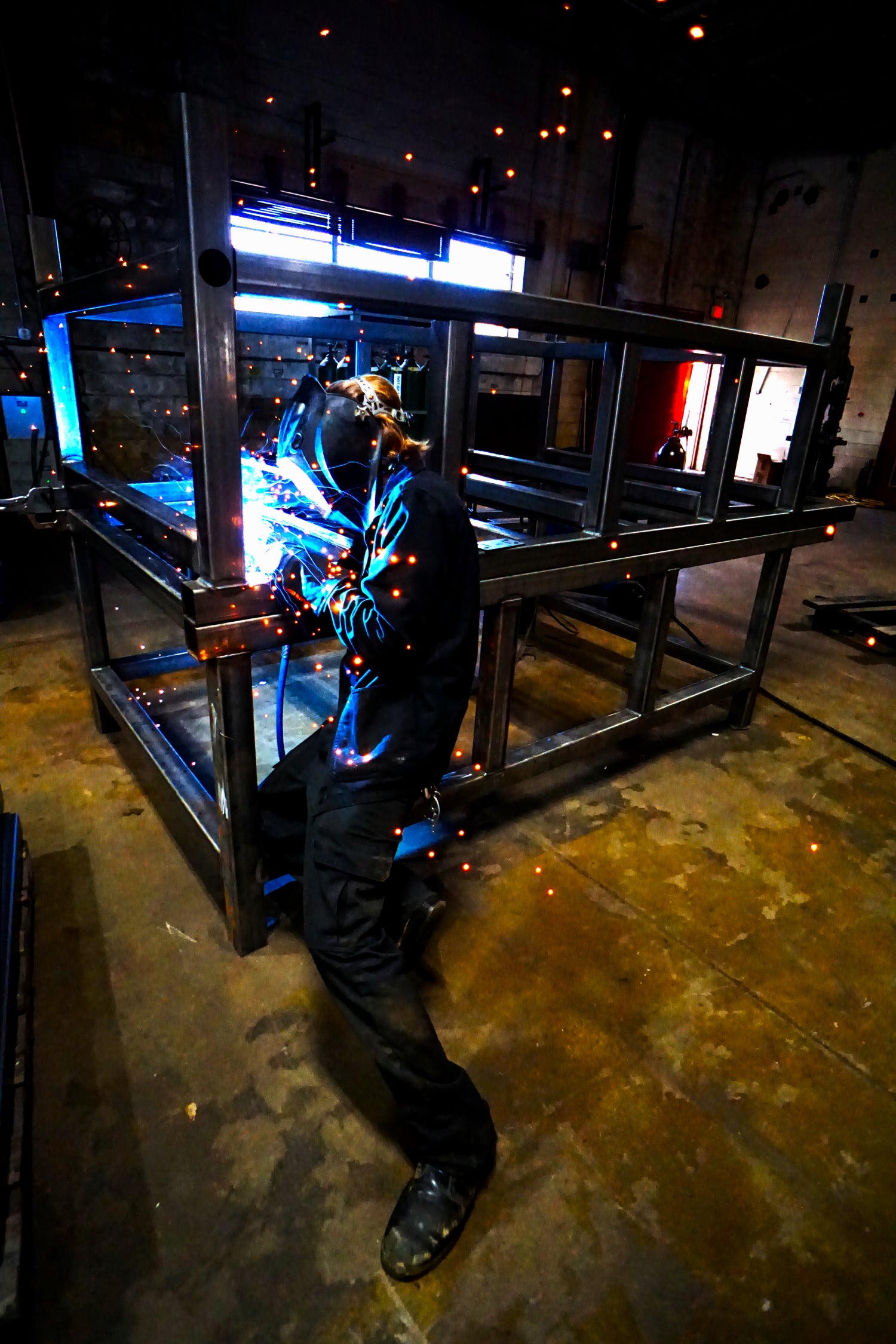

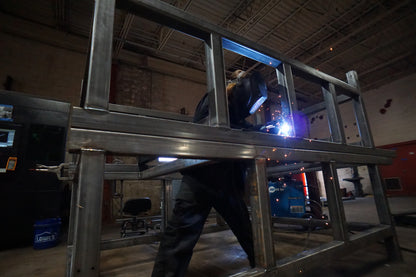

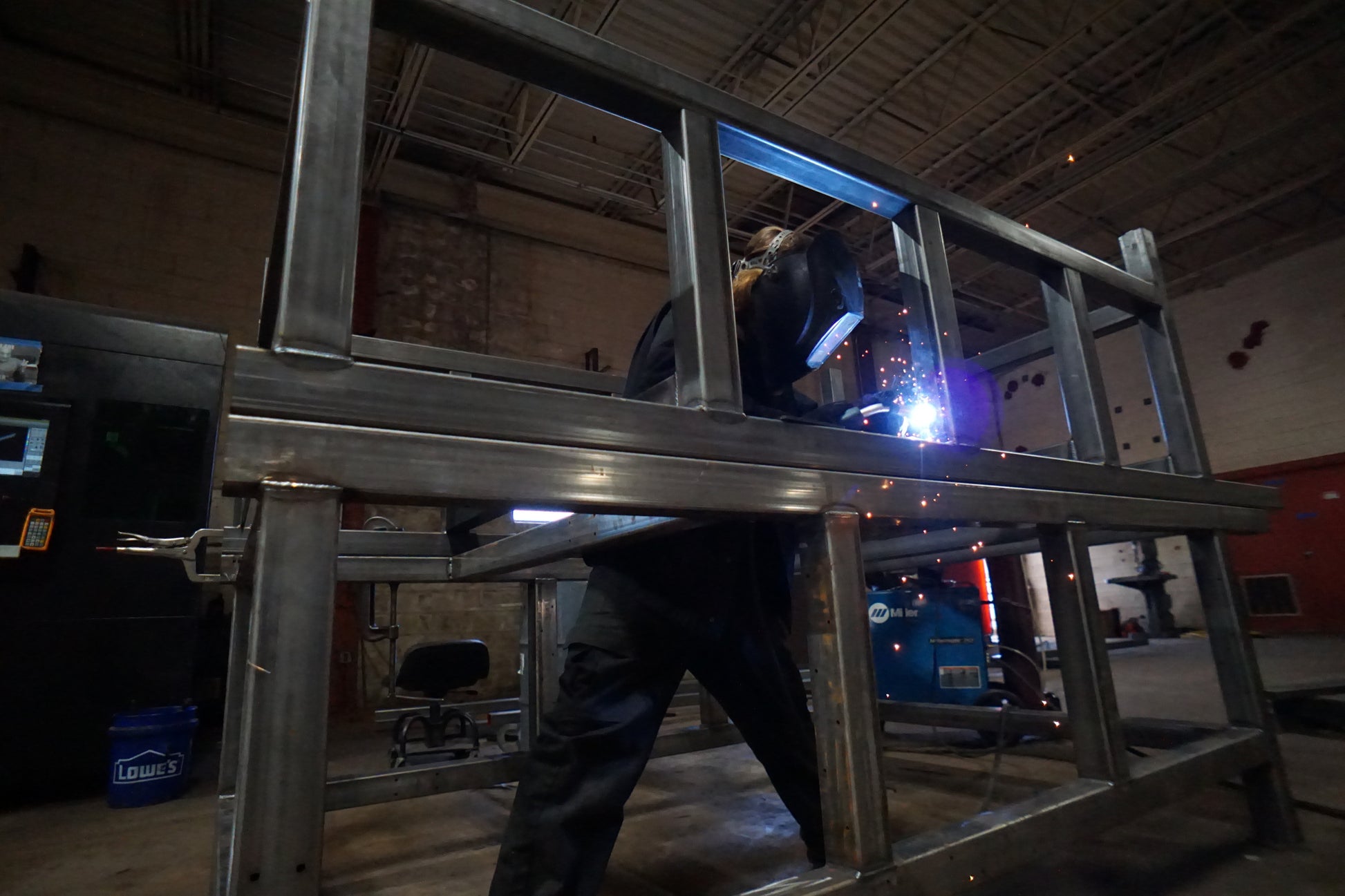

• Fully welded steel frame and gantry
• Closed-loop servo motors with precision planetary gear reduction
• 3 HP (2.2 kW) ER20 spindle
• Optional American-made 5 HP MTC50 ER32 spindle upgrade

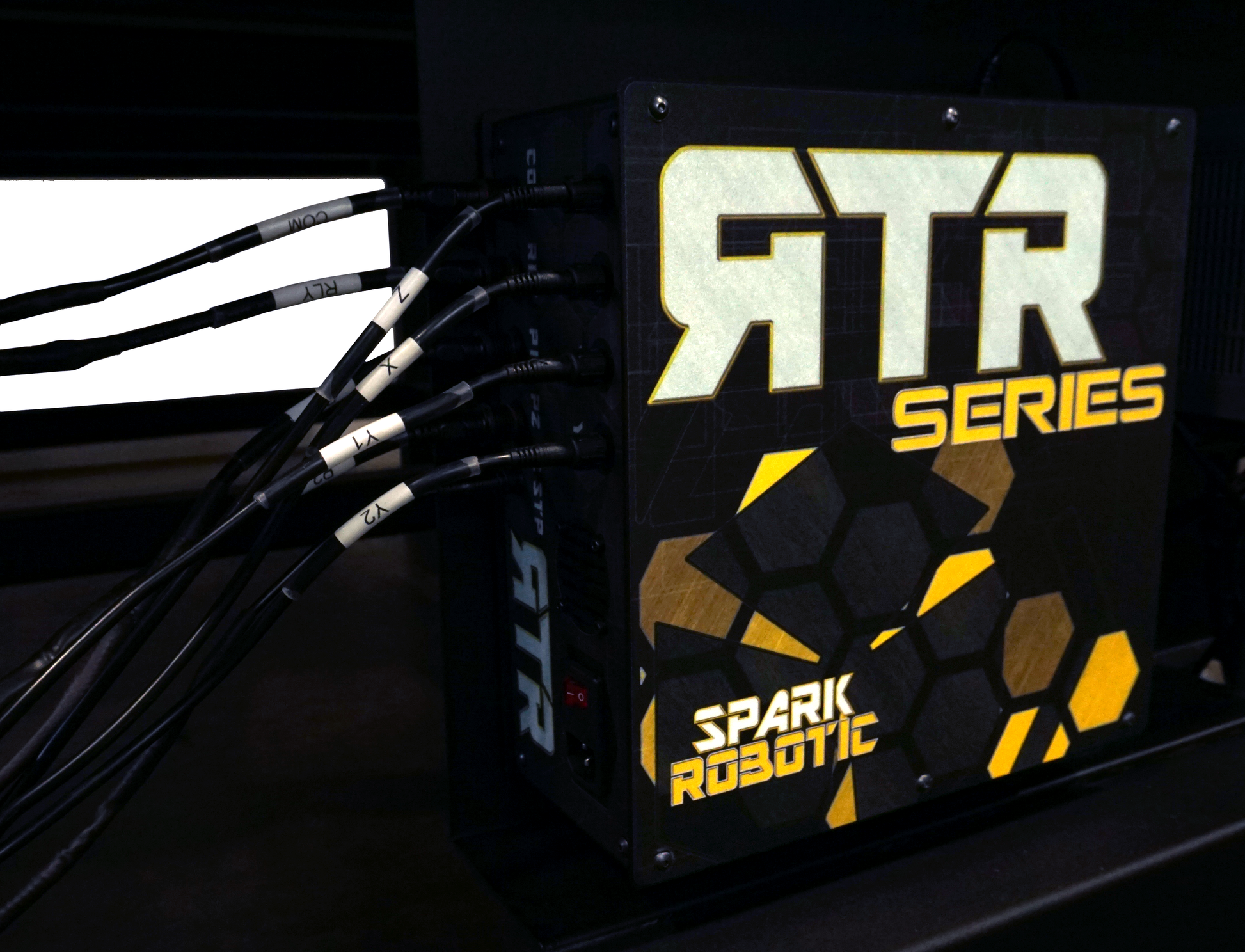

• Fully enclosed electrical control cabinet
• Complimentary Windows 11 control laptop
• PlanetCNC 9-axis control software
• Rack-and-pinion drive system on the X and Y axes
• Spindle LinQ spindle control

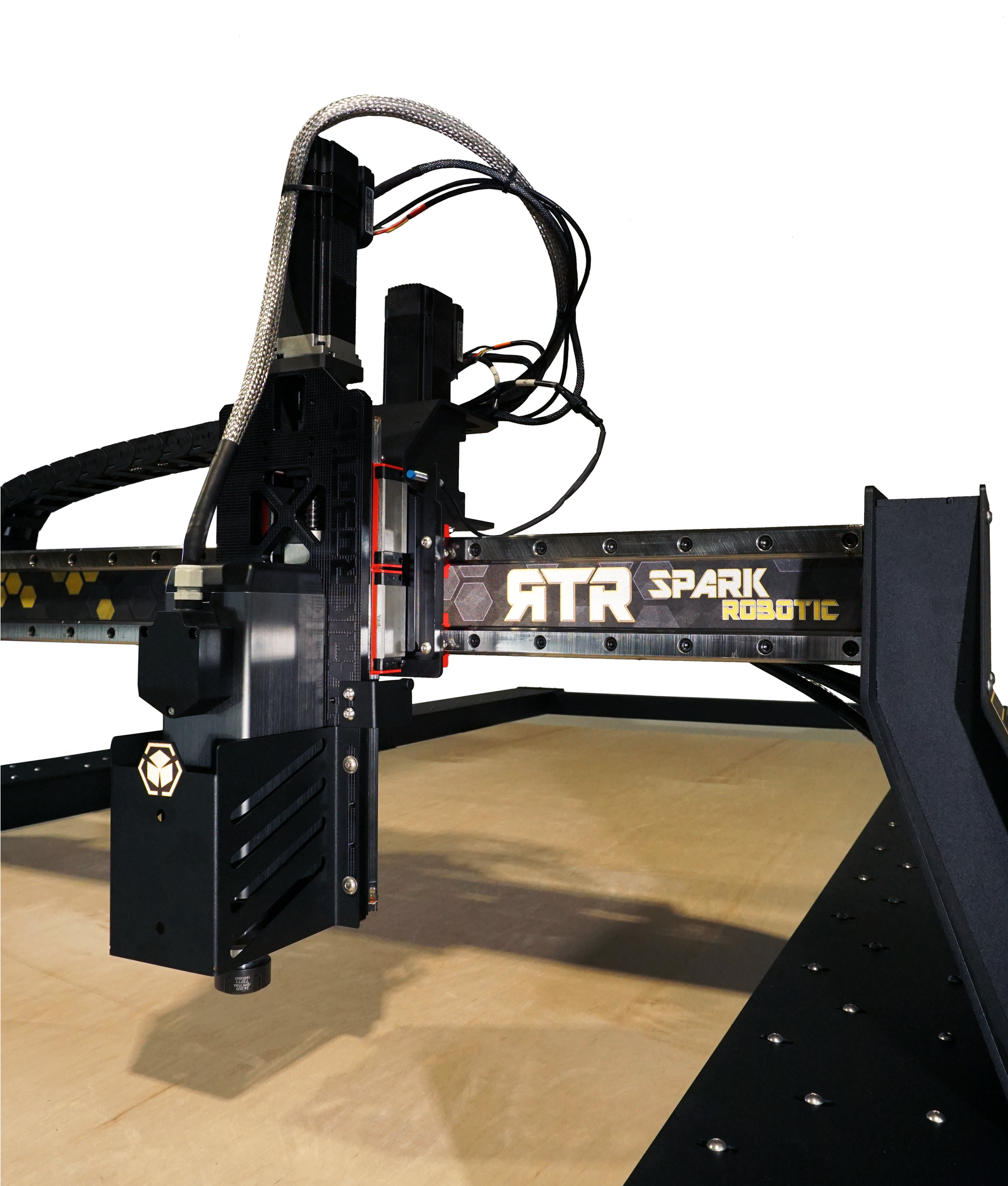

• Extended Z-axis travel with 3 inches of additional clearance compared to the RTR Router Kit
• 1 year electrical warranty
• 2 year mechanical warranty
• 1 year spindle warranty
• Lifetime customer support

Optional Upgrade

• High-performance CAD/CAM laptop for advanced design and programming

Installation Recommendations

For proper operation and routine maintenance, we recommend leaving a minimum of 24 inches of clearance on both sides of the gantry. This provides adequate access for servicing, cleaning, and material handling.

Additional Information

Electrical requirements and compatible router accessories are available on our Customer Portal page.

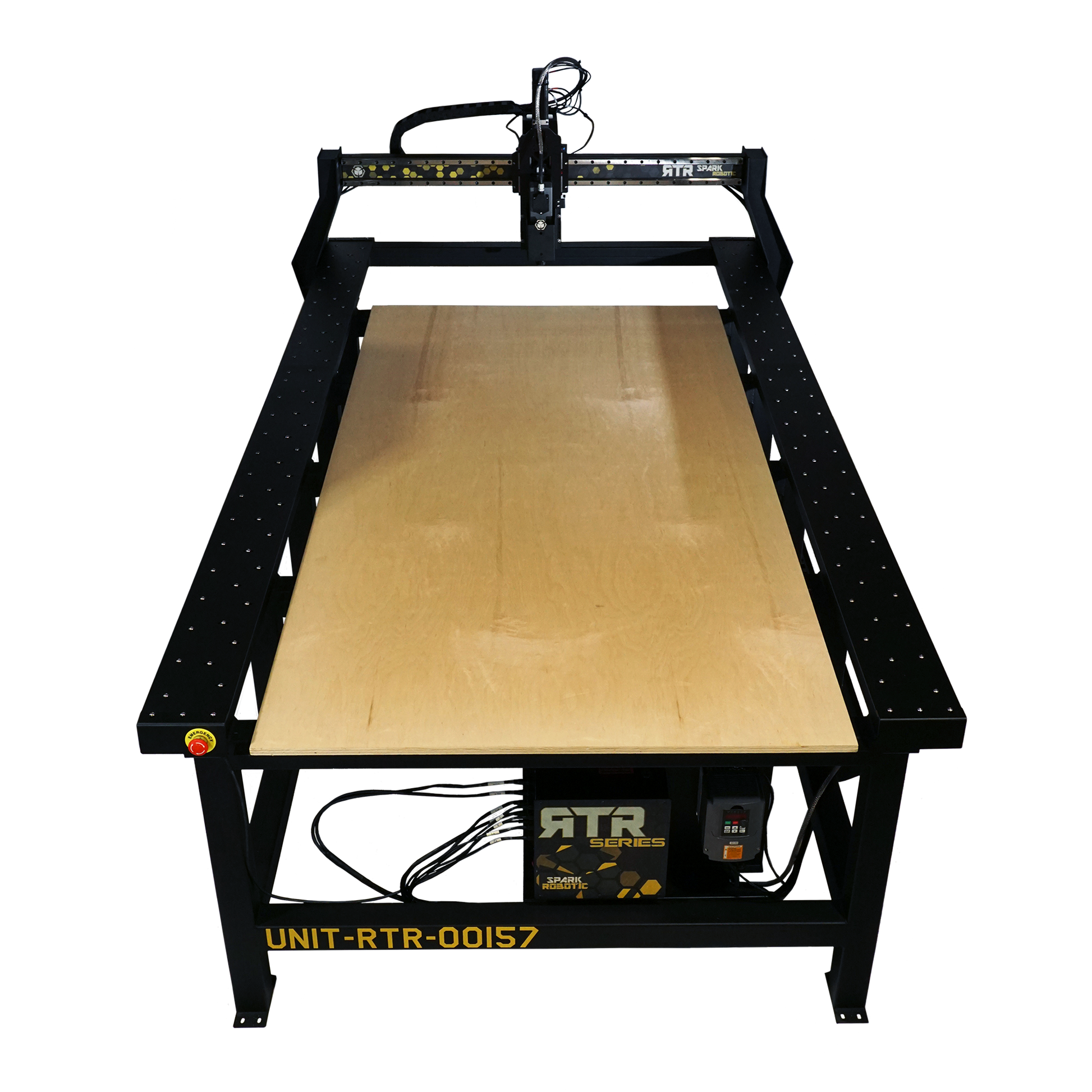

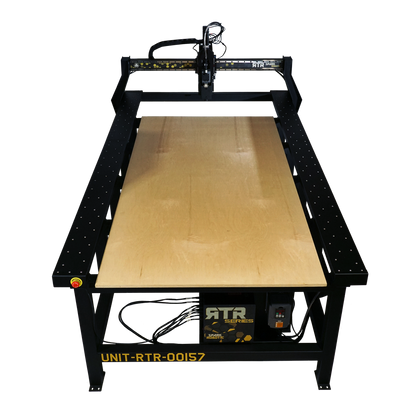

Spoil Board Recommendation

RTR PRO routers are shipped without a table board or spoil board, allowing customers to choose the material best suited to their application. We recommend using 3/4-inch Baltic Birch or Maple plywood for both the table board and spoil board.
