CNC Controls & Retrofits

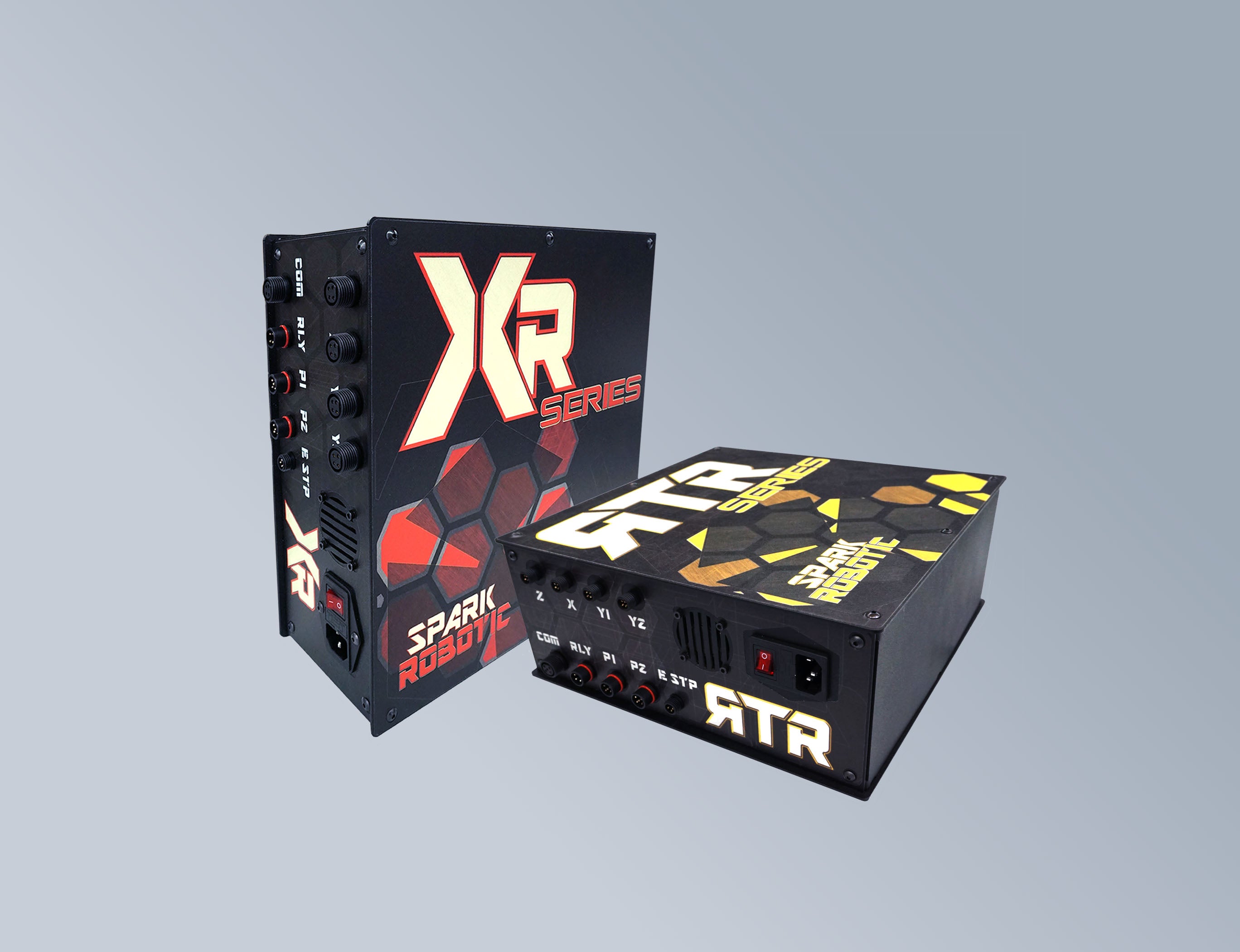

The Spark Robotic Plasma Control Package includes:

• ControlX control box
• ControlX software and licensing
• 3 Axis (4 motor) up to 5.5 amp stepper outputs
• NPN 24v limits for each axis
• NPN 24v Collision detection sensors
• Aluminum collision detection torch mount
• Integrated Torch Height Control (THC)
• Aux relay output (24v) for Oxy Fuel or Scribe actuation
• CPC Connection included for Hypertherm or Thermal dynamics Plasma units
• Preconfigured Tool sets for all Hypertherm cut charts
• Integrated Cam software (Post Processor available for Sheetcam)

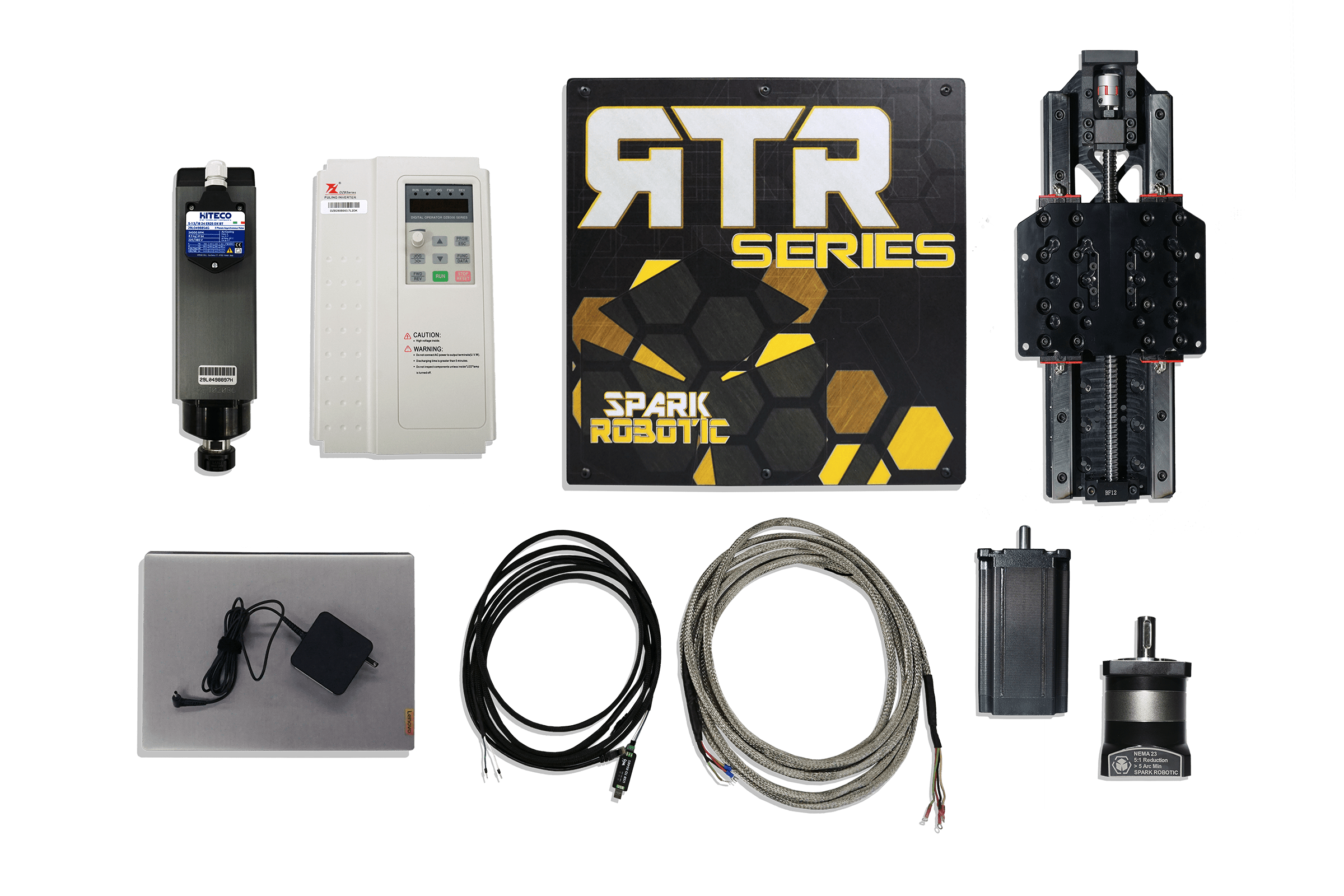

The Spark Robotic Router Control Package includes:

• ControlX control box
• PlanetCNC software and licensing
• Ethernet connection and RS 485 Modbus connections for VFD
• 4 Axis (5 motor) up to 5.5 amp stepper outputs
• 24v limits for each axis
• Outputs for additional I/O
• Waterproof connectors to wire in your existing motors and limits
• Fully capable of supporting ATC functions

Optional Additions:

• Windows 11 Laptop
• Pro Z-axis
• Hiteco Spindle
• Spindle Cable
• VFD (Variable Frequency Drive)
• Pre-wired NEMA 23 or 34 stepper motors with a variety of power and shaft options
• NEMA 23 and 34 servo options
• Planetary Gearboxes

• Fully loaded gantry with Z-axis
• Y and X motors
• Bearing blocks
• Drag chain
• Harness
• Controller box
• Laptop with pre installed software
• Side plate rails with linear rail and gear racks pre installed
• Side plate mounting square tubing, pre-drilled and threaded to accept the side plate rails

• Electrical : 1 years
• Mechanical : 2 years
• Laptop : 3 months
• Third Party equipment and products are subject to warranties provided by the
  original manufacturer or supplier. Third party warranties may vary from
  product to product.

• Our Retrofit Control packages are shipped via UPS for a flat rate of $150.00
