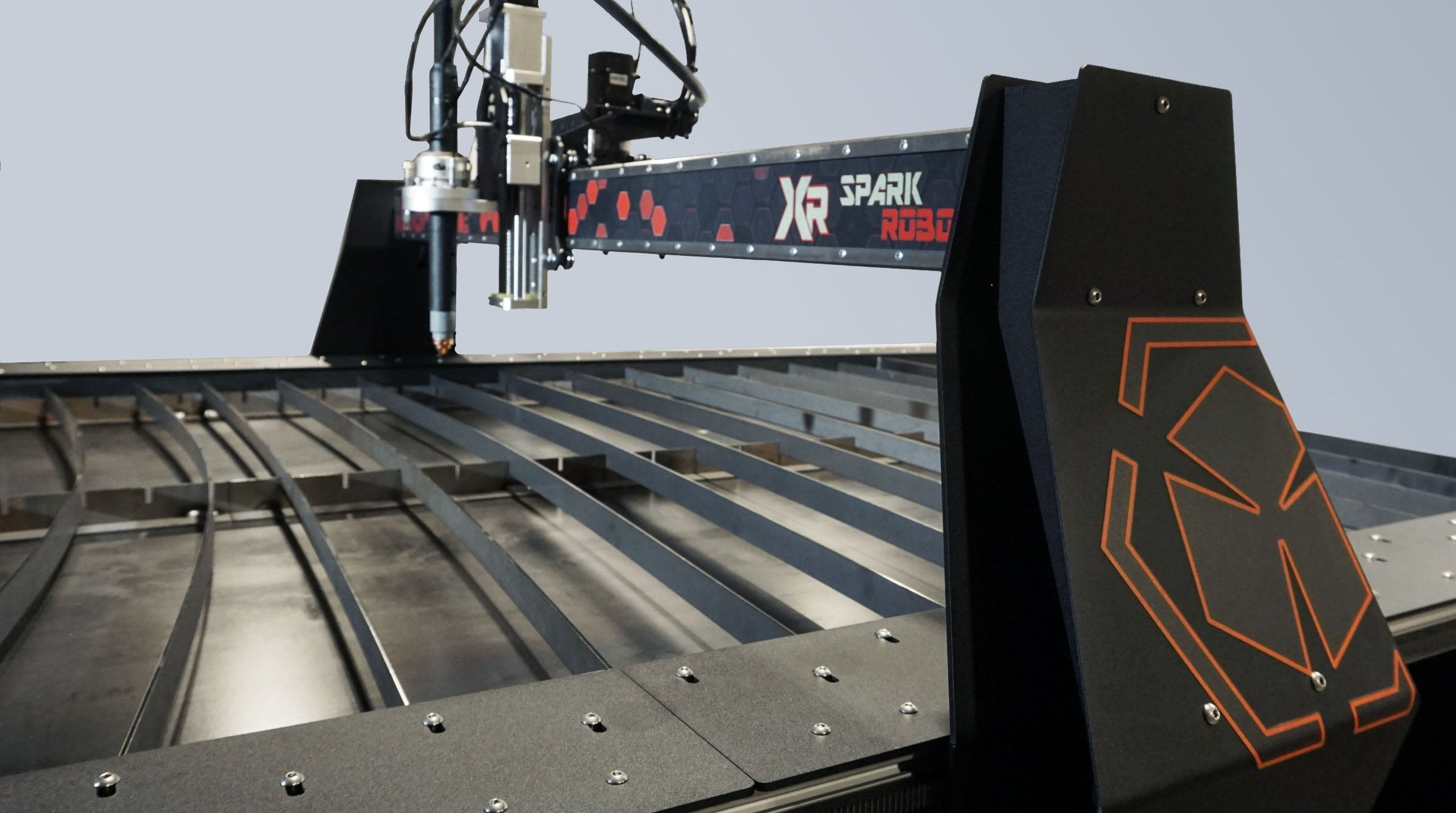

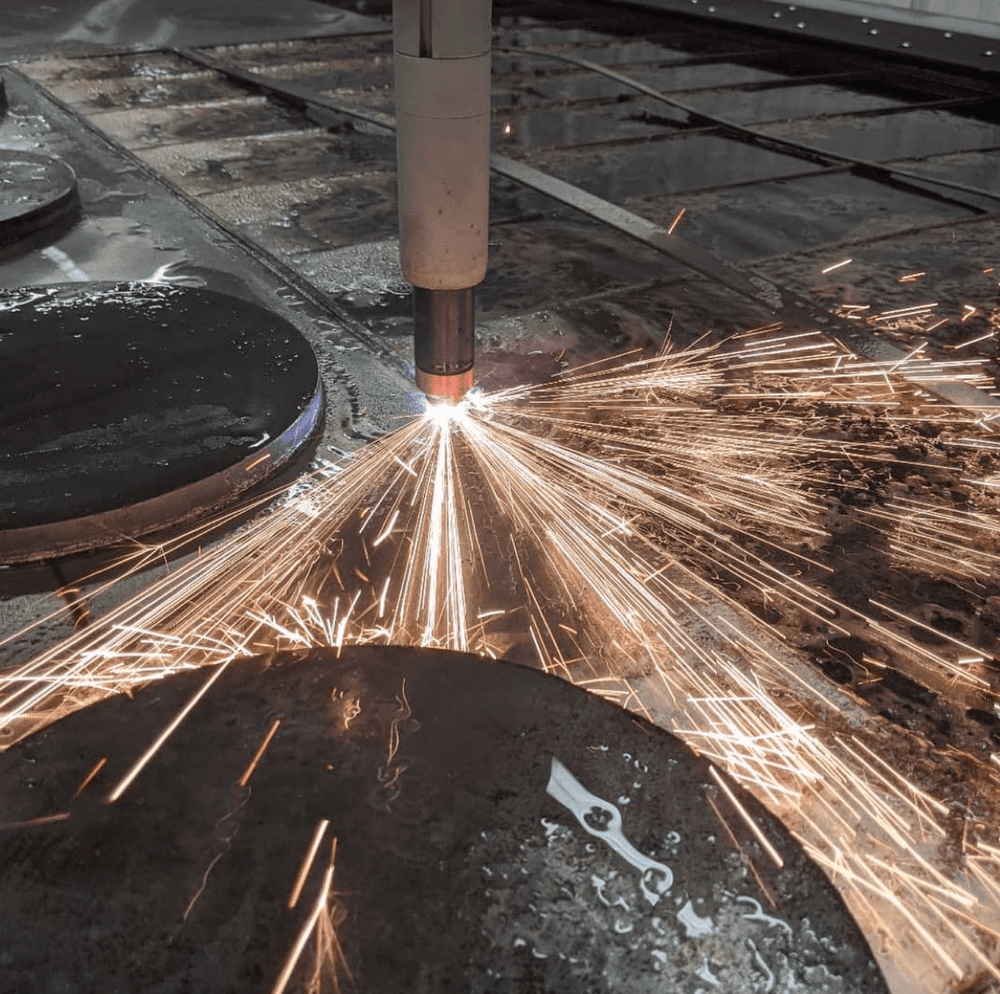

CNC Plasma Tables

• Torch Height Control: High speed integrated Collision detection torch mount with height control
• Automotive inspired modular wiring harness with advanced cable management
• High precision planetary gear reduction on the X and Y axis
• Control software on a flash drive or optional refurbished laptop
• Laser cut and fully welded gantry and frame
• 2.75” deep Water table, slats , and slat support
• Hardened steel linear guide rails on the Y and Z axis
• Hardened American made V rail on the X axis
• Heavy duty linear bearing on all axes
• NEMA 23 Dual-shaft Stepper Motors (76mm + 100mm)
• Integrated E-Stop switch
• Industry leading tech support

XR-44

• X-Axis travel: 51"
• Y-Axis travel: 51"
• Z-Axis travel: 8"
• Z Clearance (from water pan bottom to gantry): 10"
• Machine Width (at widest part of the gantry): 74"
• Machine Depth: 71"

XR-84

• X-Axis travel: 51"
• Y-Axis travel: 99"
• Z-Axis travel: 8"
• Z Clearance (from water pan bottom to gantry): 10"
• Machine Width (at widest part of the gantry): 122"
• Machine Depth: 73"

XR-51

• X-Axis travel: 61"
• Y-Axis travel: 122"
• Z-Axis travel: 8"
• Z Clearance (from water pan bottom to gantry): 10"
• Machine Width (at widest part of the gantry): 88"
• Machine Depth: 144"

The following items are included:

• USB controller
• Plasma interface (RS485)
• USB cable

Basic functions of the program / controller:

• Max range of the machine: No restrictions
• The minimum pulse width Step Auto
• STEP signal max frequency: 350kHz
• Integrated height adjuster: Yes (THC)
• Torch anti-dive function: Yes
• Detection of material: Yes Touch / Floating head
• Operation Collision Sensor: YES
• Types of accepted files: DXF, PLT (HPGL), G-codes (.tap)
• Integrated CAM: Yes, MyMiniCAM
• Automatic object recognition: YES
• Analysis of the path ahead: YES
• Operation using GamePad controller: YES
• Can be cut from anywhere: YES
• Can be cut from the material edge: YES
• Supported Controllers: CNC MyPlasma
• Import DXF, PLT or G-CODES
• Automatic generation of offset paths, lead-ins and lead-outs
• The program can be used with an external CAM program
• Separate speed functionality
• Correction of the project to the angle of the material
• Soft and Hardware Limits
• THC functionality
• Detection of material through the touch system, a floating head or both

• 2x 110v outlets for laptop and controller
• 1x 220v outlet for the plasma generator

• Electrical : 1 years
• Mechanical : 2 years
• Laptop : 3 months
• Third Party equipment and products are subject to warranties provided by the original manufacturer or supplier. Third party warranties may vary from product to product.

The XR Series Plasma Tables come fully welded. Your order can be shipped
via freight or picked up at our production facility in Mars Hill, North Carolina. A forklift is required to safely unload the machine from the freight truck. 6ft pallet forks can handle the unloading, but 8ft forks are recommended for 5x10 machines and larger. *Procuring a forklift and unloading the machine is solely the responsibility of the customer. A complete listing of our shipping policies can be found here.

Below, are the dimensions and weights of our plasma machines.

• XR-44 is fully welded and the crate is roughly 73" x 68" x 73" & weighs about 1100 LBS
• XR-84 is fully welded and the crate is roughly 120" x 68" x 73" & weighs about 1375 LBS
• XR-51 is fully welded and the crate is roughly 140" x 88" x 60” & weighs 1550 LBS
