Amana AMS-CNC-58 - Master CNC Router Bit Collection, 58-Pcs with LED Illuminated, Mirrored Interior and Solid Wood Display

$3,258.75

We have the tool you need for every CNC application! Whether you’re creating signs building cabinets or surfacing large areas we have created a versatile mix of router bits to complete your project. Each router bit is manufactured from Amana’s exclusive grade carbide according to stringent quality standards.

58 pieces of the most versatile CNC industrial quality high performance solid carbide carbide tipped and solid carbide insert router bits. Router bits feature superior cutting edges mirror like finish (on some of the tools) balancing carbide of different grades for different materials/applications and excellent tool design to allow for repeat sharpening.

Designed for cutting:

  • Aluminum Brass Bronze Copper
    Gold Silver & Titanium
  • Aluminum Composite Material (ACM)
  • Aluminum FoamCore
  • Composite
  • Corrugated Polypropylene
  • Fiberglass
  • Fiberglass PCB Board
  • FoamCore
  • Gatorfoam®
  • Graphite
  • Melamine
  • MDF/HDF
  • Laminate
  • Phenolic Composites
  • Plastic Acrylic & Plexiglas®
  • Sign Foam Sign Board & HDU
  • Solid Surface
  • Steel and Stainless Steel
  • Veneered Plywood
  • Wood
  • Xanita® Lightboard™ and X-Board™

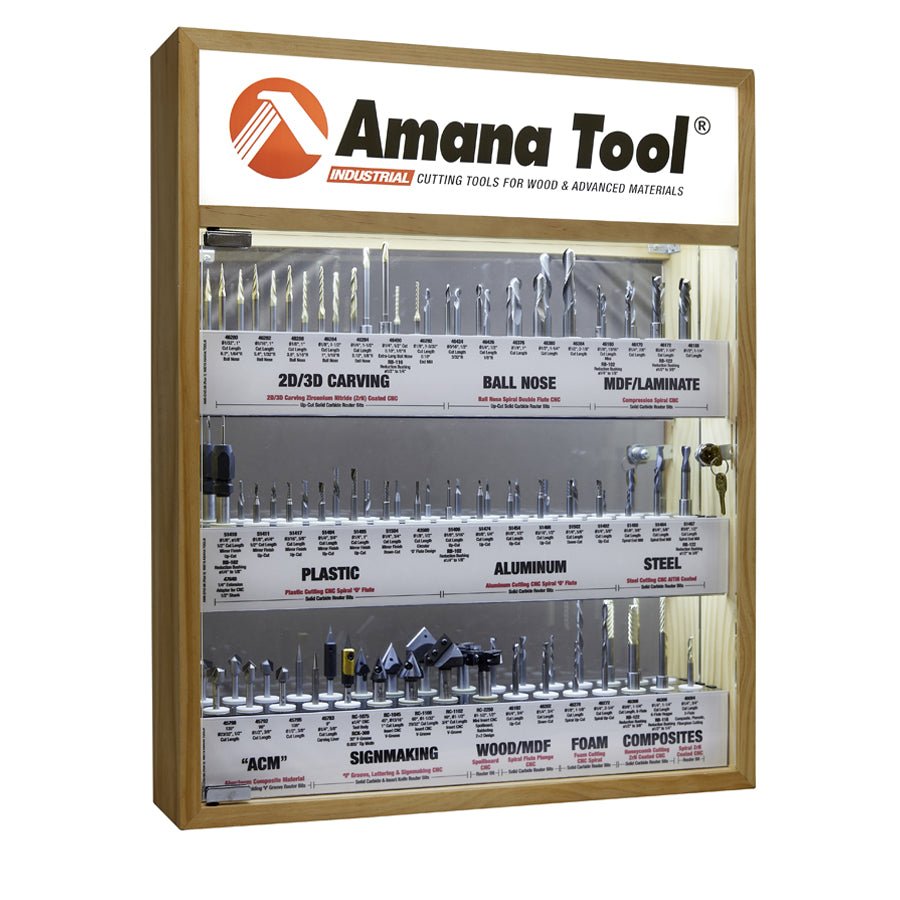

Stored in a freestanding or wall mounted LED illuminated solid wood display with mirrored interior and locking clear acrylic door.

See below for set contents.

Wood Storage Box Dimensions
31" H x 27" W x 9" Deep

Vectric compatible tool file for AMS-CNC-58 available for download, click here.

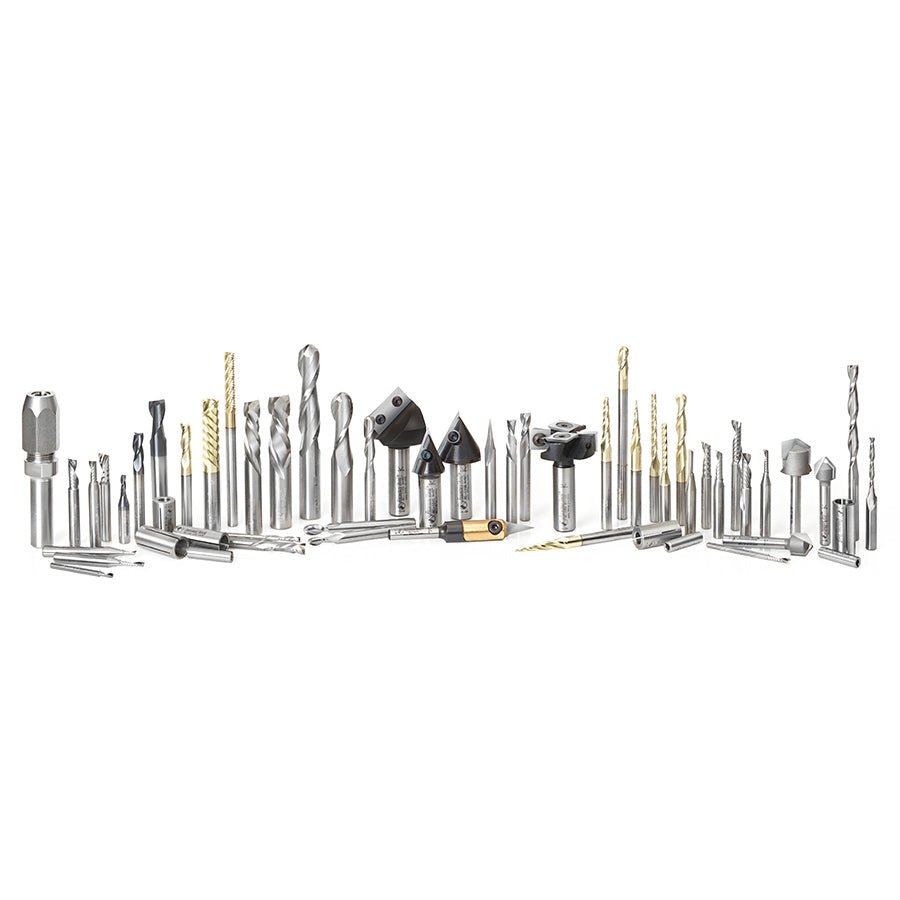

AMS-CNC-58 Set Includes:

TOOL NO. PRODUCT NAME QTY
43500 Solid Carbide Single 'O' Flute Plastic Cutting 1/8 Dia x 1/2 x 1/4 Inch Shank 1
RB-102 High Precision Steel Router Collet Reducer 1/4 Overall Dia x 1/8 Inner Dia x 1 Inch Long 1
RB-116 High Precision Steel Router Collet Reducer 1/2 Overall Dia x 1/4 Inner Dia x 1 Inch Long 1
RB-122 High Precision Steel Router Collet Reducer 1/2 Overall Dia x 3/8 Inner Dia x 1-3/16 Long 1
45783 Solid Carbide Carving Liner 18 Deg x 1/4 Dia x 5/8 x 1/4 Inch Shank x 1-Flute 1
51502 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/4 Dia x 5/8 x 1/4 Inch Shank Down-Cut 1
46170 CNC Solid Carbide Compression Spiral 1/4 Dia x 7/8 x 1/4 Inch Shank 1
46188 CNC Solid Carbide Compression Spiral 1/2 Dia x 1-1/4 x 1/2 Inch Shank 1
46172 CNC Solid Carbide Compression Spiral 3/8 Dia x 1-1/4 Inch x 3/8 Shank 1
46376 Solid Carbide Up-Cut Ball Nose Spiral 1/4 Dia x 1 Inch x 1/4 Shank Router Bit 1
46380 Solid Carbide Up-Cut Ball Nose Spiral 1/2 Dia x 1-1/4 x 1/2 Inch Shank Router Bit 1
46384 Solid Carbide Up-Cut Ball Nose Spiral 1/2 Dia x 2-1/8 x 1/2 Inch Shank Router Bit 1
46202 Solid Carbide Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank Down-Cut 1
46102 Solid Carbide Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut 1
51402 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/4 Dia x 5/8 x 1/4 Inch Shank Up-Cut 1
51411 Solid Carbide CNC Spiral 'O' Single Flute, Plastic Cutting 1/8 Dia x 1/2 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit 1
51417 Solid Carbide CNC Spiral 'O' Single Flute, Plastic Cutting 3/16 Dia x 5/8 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit 1
46270 Solid Carbide CNC Foam Cutting Up-Cut Square End Spiral 1/8 Dia x 1-1/8 x 1/4 Shank x 2-1/2 Inch Long Router Bit 1
46272 Solid Carbide CNC Foam Up-Cut Cutting Square End Spiral 1/4 Dia x 2-1/4 x 1/4 Shank x 2-1/2 Inch Long Router Bit 1
46424 Solid Carbide Up-Cut Spiral Ball Nose 3/32 Radius x 3/16 Dia x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit 1
46426 Solid Carbide Up-Cut Spiral Ball Nose 1/8 Radius x 1/4 Dia x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit 1
46280 CNC 2D and 3D Carving 6.2 Deg Tapered Angle Ball Tip x 1/32 Dia x 1/64 Radius x 1 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit 1
46282 CNC 2D and 3D Carving 5.4 Deg Tapered Angle Ball Tip 1/16 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long x 4 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit 1
46284 CNC 2D and 3D Carving 1 Deg Tapered Angle Ball Tip 1/8 Dia x 1/16 Radius x 1-1/2 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit 1
46286 CNC 2D and 3D Carving 3.6 Deg Tapered Angle Ball Tip 1/8 Dia x 1/16 Radius x 1 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit 1
46294 CNC 2D and 3D Carving 0.10 Deg Straight Angle Ball Tip 1/4 Dia x 1/8 Radius x 1-1/2 x 1/4 Shank x 3 Inch Long x 2 Flute Solid Carbide ZrN Coated Router Bit 1
46292 CNC 2D and 3D Carving Flat Bottom 0.10 Deg Angle x 1/8 Dia x 1-3/32 x 1/4 Shank x 2-1/2 Inch Long x 4 Flute Solid Carbide ZrN Coated Router Bit 1
51460 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 3-Flute x 1/8 Dia x 3/8 x 1/4 Shank x 1-1/2 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill 1
46308 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 3/8 Dia x 1-1/4 x 3/8 Shank x 6-Flute 1
51404 Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut Router Bit 1
51405 Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/4 Dia x 1 Inch x 1/4 Shank Up-Cut Router Bit 1
51410 Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/8 Dia x 1/2 x 1/8 Shank Up-Cut Design Router Bit 1
51504 Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank Down-Cut 1
RC-1075 CNC In-Groove Insert Engraving Tool Body 1/4 Inch Shank 1
46306 CNC Solid Carbide ZrN Coated Honeycomb Cutting Hogger 1/4 Dia x 1-1/4 x 1/4 Shank x 4 Inch Long x 6-Flute 1
47640 1/2 Inch Shank CNC Extension Adapter for 1/4 Inch Shank Router Bits 1
46490 Extra Long CNC 2D and 3D Carving Ball Nose 0.10 Deg Straight Angle x 1/4 Dia x 1/8 Radius x 1/2 x 1/4 Shank x 3 Flute ZrN Coated Reduced Shank Router Bit 1
46180 CNC Solid Carbide Compression Spiral 1/8 Dia x 13/16 x 1/8 Inch Shank 1
51474 Solid Carbide CNC Spiral 'O' Single Flute, Aluminum Cutting 1/8 Dia x 1/4 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit 1
51454 Solid Carbide CNC Spiral 'O' Single Flute, Aluminum Cutting 1/8 Dia x 1/2 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit 1
51406 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/8 Dia x 5/16 x 1/8 Shank Up-Cut 1
51408 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 3/16 Dia x 1/2 x 1/4 Inch Shank Up-Cut 1
RC-1045 CNC Insert V-Groove 45 Deg x 7/8 x 1/2 Inch Shank 1
RC-1108 Insert V-Groove 60 Deg x 1-1/16 Dia x 29/32 x 1/2 Inch Shank CNC 1
RC-1102 Insert V-Groove 90 Deg x 3/4 x 1/2 Inch Shank CNC 1
51464 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 3-Flute x 1/4 Dia x 5/8 x 1/4 Shank x 2-3/8 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill 1
51467 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 2-Flute x 3/8 Dia x 1/2 x 3/8 Shank x 3 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill 1
RCK-360 Solid Carbide Insert 30 Deg x 0.005 Inch V Tip Width Engraving Knife for In-Groove System 1
46094 Solid Carbide Up-Cut Spiral 1/4 Dia x 3/4 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass & Phenolic Cutting ZrN Coated Router Bit 1
45792 Carbide Tipped Double Edge Folding V-Groove 90 Deg x 0.090 Inch Tip Width x 1/2 Dia x 13/64 x 1/4 Inch Shank 1
45795 Carbide Tipped Double Edge Folding V-Groove 108 Deg x 0.090 Inch Tip Width x 5/32 x 1/2 Dia. x 1/4 Inch Shank 1
45798 Carbide Tipped Double Edge Folding V-Groove 135 Deg x 0.078 Inch Tip Width x 3/4 Dia x 9/64 x 1/4 Inch Shank 1
RC-2250 Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 2+2 Flute Design 1-1/2 Dia x 1/2 x 1/2 Inch Shank Router Bit 1
