CNC Fiber Lasers

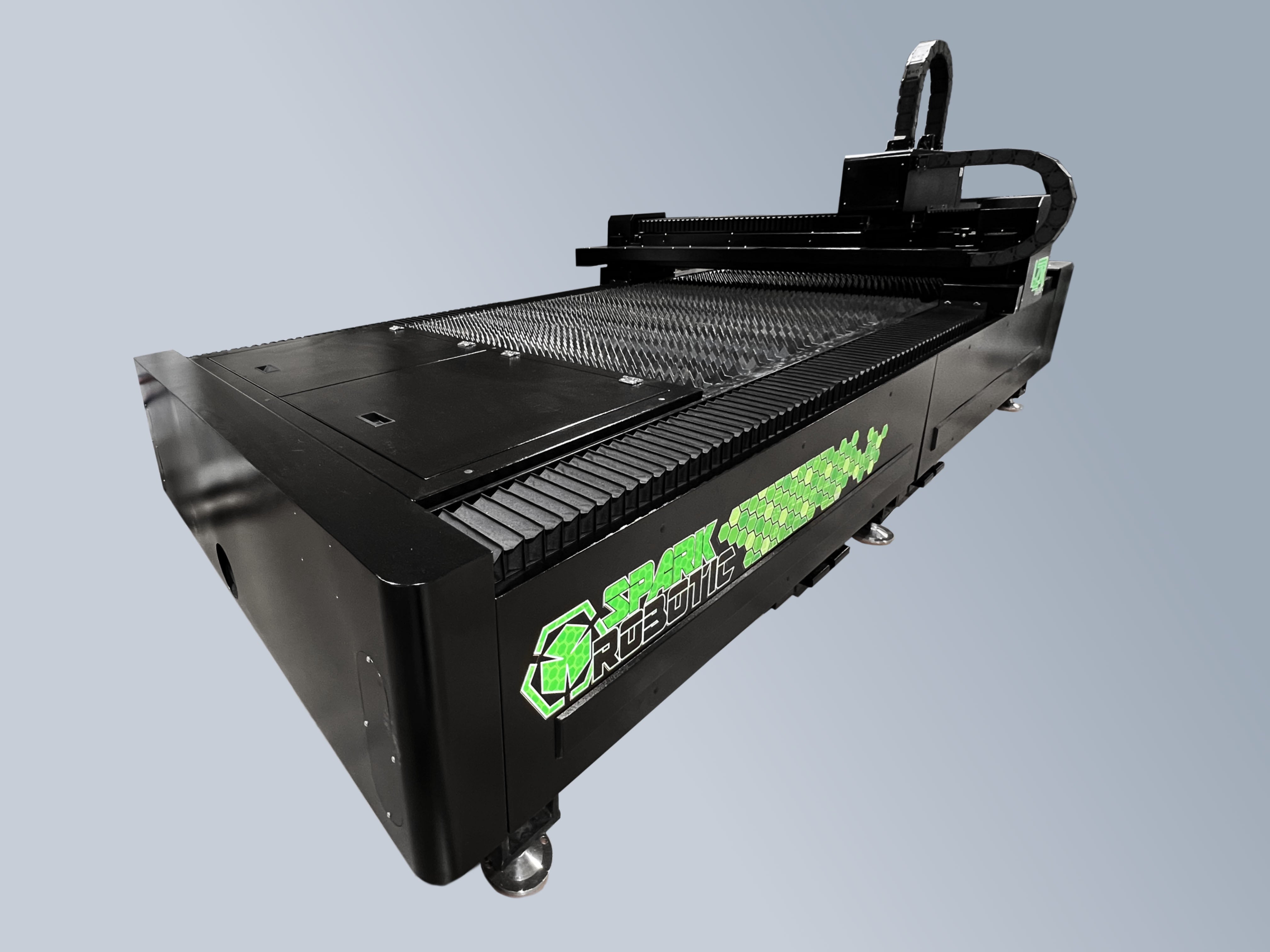

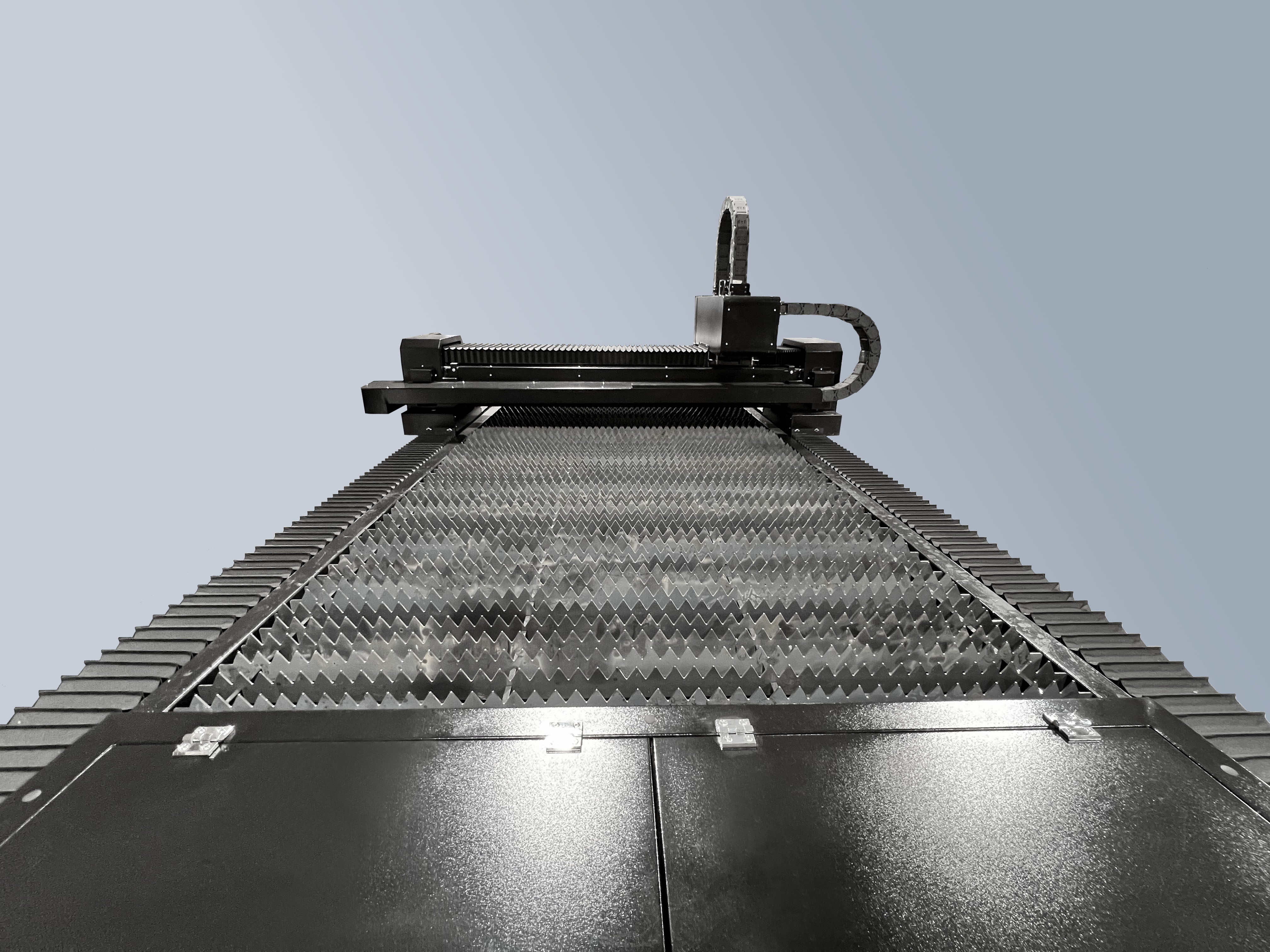

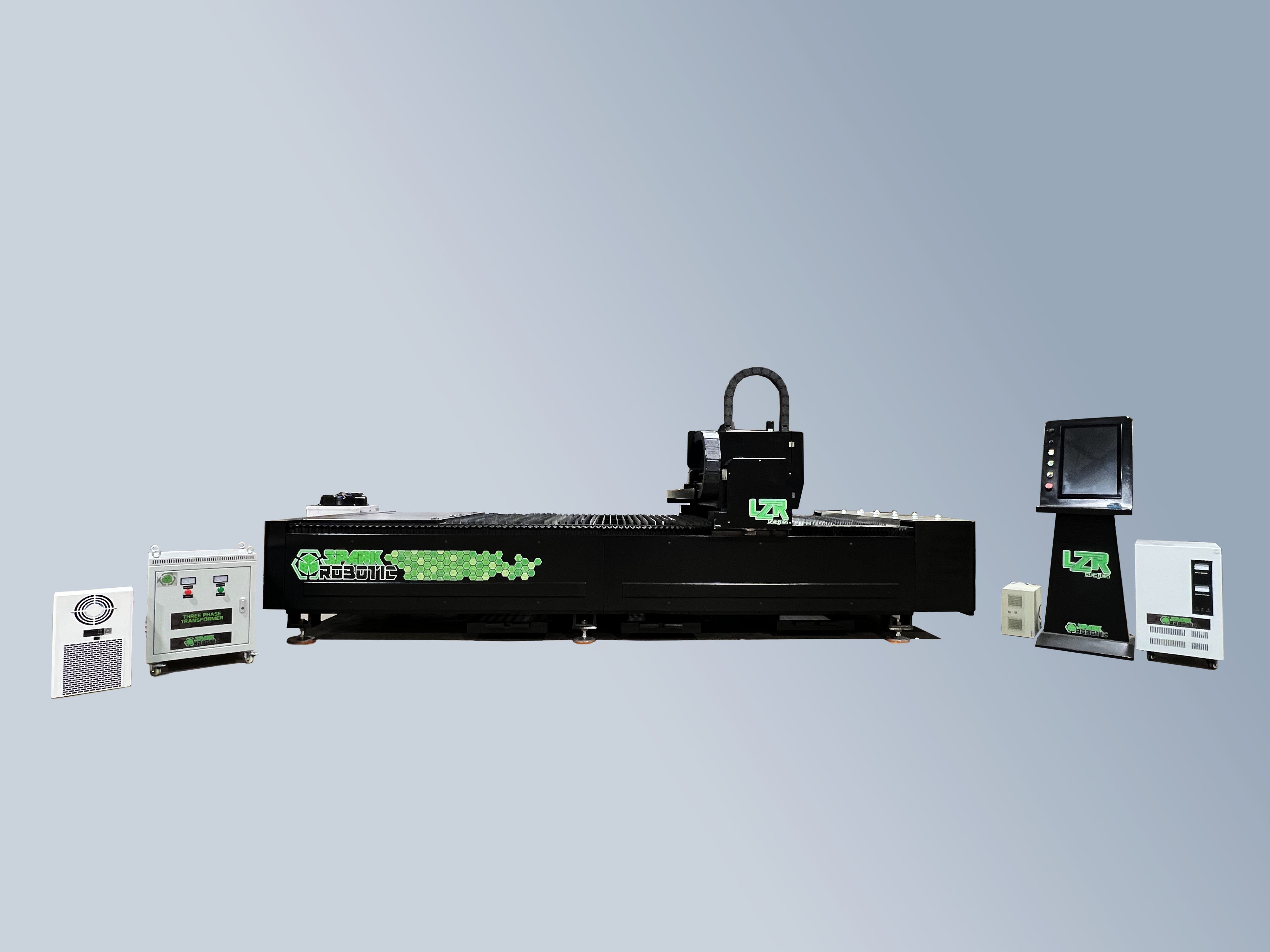

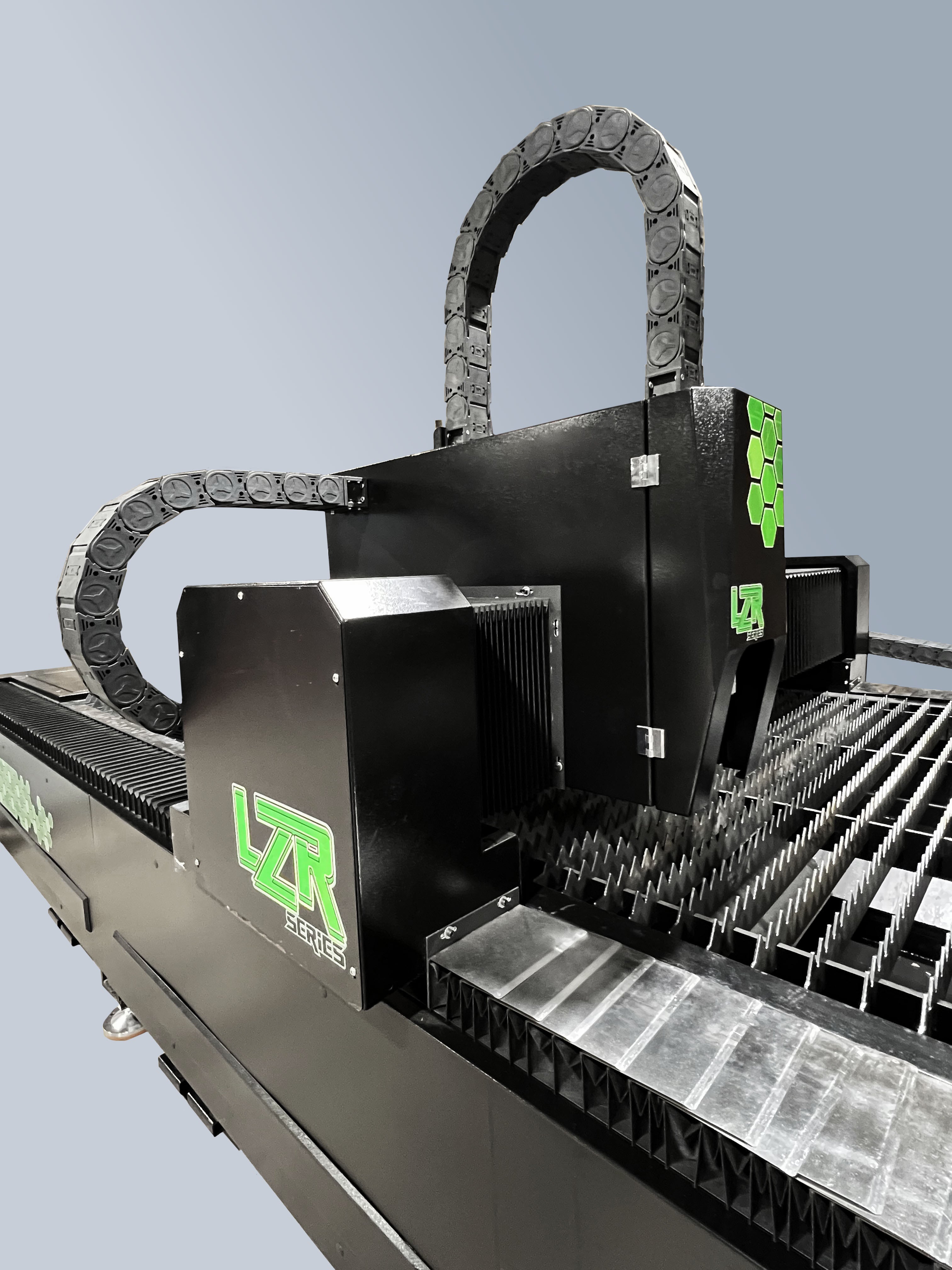

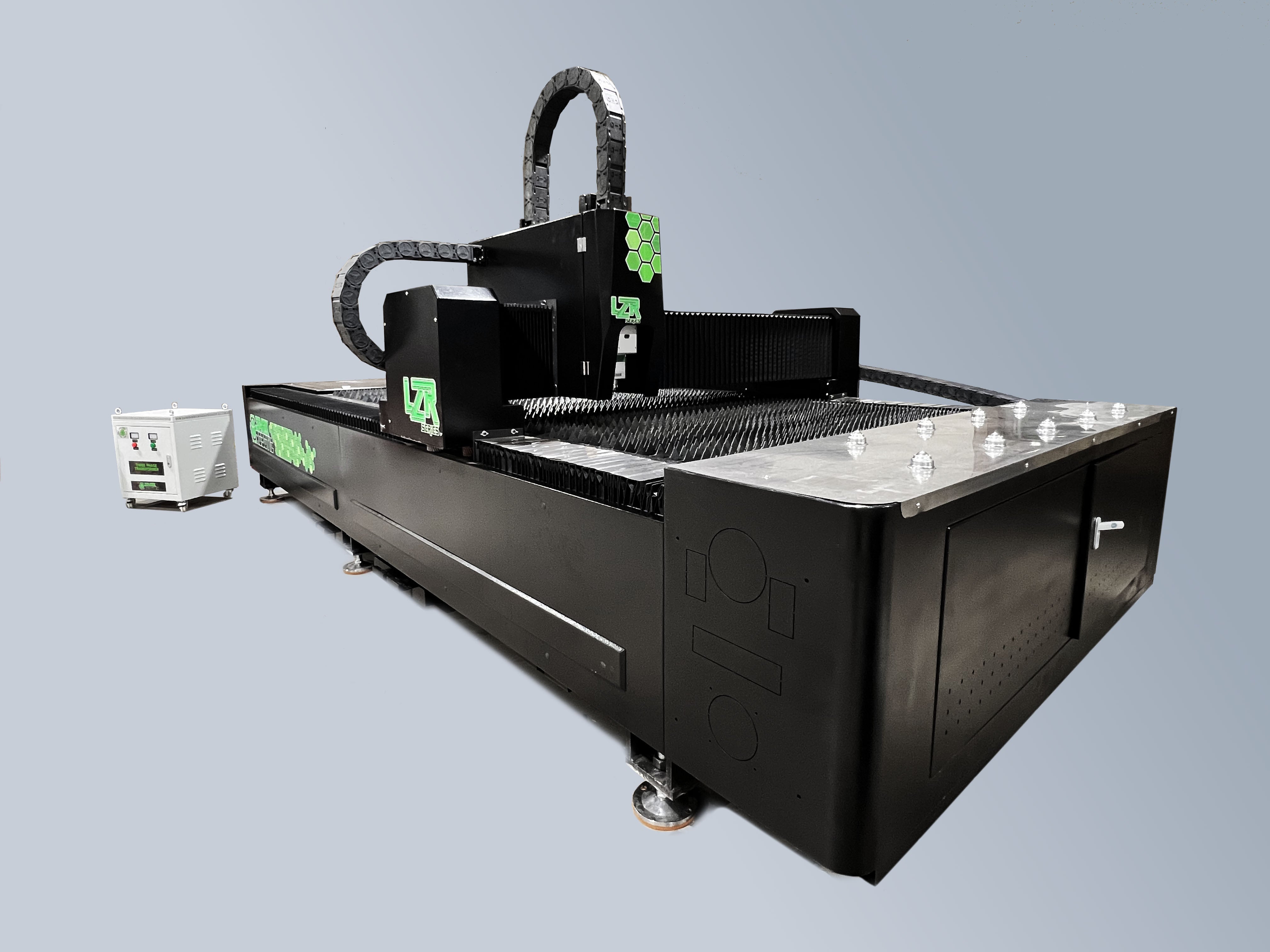

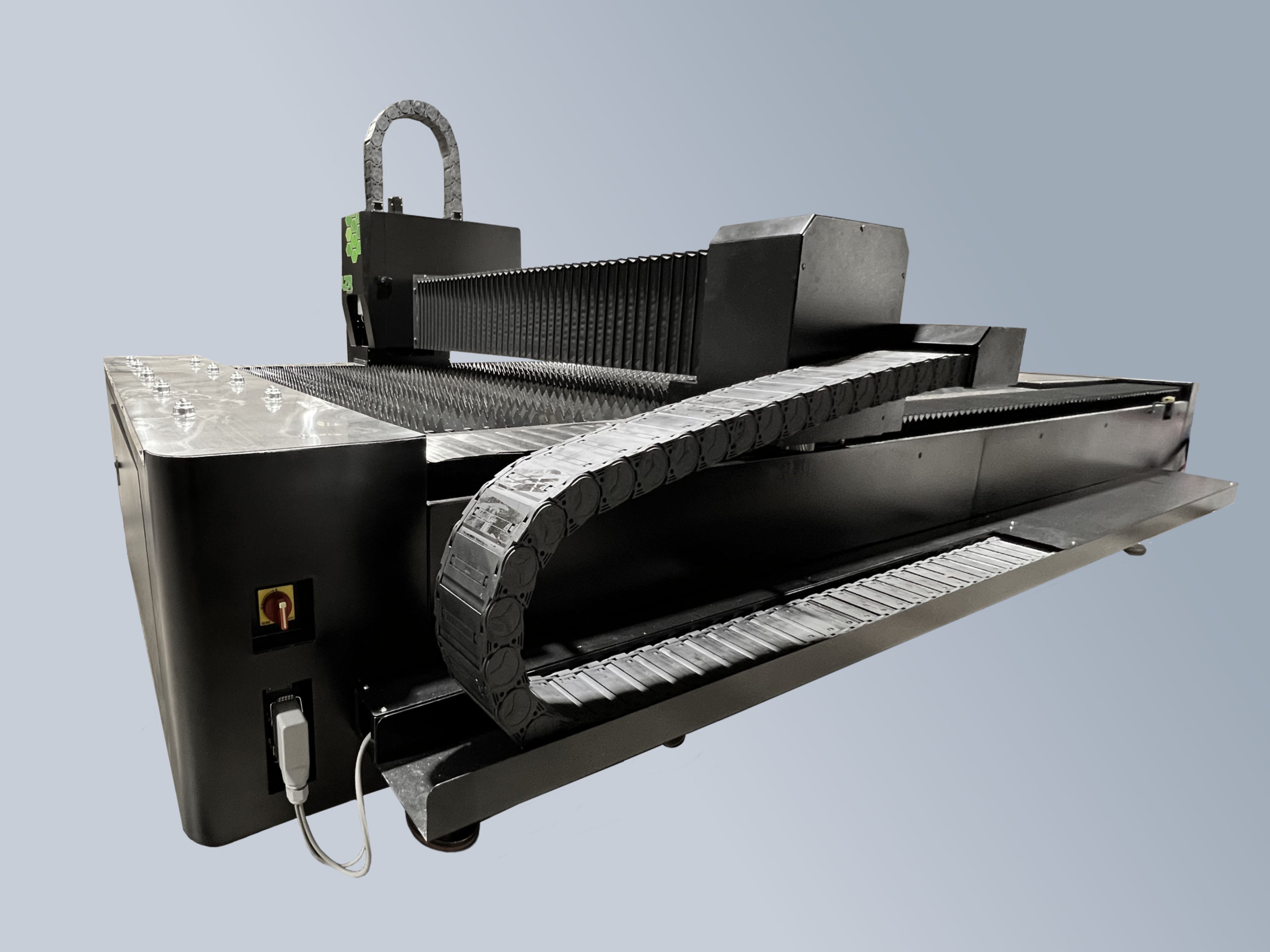

LZR-51 Fiber Laser Cutting Machine
$109,000.00
Hardware:
- Max Photronics Source: Options of 1, 2, or 3 kW.
- Dual Servo-Driven Axes: 1300W Delta Servo for the Y-axis and 850W for the X-axis.
- Advanced Z-Axis Control: 400W Delta Servo with integrated brake.
- Hiwin 30 Series Linear Rails: Enhanced with protective bellows.
- Precision Gearboxes: High precision planetary gearboxes with >2 arc-min backlash.
- ROR Helical Rack and Pinion**: Ensuring high precision cutting.
- Sturdy Frame: Heat-treated, unitized machined frame and gantry.

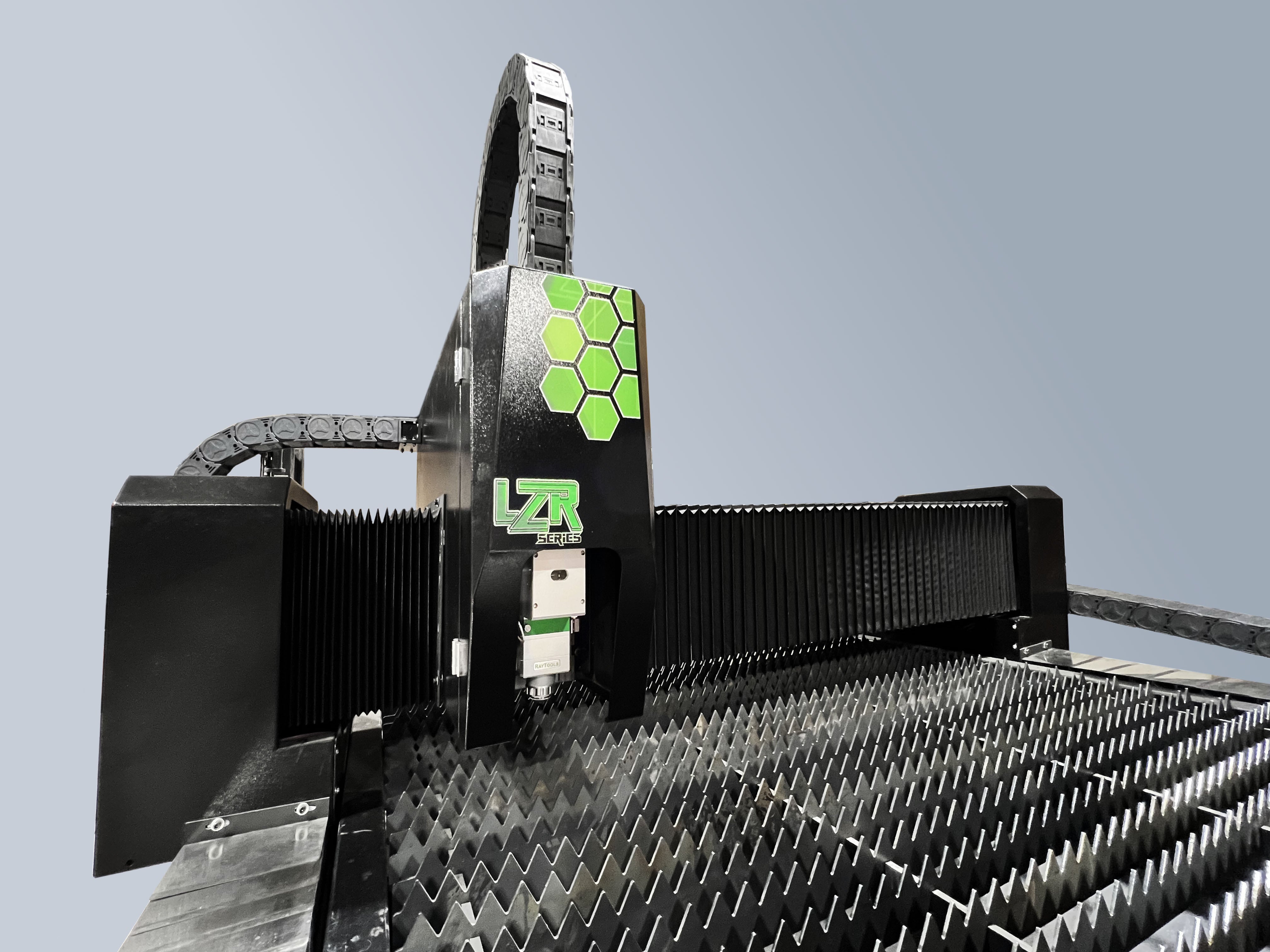

- Bm110 Autofocus Laser Head**.
- Efficient Cooling: 4kW dual stage water chiller.
- High-Speed Height Controller: With capacitance height control and collision detection.
- Integrated Control System: Including CAD computer with Nvidia 4000 series graphics and 24-inch touchscreen controls.

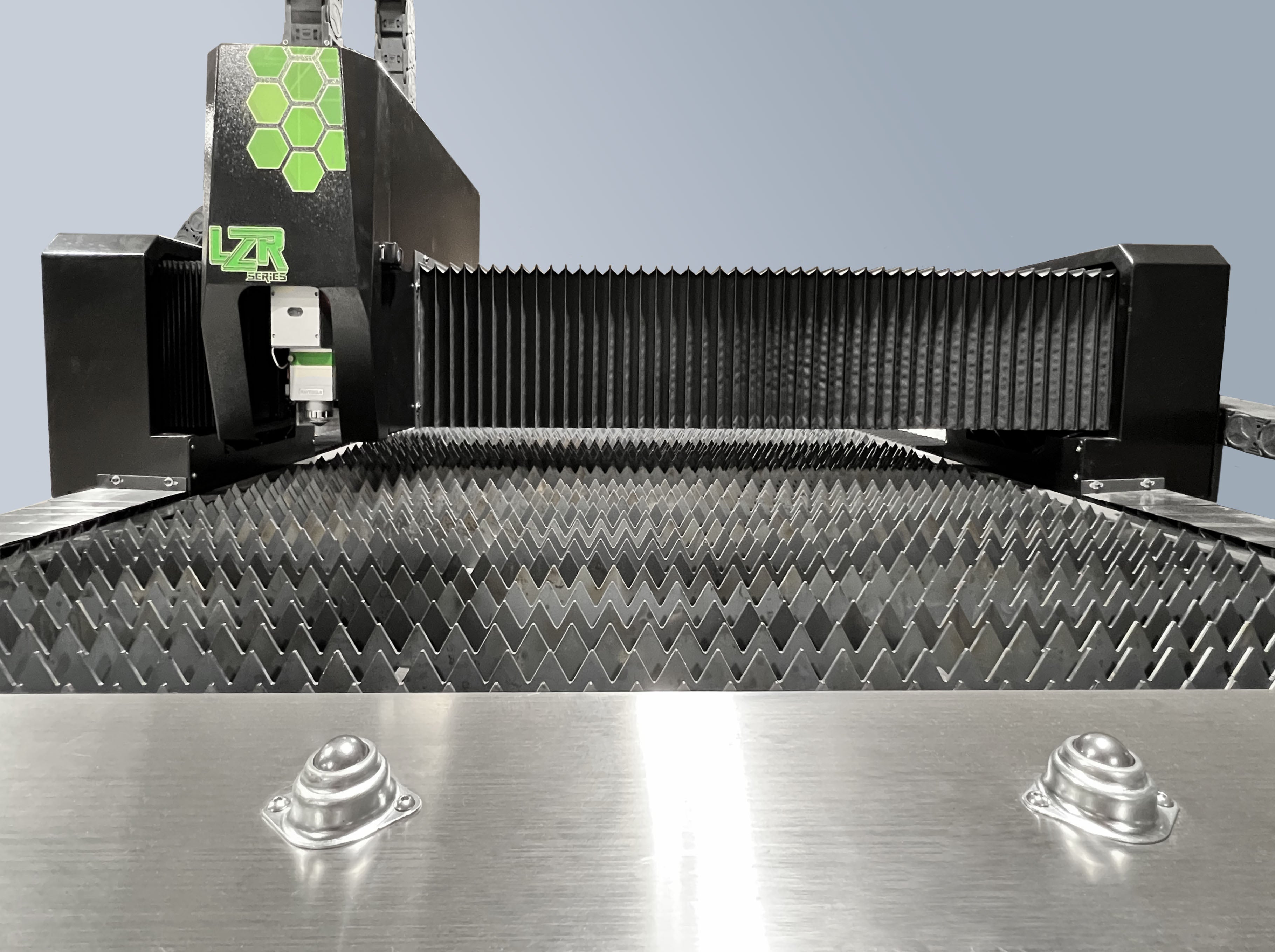

- Stable Support: Heavy-duty leveling feet and easy load plate rollers.
Software Capabilities:
- Cypcut 2000
- Auto Nesting and Integrated CAM.
- Remote Assistance
- Preinstalled CAD
Includes:
- On-Site Setup and Training: A comprehensive 2-day program.
- Consumables Package: Extensive range for immediate use.
- Warranty and Support: Spark Robotics' 2-year industry-leading warranty and lifetime technical assistance.
Physical Specifications:
- Cutting Area: 60 x 120 inches.
- Machine Footprint: 172 inches x 100 inches.
- Weight: 5,500 lbs.
Where power meets precision.
Our CNC machines are made-to-order, fabricated and manufactured in Mars Hill, North Carolina. Built with a welded steel frame, this heavy-duty construction makes our CNC machines tough enough for the most demanding projects.
Features & Technical Specs
Standard Features
- On-Site Setup and Training: A comprehensive 2-day program.
- Consumables Package: Extensive range for immediate use.
- Warranty and Support: Spark Robotic's 2-year industry-leading warranty and lifetime technical assistance.
Hardware
- Max Photronics Source: Options of 1, 2, or 3 kW.
- Dual Servo-Driven Axes: 1300W Delta Servo for the Y-axis and 850W for the X-axis.
- Advanced Z-Axis Control: 400W Delta Servo with integrated brake.
- Hiwin 30 Series Linear Rails: Enhanced with protective bellows.
- Precision Gearboxes: High precision planetary gearboxes with >2 arc-min backlash.
- ROR Helical Rack and Pinion**: Ensuring high precision cutting.
- Sturdy Frame: Heat-treated, unitized machined frame and gantry.
- Bm110 Autofocus Laser Head**.
- Efficient Cooling: 4kW dual stage water chiller.
- High-Speed Height Controller: With capacitance height control and collision detection.
- Integrated Control System: Including CAD computer with Nvidia 4000 series graphics and 24-inch touchscreen controls.
- Stable Support: Heavy-duty leveling feet and easy load plate rollers.
Software
- Cypcut 2000
- Auto Nesting and Integrated CAM.
- Remote Assistance
- Preinstalled CAD
Physical Specifications
- Cutting Area: 60 x 120 inches.
- Machine Footprint: 172 inches x 100 inches.
- Weight: 5,500 lbs.
CNC Machine Warranty
- Electrical : 1 years
- Mechanical : 2 years
- Laptop : 3 months
- Third Party equipment and products are subject to warranties provided by the original manufacturer or supplier. Third party warranties may vary from product to product.
