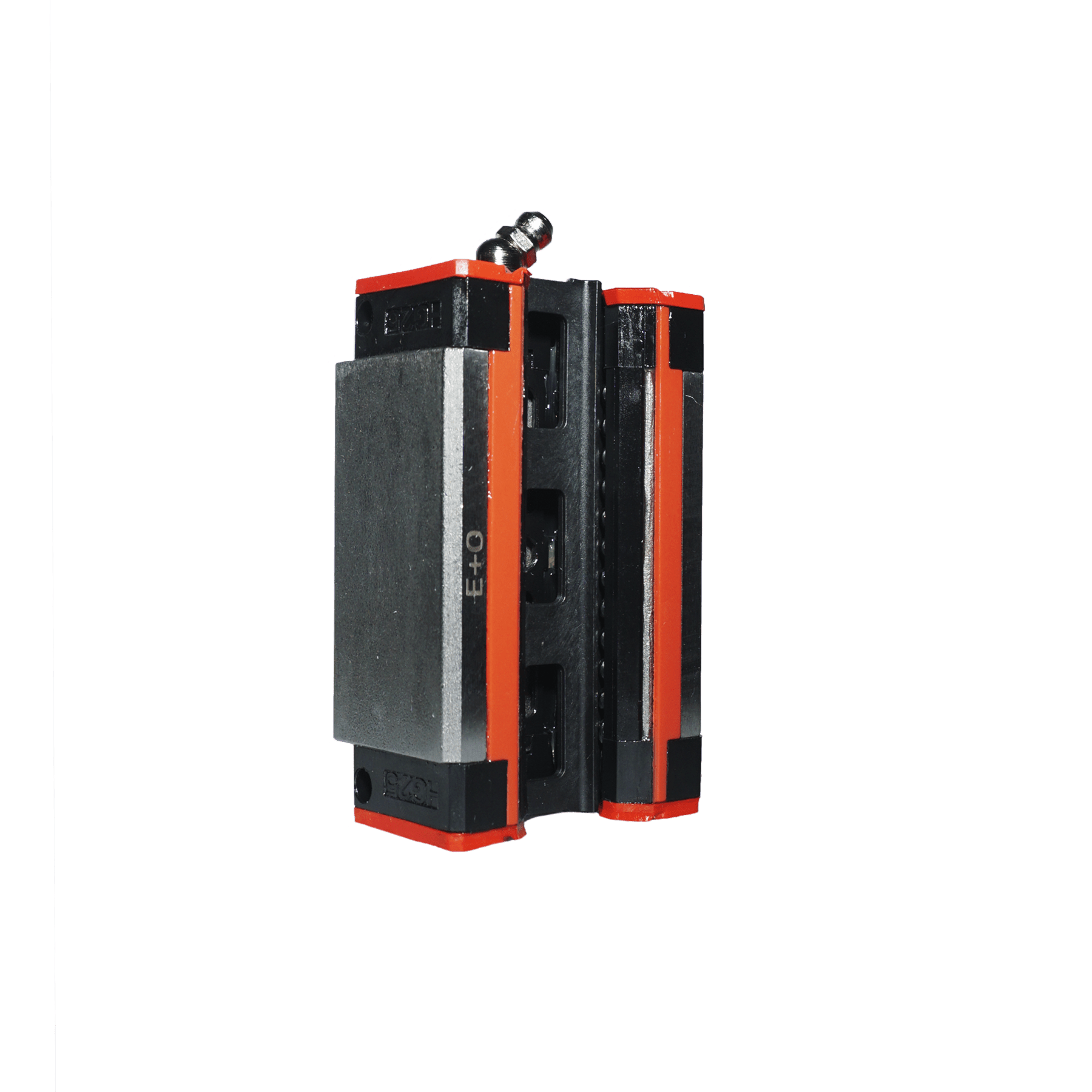

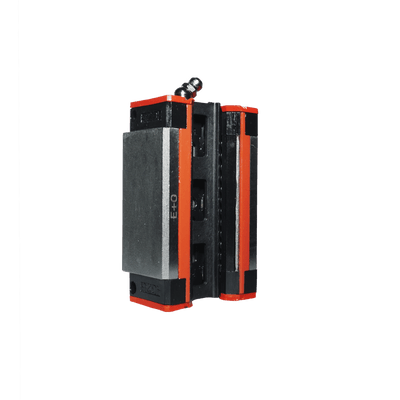

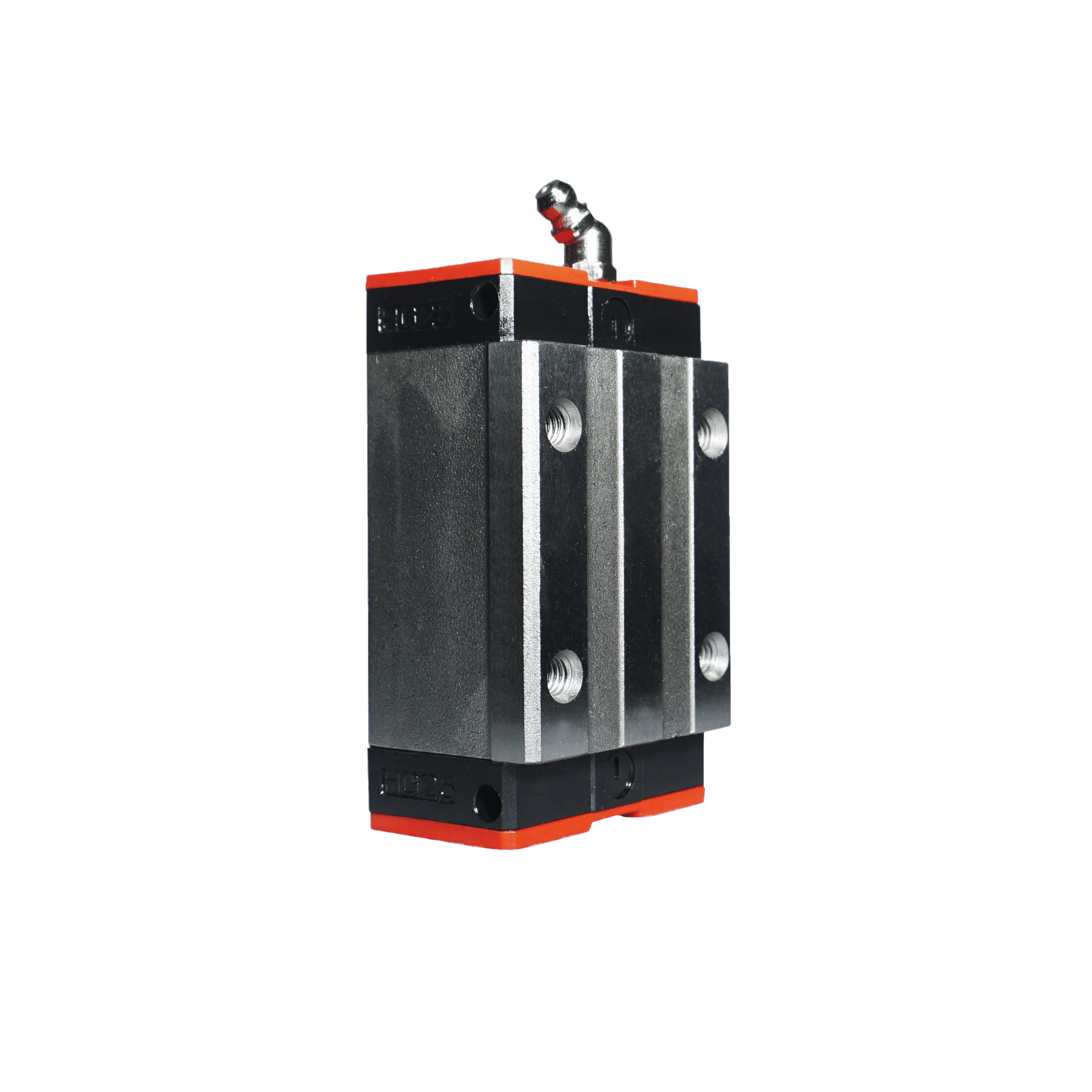

Bearing Blocks
$91.00
Linear guide rail bearing block for linear motion systems are designed with load capacity and rigidity with circular-arc groove and structure optimization. Features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation error.
- Size: 25 mm
- Load Type: Heavy Load
- Block Height: 40 mm
- Block Width: 48 mm
- Block Length: 84 mm
- Thread Size: M6 x20
- Basic dynamic load rating: 34.9 kN
- Basic static load rating: 52.82 kN
- Block Weight: 0.51 kg
- Rail Width: 23 mm
- Rail Height: 22 mm
