Spark Robotic

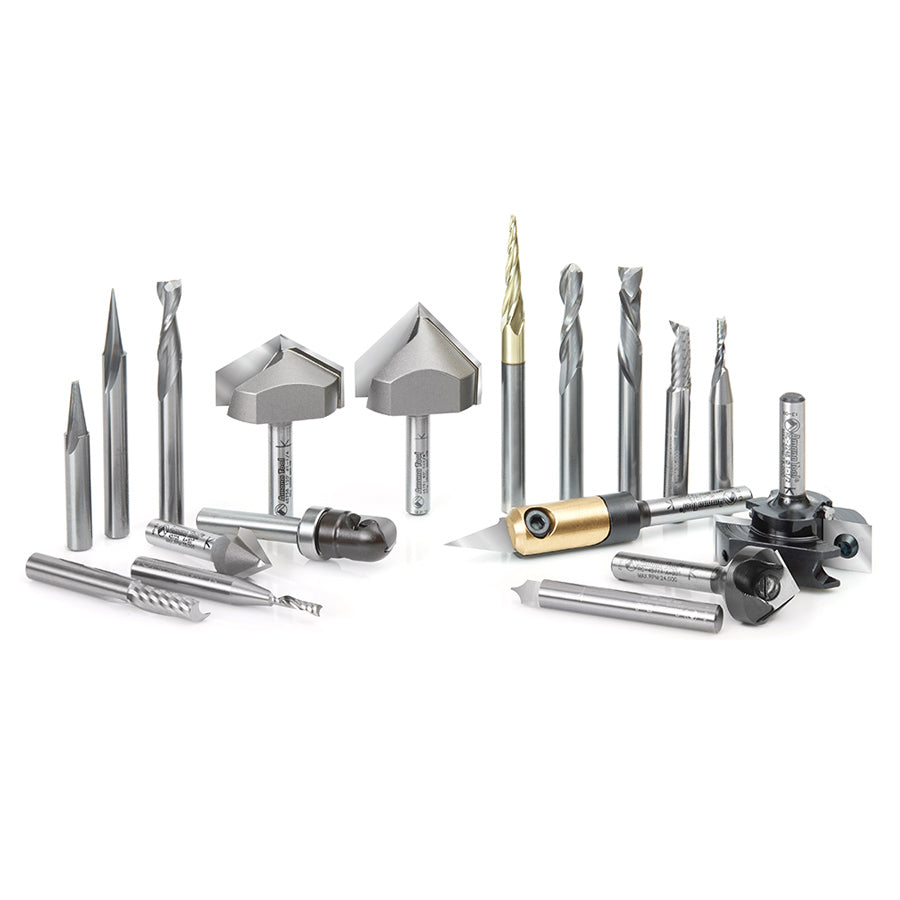

Amana AMS-132 18-Pc Signmaking Advanced CNC Router Bit Collection, 1/4 Inch Shank

Amana AMS-132 18-Pc Signmaking Advanced CNC Router Bit Collection, 1/4 Inch Shank

Regular price $793.10 USD
Regular price Sale price $793.10 USD
Sale Sold out
Shipping calculated at checkout.

The ultimate set for signmakers. Designed for creating signs and other CNC projects in a variety of materials. For the most demanding signmaking lettering and engraving tasks. Each router bit is manufactured from Amana's exclusive grade carbide according to stringent quality standards.

Designed for cutting:

  • Aluminum Brass Bronze Copper
  • Carbon Fiber
  • Laminate
  • MDF
  • Melamine
  • Plastic/Acrylic
  • Solid Surface
  • Wood
  • Veneered Plywood

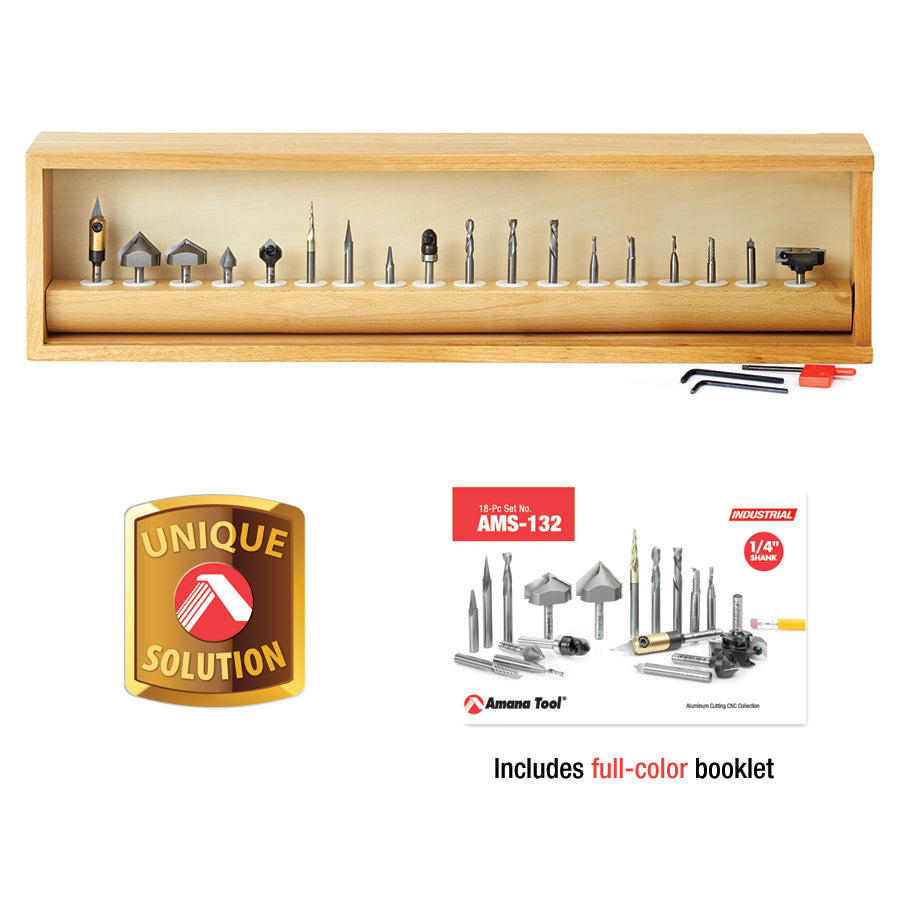

Stored in a solid wood showcase storage box with a Plexiglas® clear lid.

See below for set contents.

Wood Storage Box Dimensions
24-1/2" L x 6-1/2" W x 3" H

Warning: While RC-45910 is used on a CNC machine do not route deeper than the 1/2” cut length ball bearing cannot touch the material.

Vectric compatible tool file for AMS-132 available for download, click here.

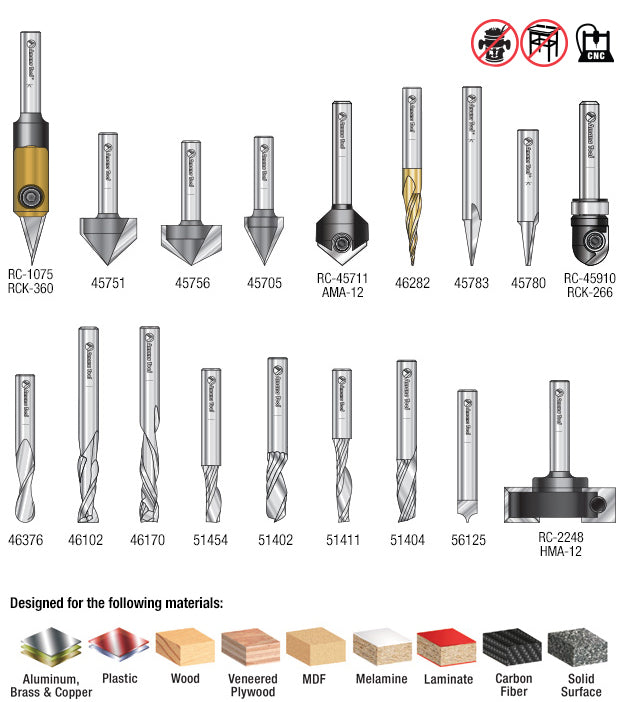

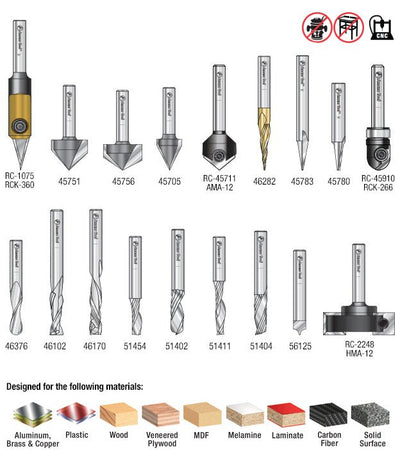

AMS-132 Set Includes:

TOOL NO. PRODUCT NAME QTY
RC-45910 Carbide Tipped Insert Core Box 1/4 Radius x 1/2 Dia x 1/2 x 1/4 Inch Shank Single Flute Router Bit 1
56125 Solid Carbide Point Cutting Roundover 1/8 Radius x 1/4 Dia x 5/16 x 1/4 Shank Router Bit 1
45783 Solid Carbide Carving Liner 18 Deg x 1/4 Dia x 5/8 x 1/4 Inch Shank x 1-Flute 1
RC-45711 In-Tech Insert Carbide V Groove 90 Deg x 11/16 D x 21/64 CH x 1/4 Inch SHK Single Flute Router Bit 1
46170 CNC Solid Carbide Compression Spiral 1/4 Dia x 7/8 x 1/4 Inch Shank 1
46376 Solid Carbide Up-Cut Ball Nose Spiral 1/4 Dia x 1 Inch x 1/4 Shank Router Bit 1
46102 Solid Carbide Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut 1
51402 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/4 Dia x 5/8 x 1/4 Inch Shank Up-Cut 1
RC-2248 Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1-1/2 Dia x 15/32 (12mm) x 1/4 Inch Shank Router Bit 1
51411 Solid Carbide CNC Spiral 'O' Single Flute, Plastic Cutting 1/8 Dia x 1/2 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit 1
46282 CNC 2D and 3D Carving 5.4 Deg Tapered Angle Ball Tip 1/16 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long x 4 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit 1
51404 Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut Router Bit 1
RC-1075 CNC In-Groove Insert Engraving Tool Body 1/4 Inch Shank 1
51454 Solid Carbide CNC Spiral 'O' Single Flute, Aluminum Cutting 1/8 Dia x 1/2 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit 1
45780 Solid Carbide V Groove Engraving 15 Deg x 3/16 Dia x 1/2 x 1/4 Inch Shank 1
RCK-360 Solid Carbide Insert 30 Deg x 0.005 Inch V Tip Width Engraving Knife for In-Groove System 1
45751 Carbide Tipped V-Groove 90 Deg x 1-1/4 Dia x 5/8 x 1/4 Inch Shank 1
45756 Carbide Tipped V-Groove 120 Deg x 1-1/4 Dia x 23/64 x 1/4 Inch Shank 1
45705 Carbide Tipped V-Groove 60 Deg x 1/2 Dia x 7/16 x 1/4 Inch Shank 1
