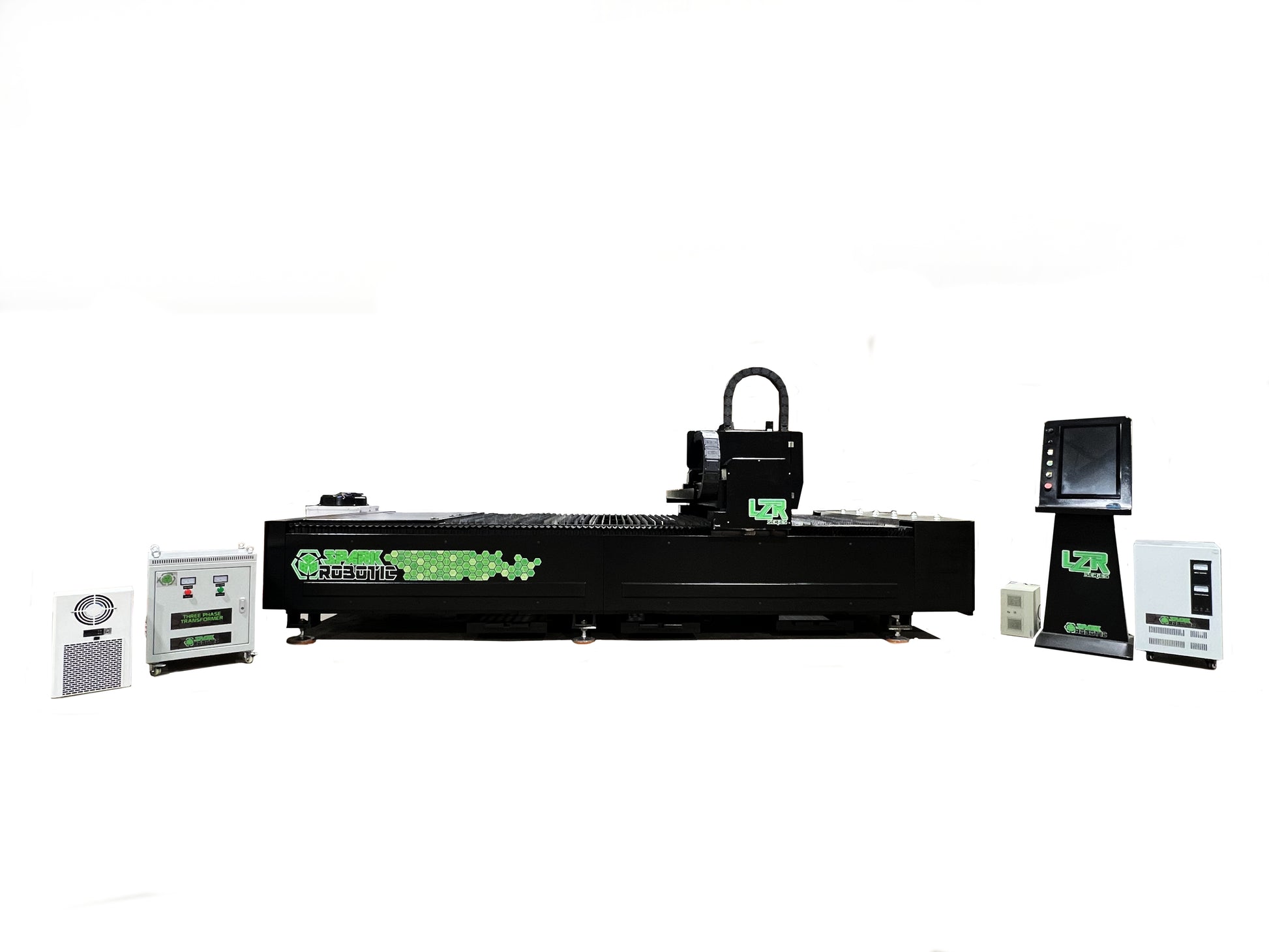

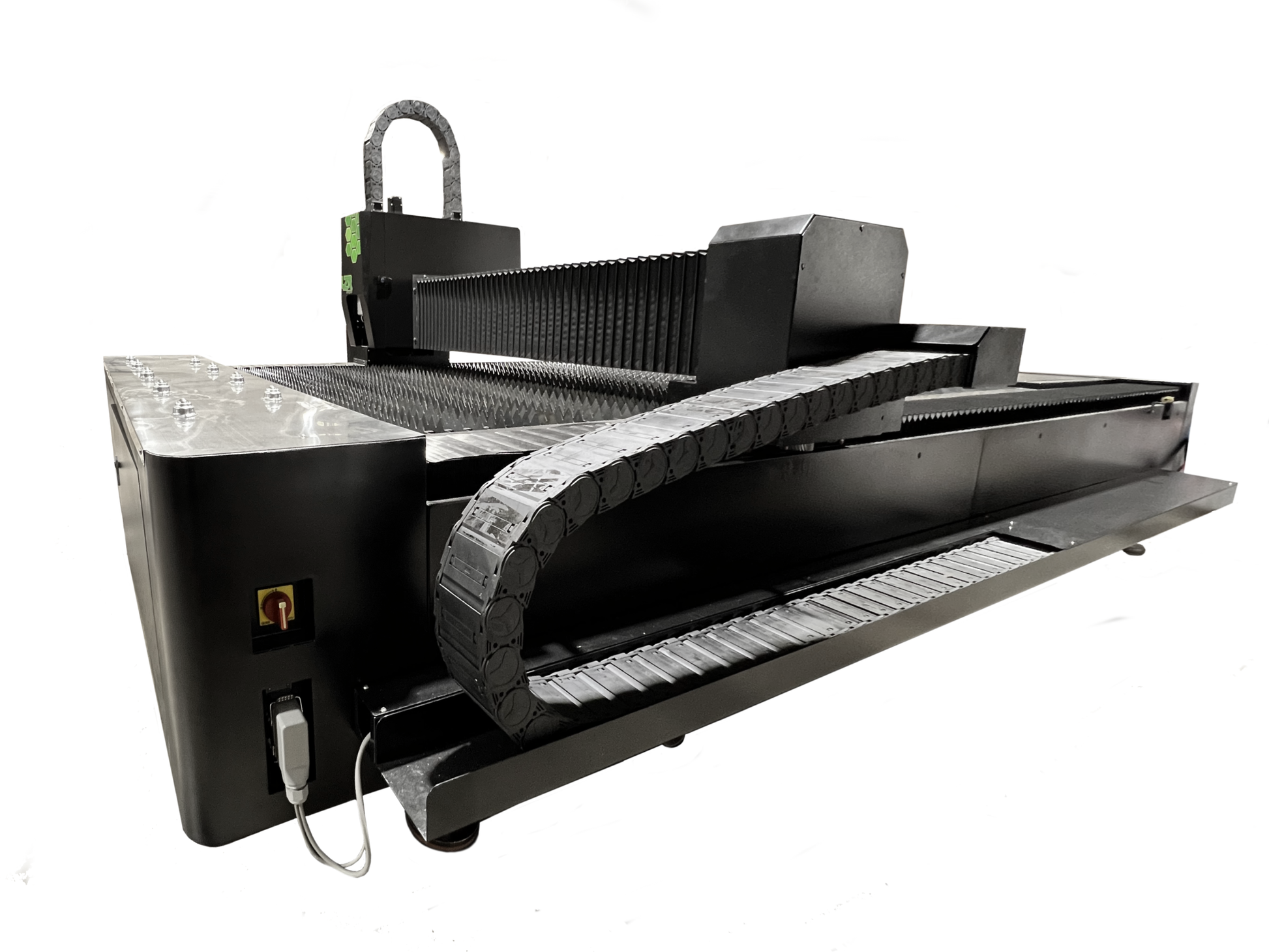

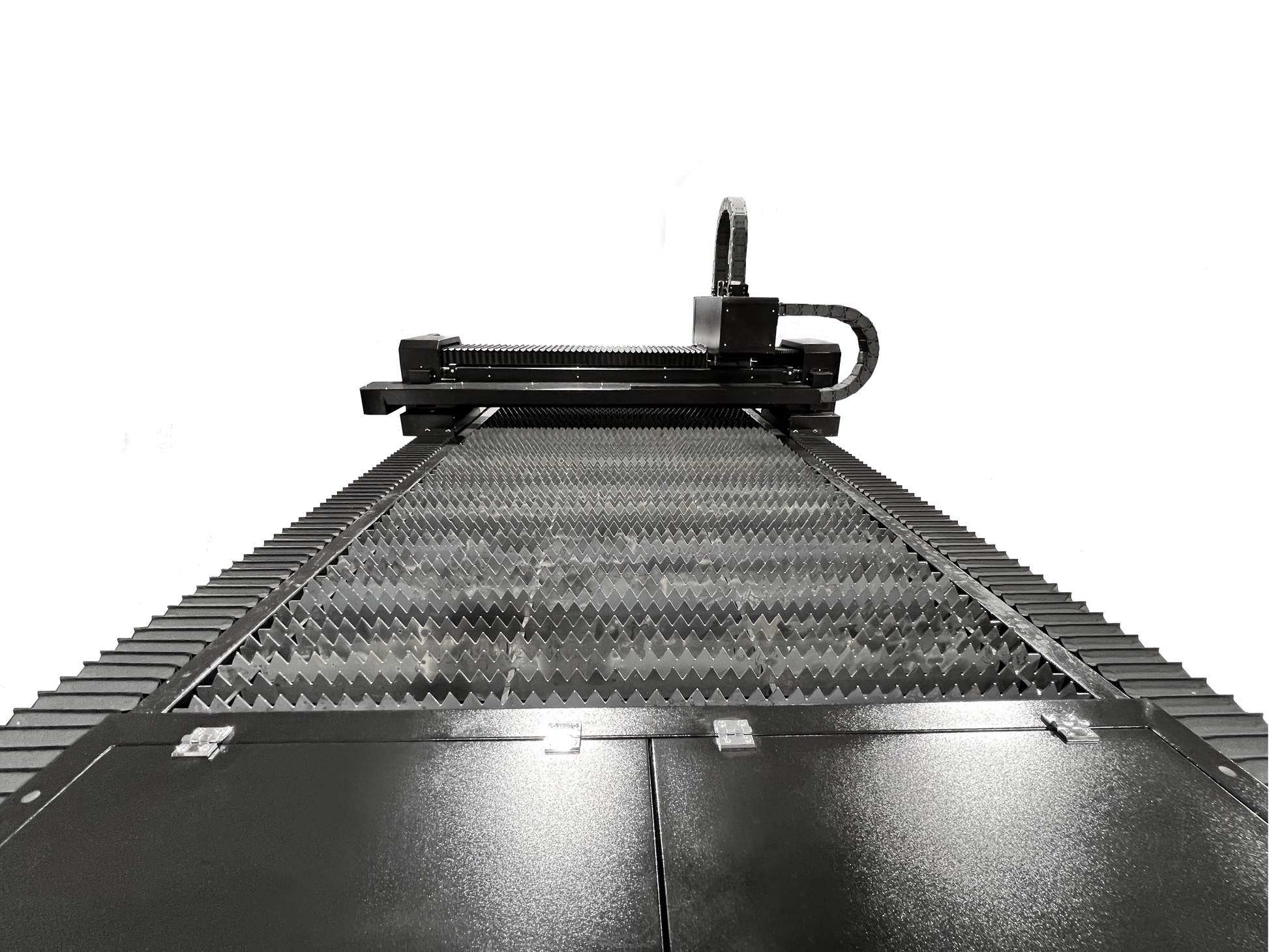

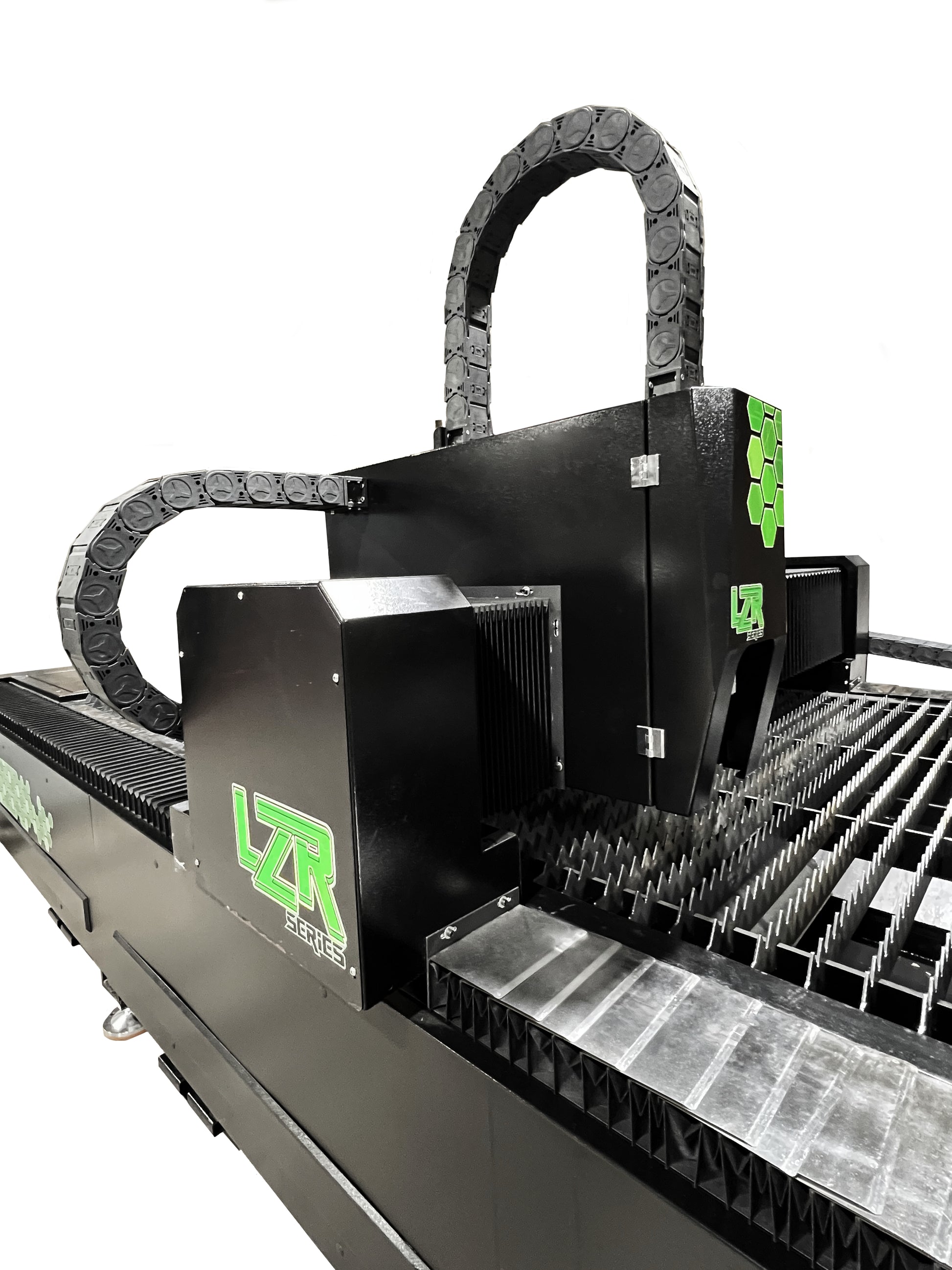

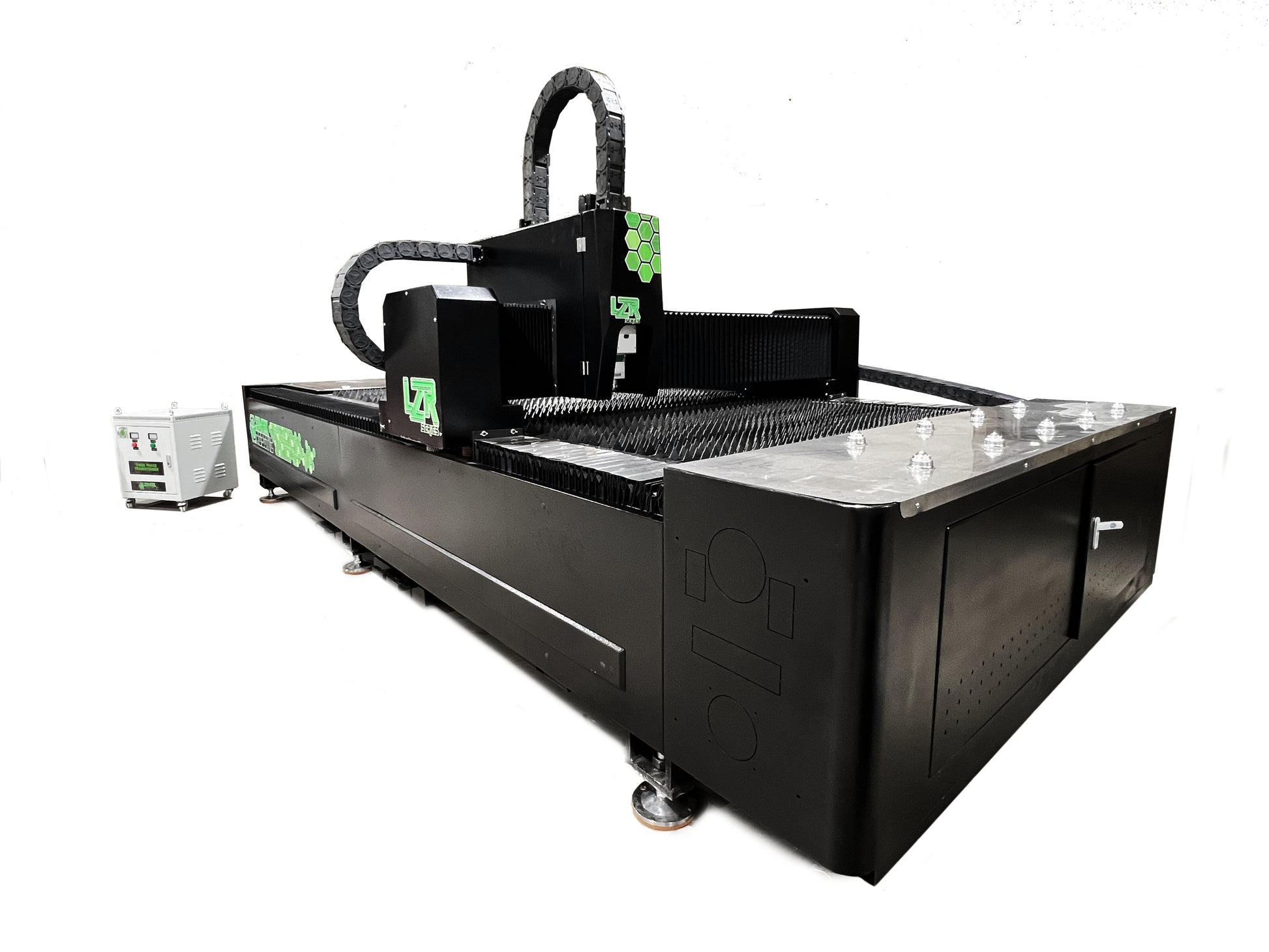

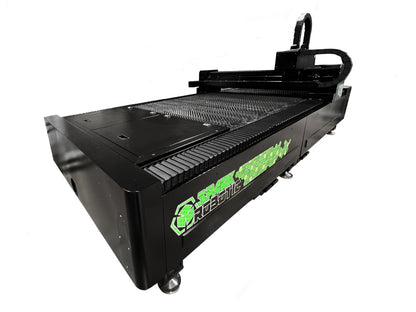

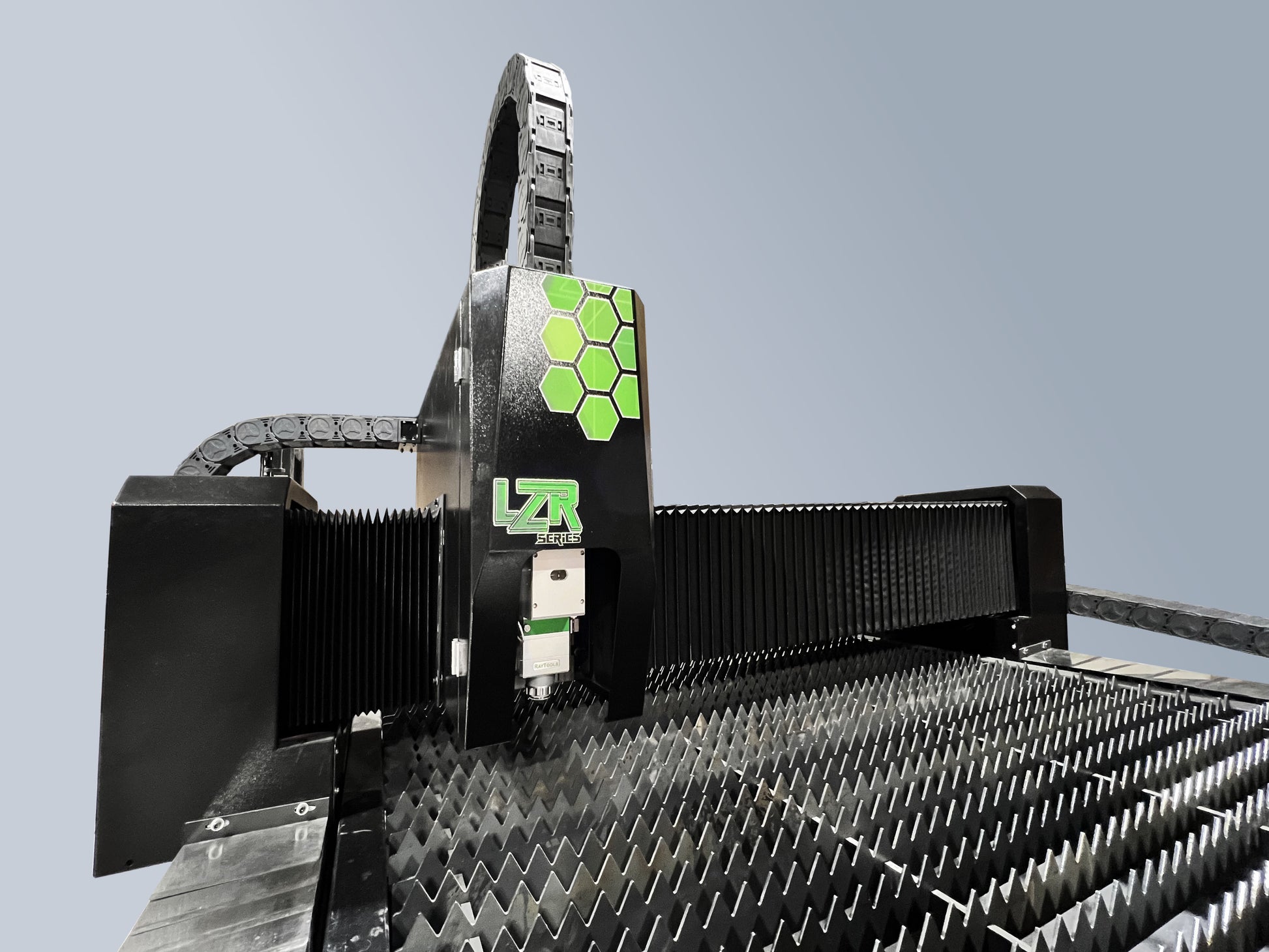

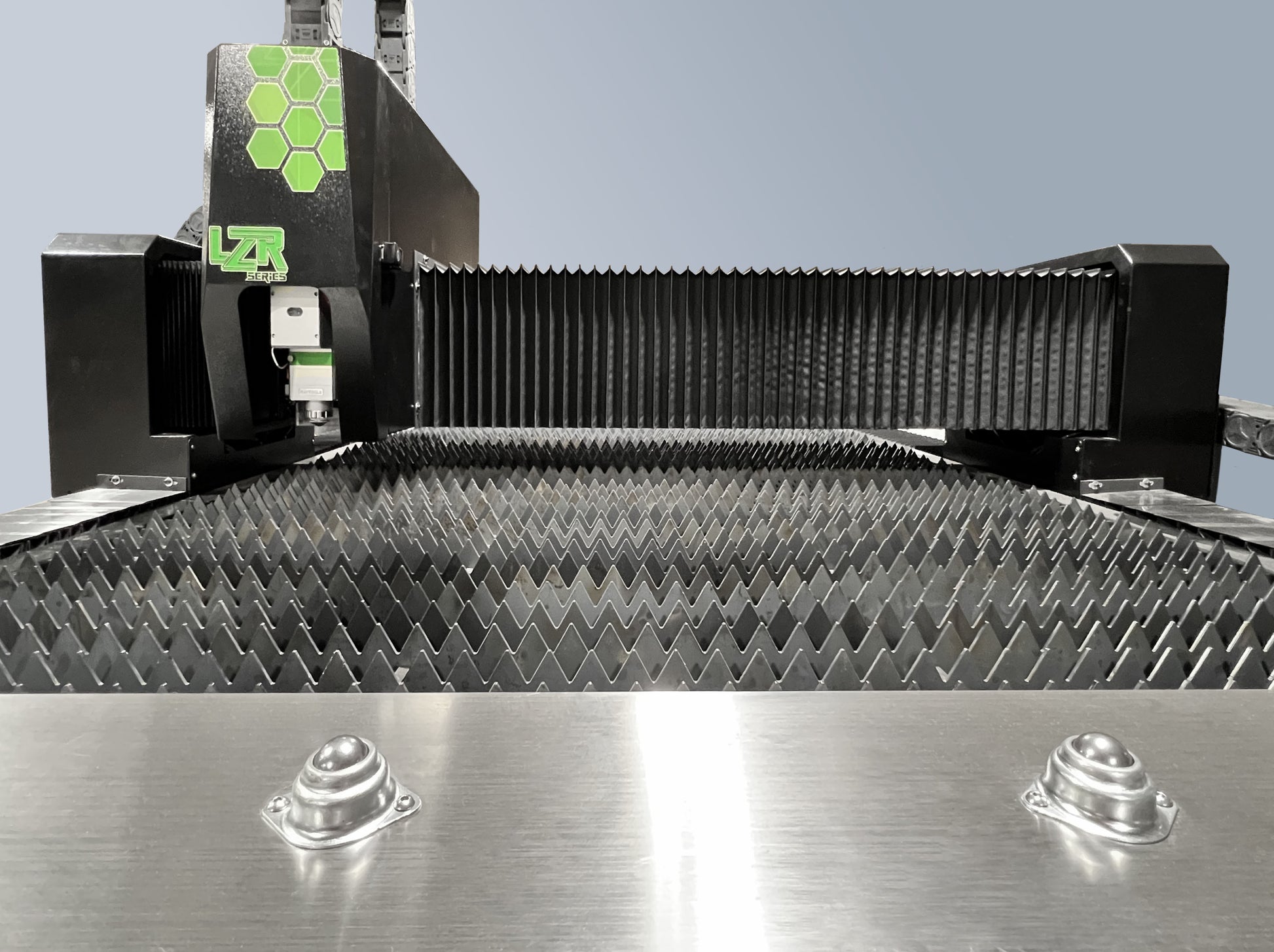

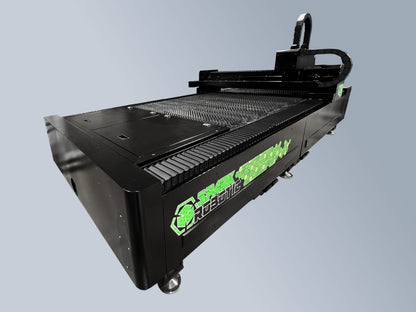

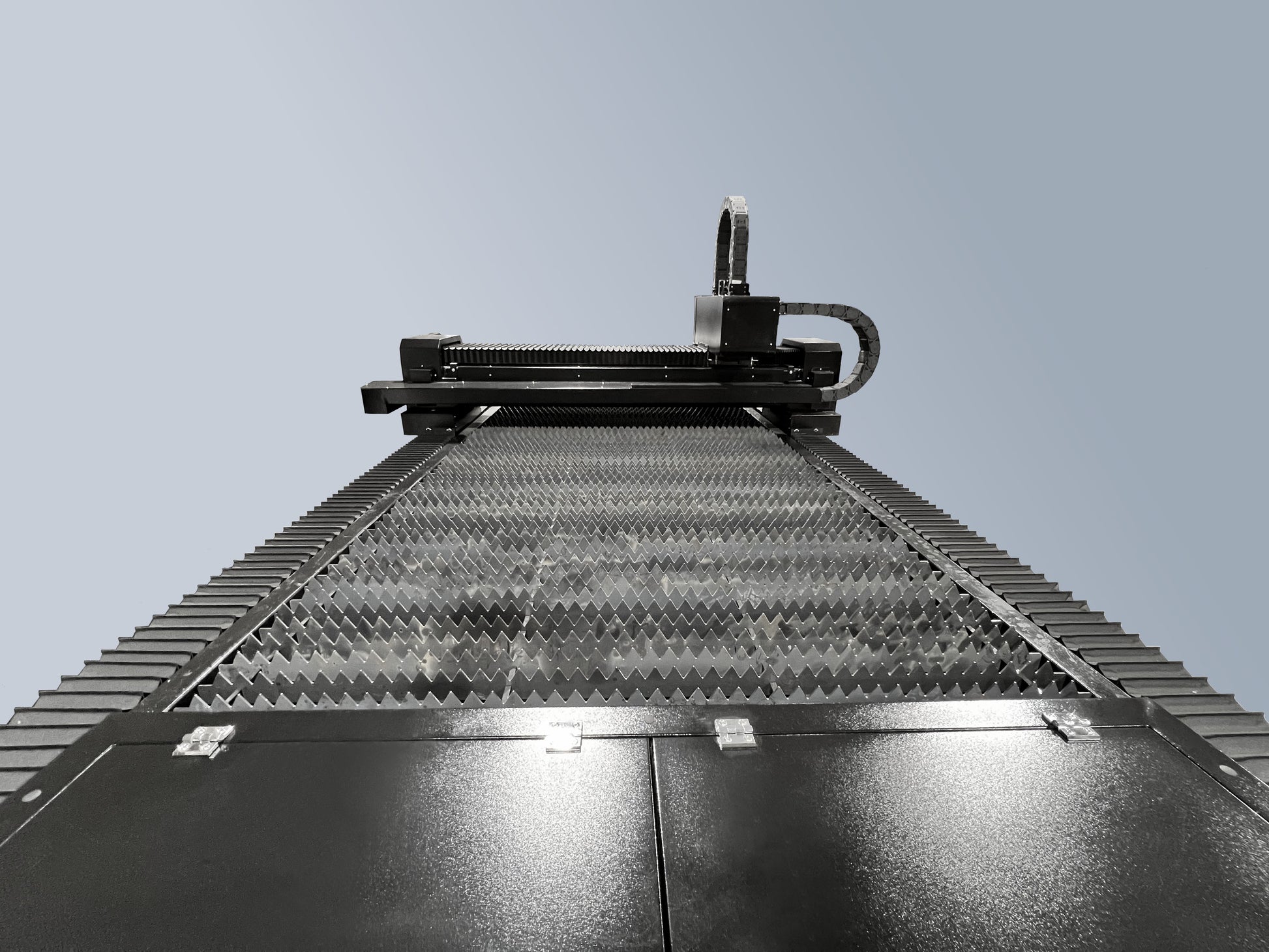

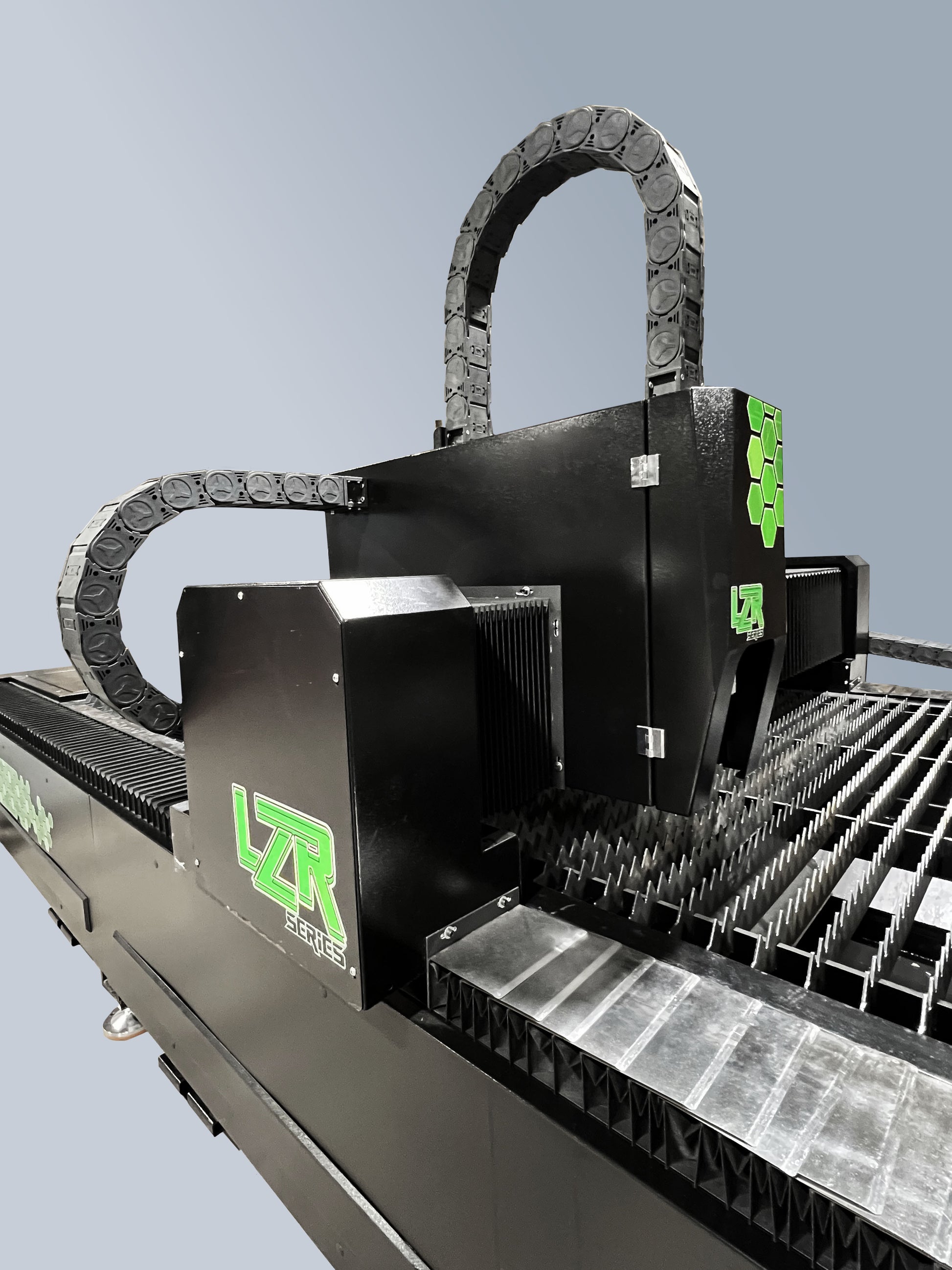

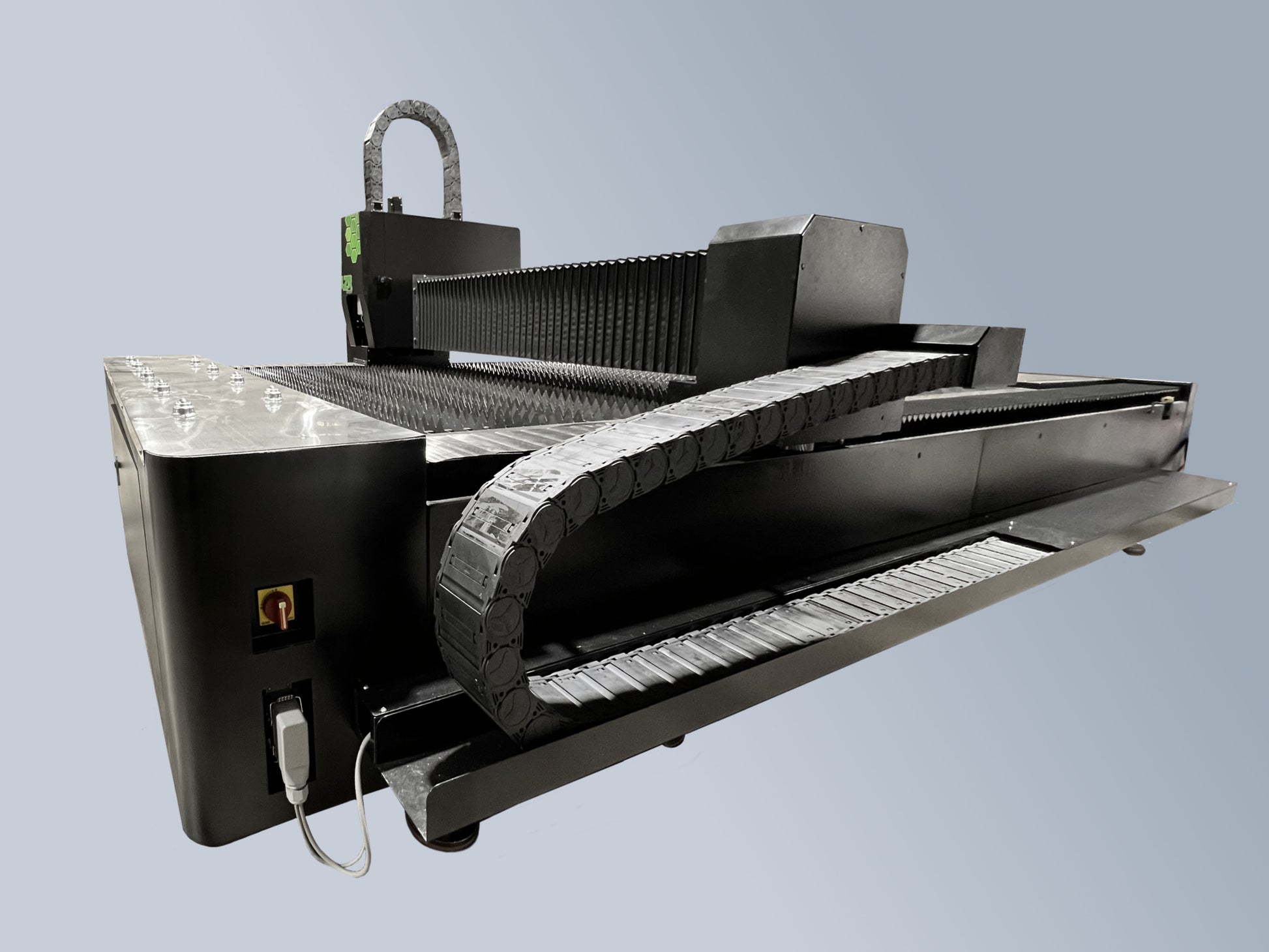

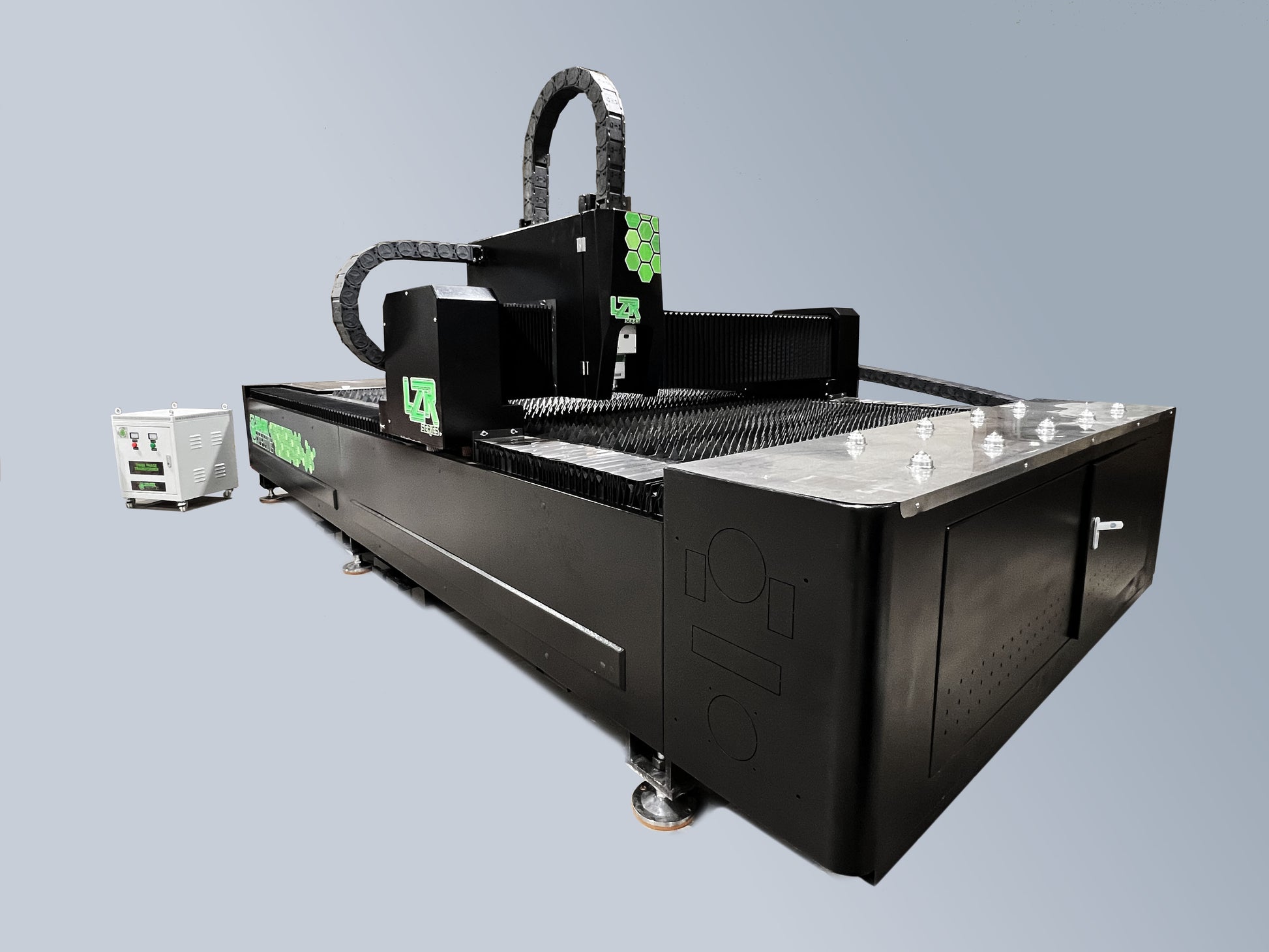

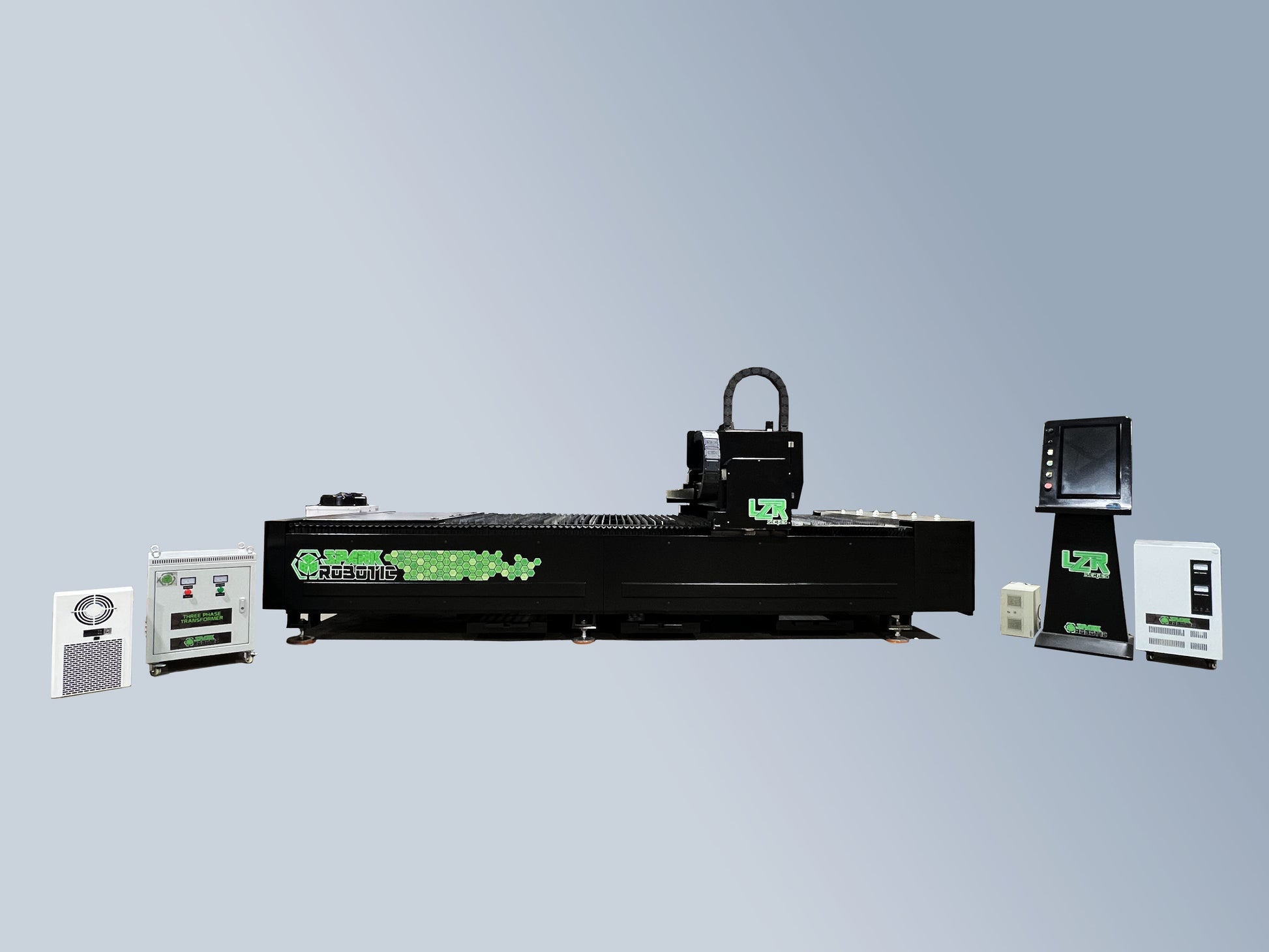

LZR-51 Fiber Laser Cutting Machine

• Max Photronics Source: Options of 1, 2, or 3 kW.
• Dual Servo-Driven Axes: 1300W Delta Servo for the Y-axis and 850W for the X-axis.
• Advanced Z-Axis Control: 400W Delta Servo with integrated brake.

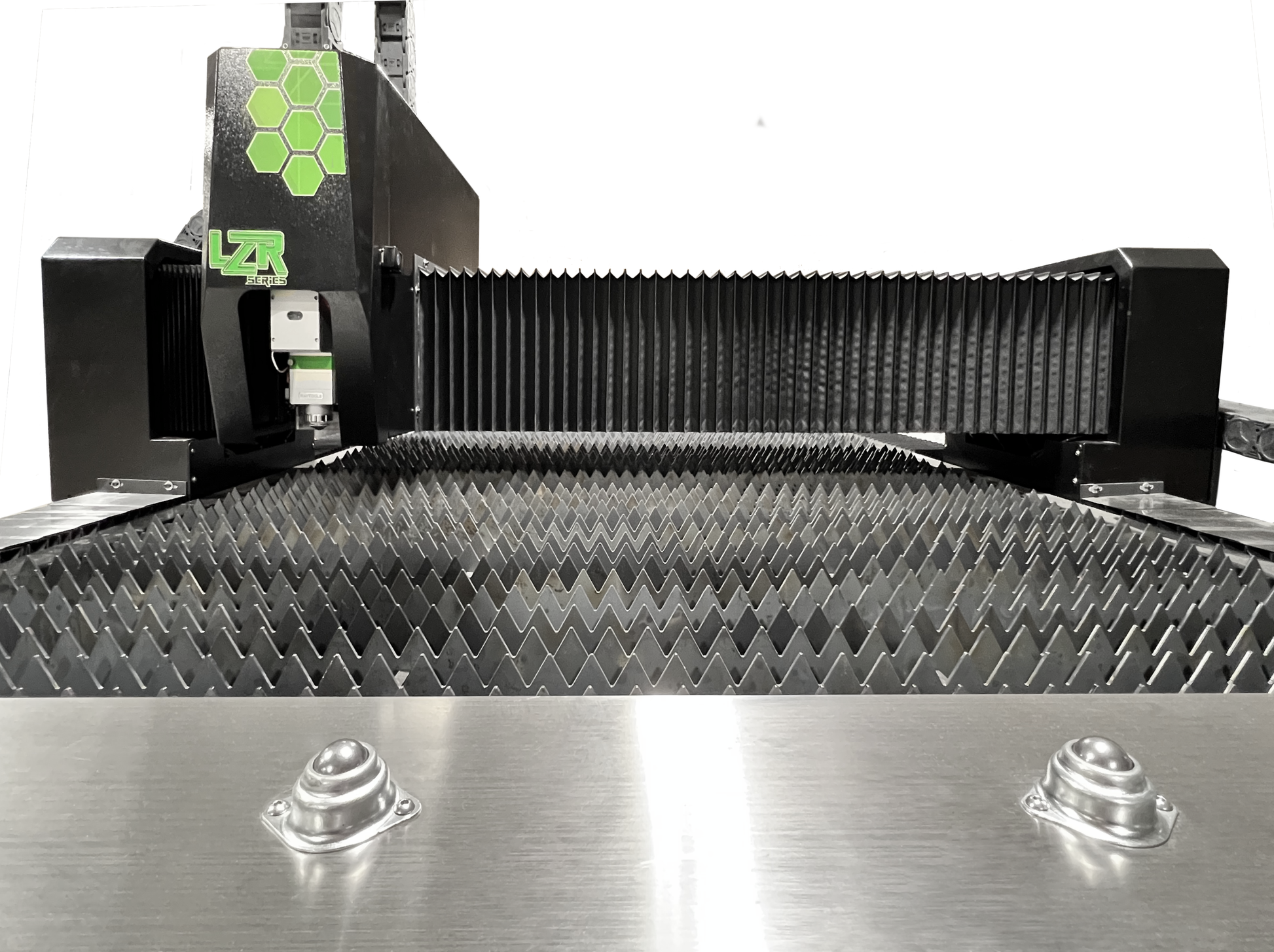

• Hiwin 30 Series Linear Rails: Enhanced with protective bellows.
• Precision Gearboxes: High precision planetary gearboxes with >2 arc-min backlash.
• ROR Helical Rack and Pinion**: Ensuring high precision cutting.
• Sturdy Frame: Heat-treated, unitized machined frame and gantry.

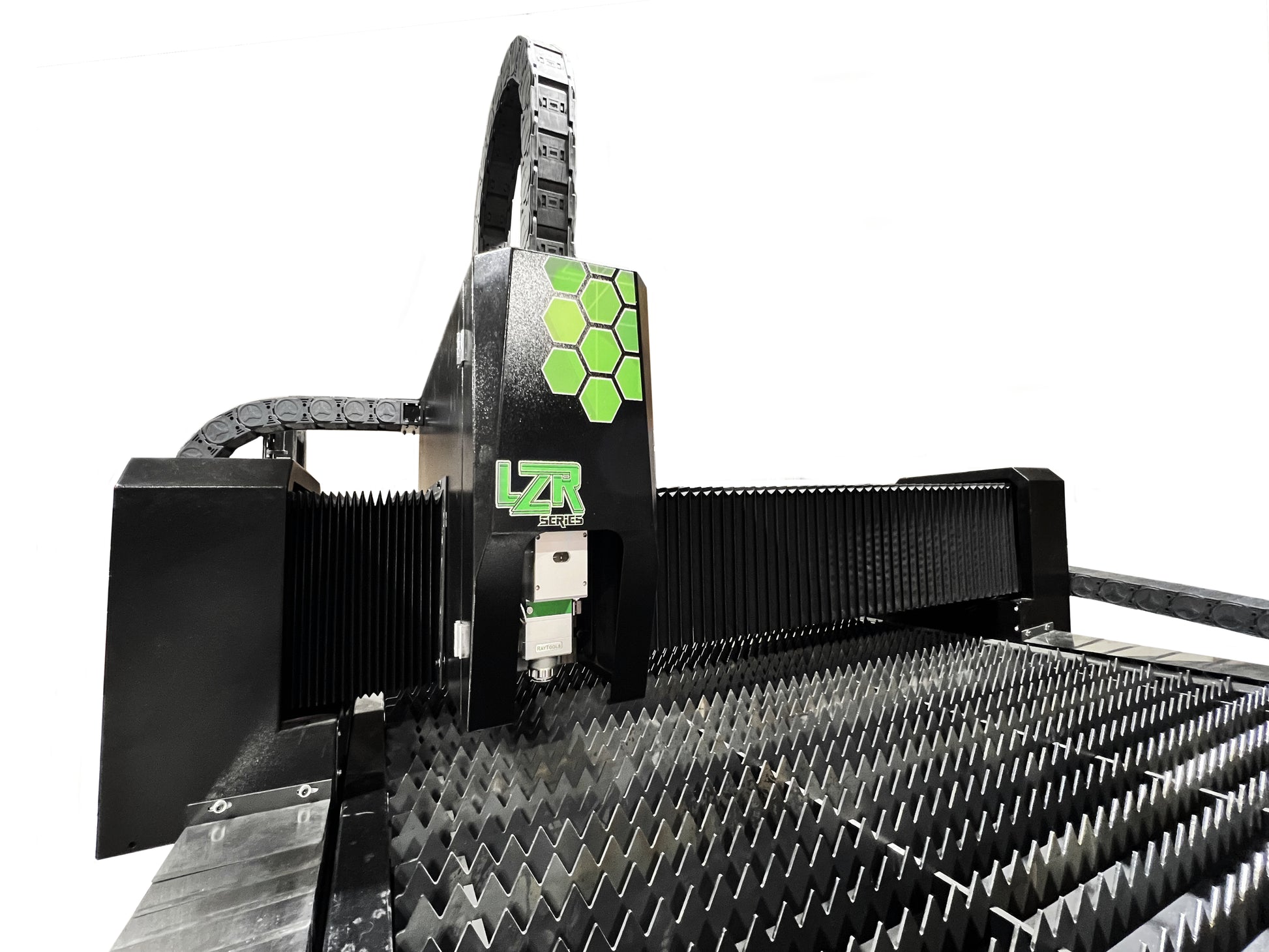

• Bm110 Autofocus Laser Head**.
• Efficient Cooling: 4kW dual stage water chiller.
• High-Speed Height Controller: With capacitance height control and collision detection.
• Integrated Control System: Including CAD computer with Nvidia 4000 series graphics and 24-inch touchscreen controls.
• Stable Support: Heavy-duty leveling feet and easy load plate rollers.

Software Capabilities:

• Cypcut 2000
• Auto Nesting and Integrated CAM.
• Remote Assistance
• Preinstalled CAD

Includes:

• On-Site Setup and Training: A comprehensive 2-day program.
• Consumables Package: Extensive range for immediate use.
• Warranty and Support: Spark Robotics' 2-year industry-leading warranty and lifetime technical assistance.

Physical Specifications:

• Cutting Area: 60 x 120 inches.
• Machine Footprint: 172 inches x 100 inches.
• Weight: 5,500 lbs.
