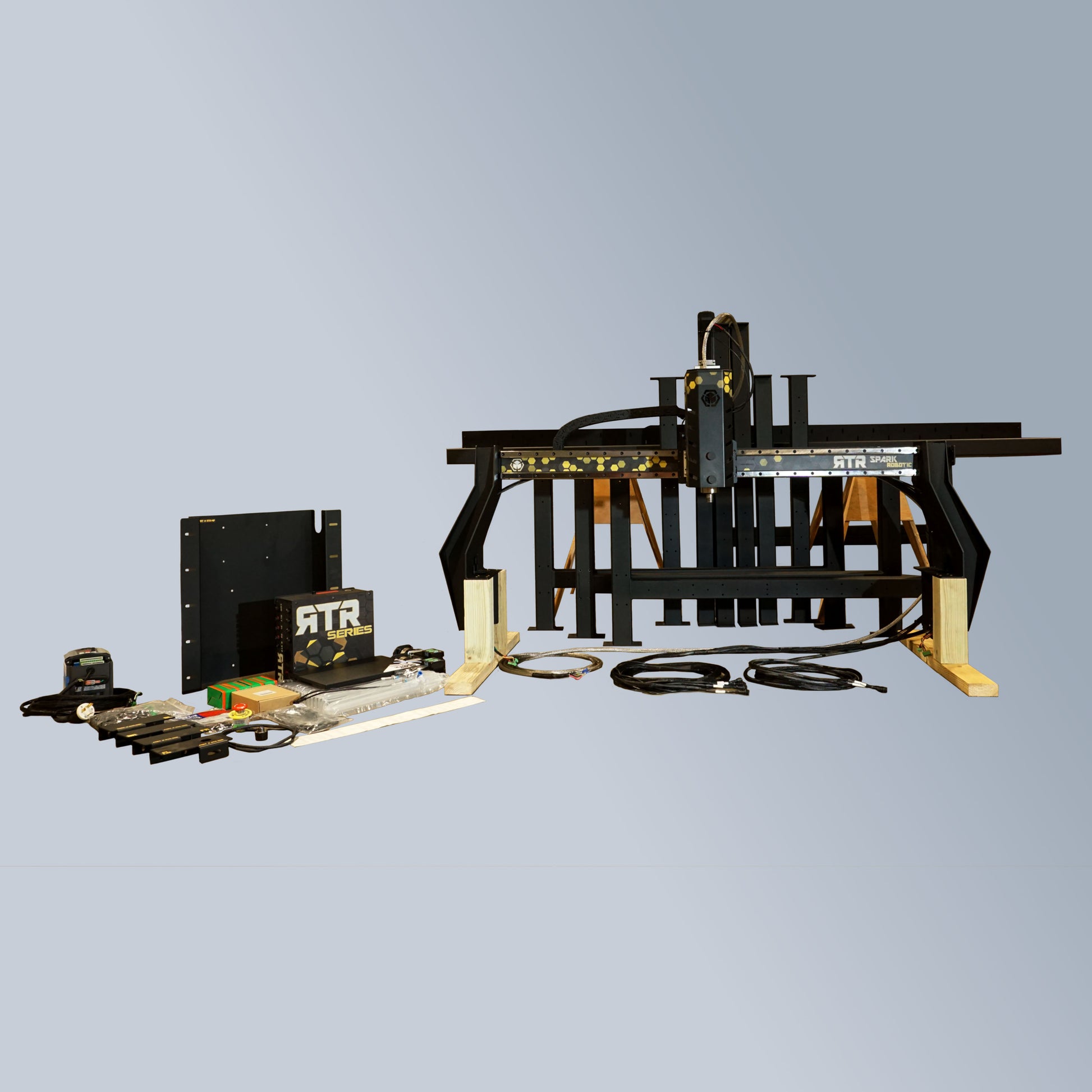

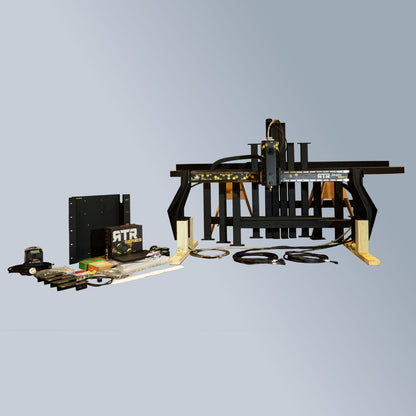

RTR Router Kit

The RTR Router Kit delivers industrial CNC performance in a modular design that's easy to transport, assemble, and install. Designed for shops where access, space, or future flexibility are important, every component is engineered to fit through a standard doorway without sacrificing the rigidity, precision, and reliability expected from a Spark Robotic machine. Whether you're launching a new shop, expanding your capabilities, or upgrading your existing equipment, the RTR Router Kit provides a scalable platform built for long-term performance.

Available Sizes

• 4' × 4'
• 4' × 8'

Standard Features

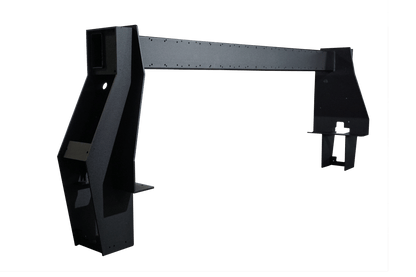

• Fully welded steel gantry
• Closed-loop servo motors
• 3 HP (2.2 kW) ER20 spindle
• Optional American-made 5 HP MTC50 ER32 spindle upgrade
• Fully enclosed electrical control cabinet
• Complimentary Windows 11 control laptop
• PlanetCNC machine control software
• Precision planetary gear reduction drive system
• Rack-and-pinion drive system on the X and Y axes
• Modular design engineered to fit through a standard doorway
• 1 year electrical warranty
• 2 year mechanical warranty
• 1 year spindle warranty
• Lifetime customer support


Optional Upgrade

• High-performance CAD/CAM laptop for advanced design and programming

Installation Recommendations

For proper operation and routine maintenance, we recommend leaving a minimum of 24 inches of clearance on both sides of the gantry. This provides adequate access for servicing, cleaning, and material handling.

For electrical requirements and compatible router accessories, visit our Customer Portal page.
