Spark Robotic

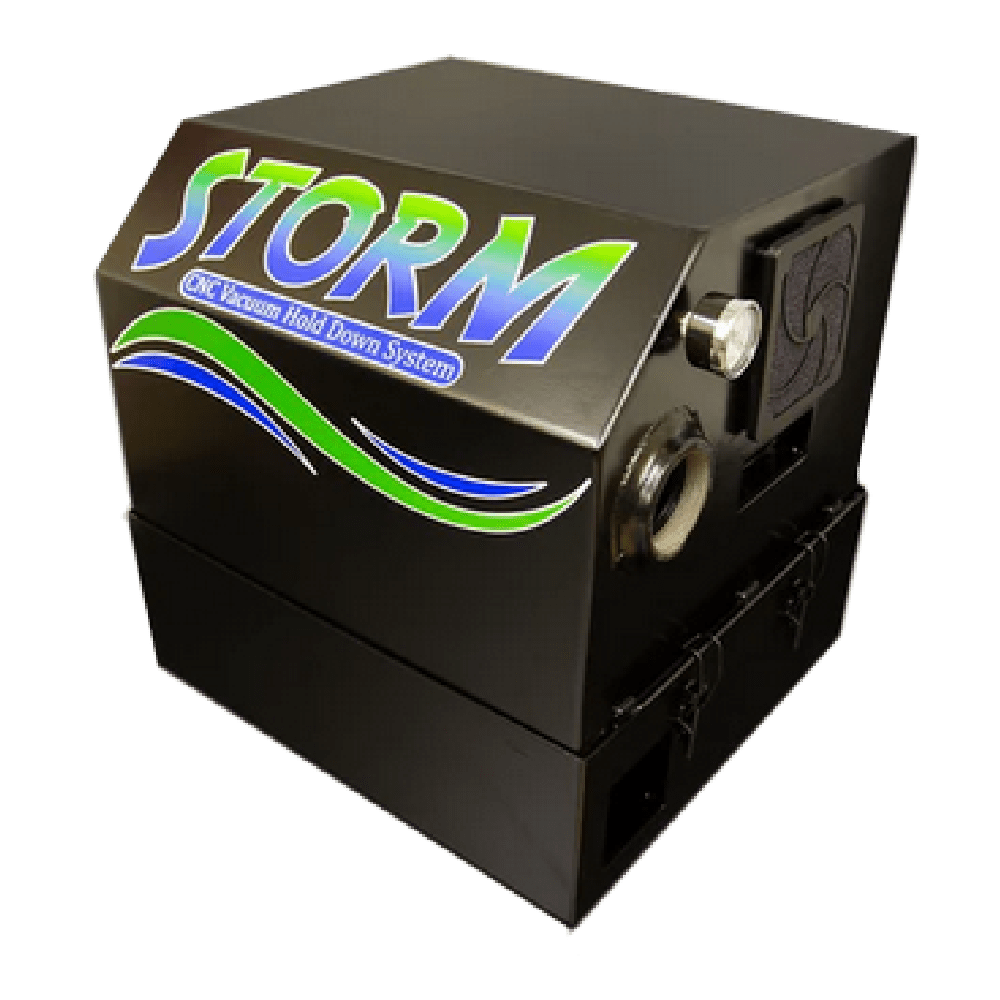

Storm Vacuum System Kit

Storm Vacuum System Kit

Regular price $1,695.00
Regular price Sale price $1,695.00
Sale Sold out
Shipping calculated at checkout.

About

The Storm might as well be called the Super Storm. This single phase vacuum pump comes with 2 powerful vacuum motors working in tandem to produce approximately 9.5-10 inHg of vacuum hold down ability for your cnc router. The system is ideal for table sizes under 4' by 4' (or 16 ft²). Installation is easy and only requires a 220 VAC / 20 A circuit to operate. Simply connect your plumbing and power and you're ready to unleash the power of The Storm with the press of a button!

Note: This is just the pump. Watch the instruction video or see the instruction write up to see what you will need to complete this install on your table. HERE



Specifications


  • ~200 CFM
  • 9.5 - 10 inHg Sealed Vacuum
  • 2" Threaded Steel Intake Port
  • Dimensions: 18.5"x 17.5"x 17.5"
  • NEMA 6-20P Plug (USA and Canada Spec)
  • Single Phase 220 - 240 VAC / 20 Amps
  • 2 Long Life High Performance Vacuum Motors

Features


  • Integrated Vacuum Gauge
  • Durable Powdercoated Finish
  • Integrated Pressure Relief System
  • New Sleek Industrial Solid Steel Design
  • Sound Dampening Base with Exhaust Port
  • Power Switch with Circuit Breaking Technology
  • High Flow Cooling Air System with Replaceable Filter
